- 10 -

PN-2280D

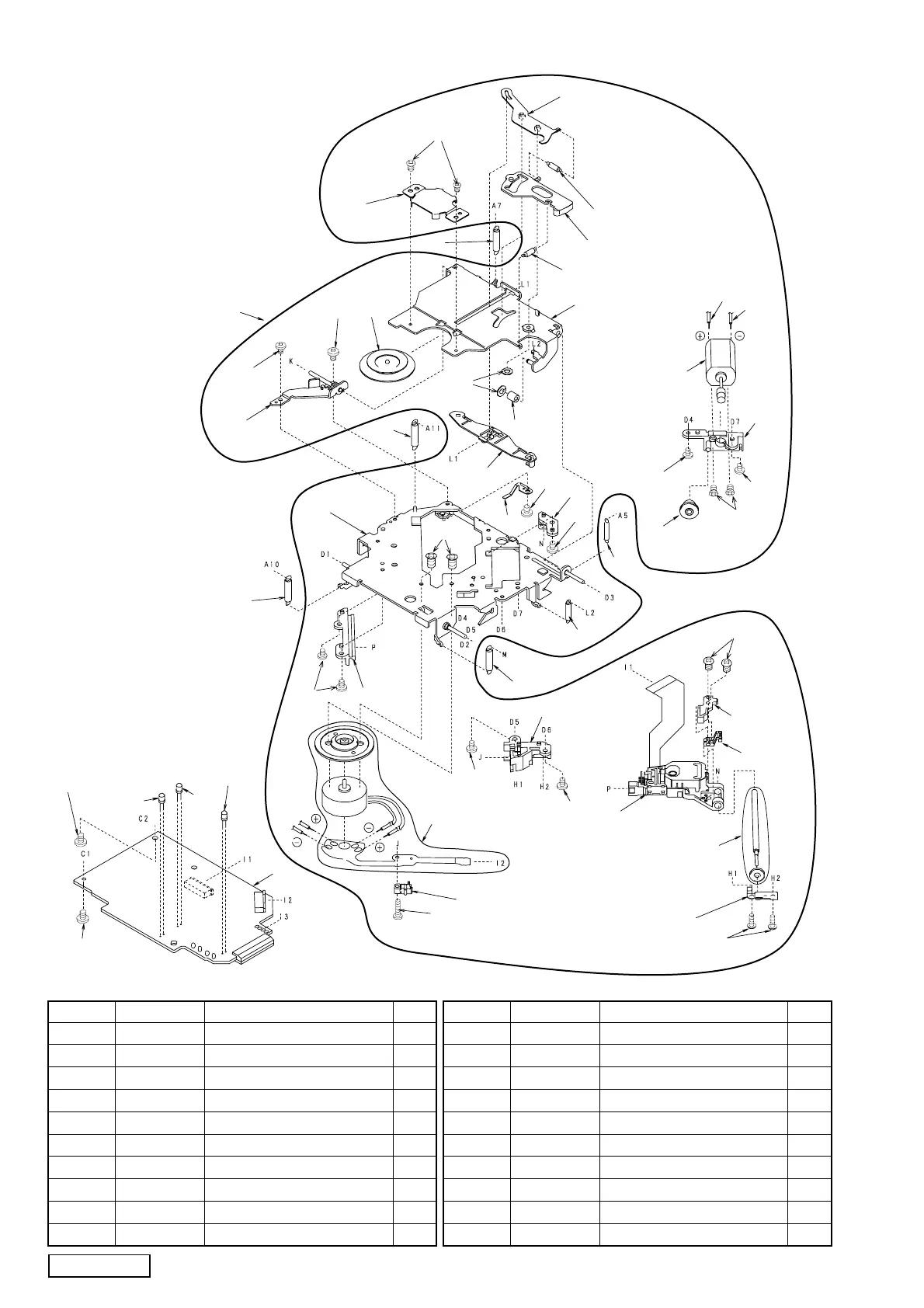

CD mechanism section

1 968-0067-02 DRIVE UNIT ASSY 1

1-1 SMA-151-100 MOTOR ASSY(SPINDLE) 1

1-2 750-3098-00 L-LINK SPRING 1

1-3 716-1468-00 SCREW(M2×2.5) 2

1-4 716-2003-81 SCREW(M2×3) 10

1-5 SMA-146-100 MOTOR ASSY(SLED) 1

1-6 969-0050-03 PICK UP UNIT 1

1-7 HBS-432-100 LS-GEAR ASSY 1

1-8 966-0447-22 DR-PLATE-ASSY 1

1-9 966-0449-22 CLAMP-LINK-ASSY 1



1-27

1-19

1-26

1-7

1-17

1-25

1-29

1-22

1-28

1-4

1-21

1-5

1-35

1-36

1-4

1-24

1-4

1-30

1-15

1-23

1-31

1-9

1-33

1-11

1-2

1-13

1-3

1-12

1-4

1-10

1-14

1-8

1-32

1-20

1-4

1-1

1-4

1-18

1-34

1-6

1-16

1-10 621-0205-02 CLAMPER RING 1

1-11 621-0251-03 LOCK LINK 1

1-12 620-0198-03 CLAMPER PLATE 1

1-13 966-0314-21 STOP LINK-ASSY 1

1-14 966-0448-21 SIDE PLATE-ASSY 1

1-15 621-0252-03 DISC STOPPER 1

1-16 620-0491-03 SPRING PLATE 1

1-17 966-0454-00 SCREW H-RACK-ASSY 1

1-18 621-0358-02 LS-HOLDER-F 1

1-19 013-7100-00 SWITCH(LIMIT) 1

NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
