- 7 -
PN-2280D

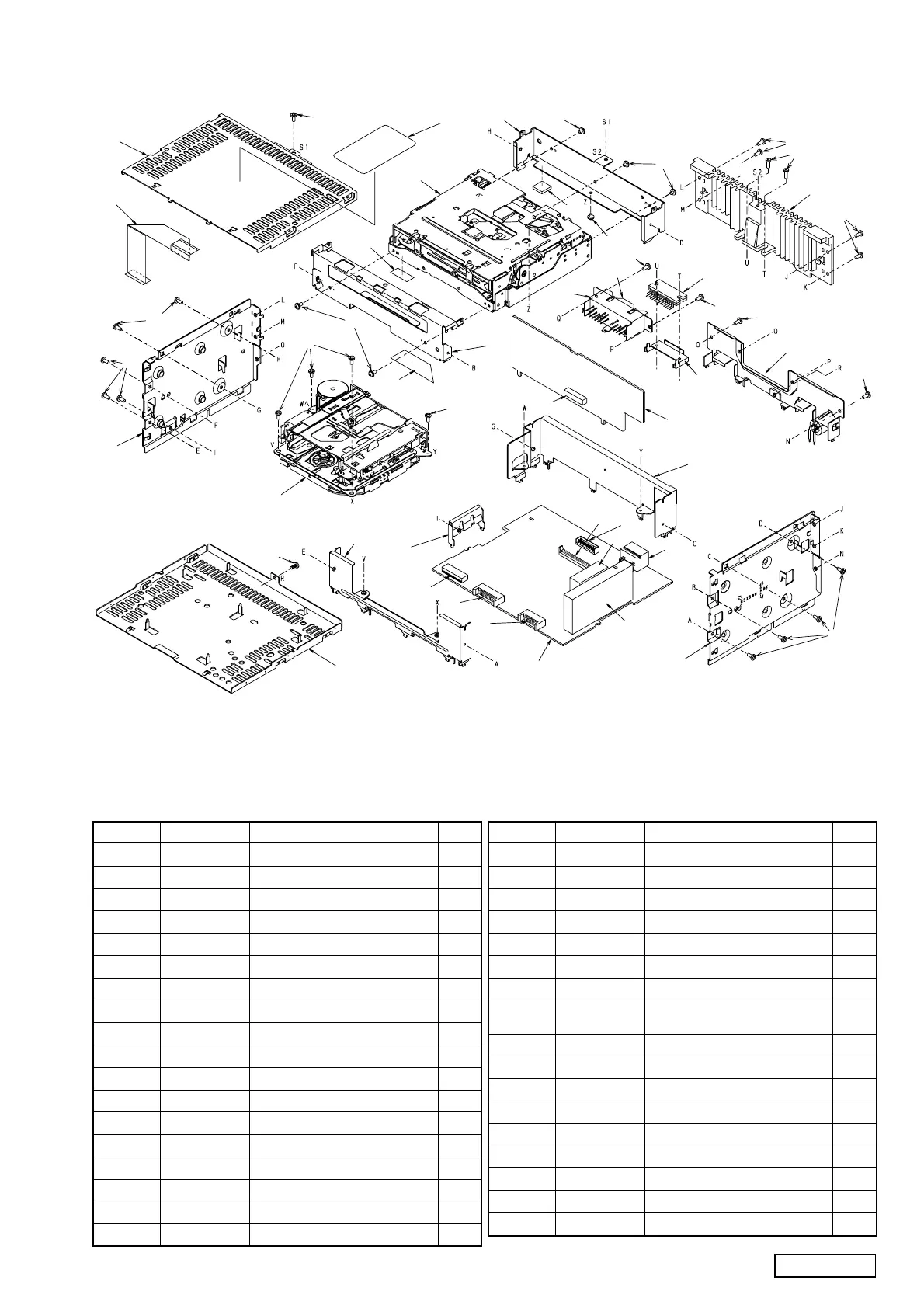

Main section
1 310-1639-00 UPPER CASE 1
2 311-1726-00 LOWER CASE 1
3 305-0263-10 SIDE PLATE(LH) 1
4 305-0264-10 SIDE PLATE(RH) 1
5 309-0697-00 FRONT PLATE 1
6 331-2275-01 MECH-BRKT 1
7 331-2281-01 MECH BRKT(F) 1
8 331-2282-00 MECH BRKT(R) 1
9 331-2270-20 ANT HOLDER 1
10 331-2271-00 OUTLET HOLDER 1
11 331-2301-00 IC HOLDER 1
12 331-2272-00 TR HOLDER 1
13 313-1712-00 HEAT SINK 1
14 816-2447-00 FLAT CABLE 1
15 930-0790-02 TAPE-MECHANISM 1
16 929-0068-02 CD-MECHANISM 1
17 074-1185-00 OUTLET SOCKET 1
18 051-2023-01 IC(TA8260AH) 1
19 880-1517E TUNER PACK(AM) 1
20 074-1013-00 OUTLET SOCKET(12P) 1
21 074-1186-18 OUTLET SOCKET(18P) 1
22 076-0540-16 PLUG(16P) 1
23 076-0540-12 PLUG(12P) 1
24 076-0368-20 PLUG(20P) 1
25 074-0898-20 OUTLET SOCKET(20P) 1
26 039-1459-10 MAIN PWB 1
(WITHOUT COMPONENT)
27 345-4138-00 SPACER 1
28 714-2606-81 MACHINE SCREW(M2.6×6) 23
29 714-2612-81 MACHINE SCREW(M2.6×12) 2
30 714-2303-81 MACHINE SCREW(M2.3×3) 6
31 076-0461-20 PLUG(20P) 1
32 347-2022-02 SHADE 1
33 347-5679-02 DOUBLE FACE 1
34 286-8153-25 SETPLATE 1
35 880-1726E TUNER PACK(FM) 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
2
28
5
12
21
22
23
26
35
4
28
28
9
11
28
28
18
28
13
29
28
30
30
8
34
16
28
1
14
28
28
3
15
28
33
7
30
28
32
30
27
10
17
28
25
26
31
24
19
20
6
