- 6 -
PN-2280D

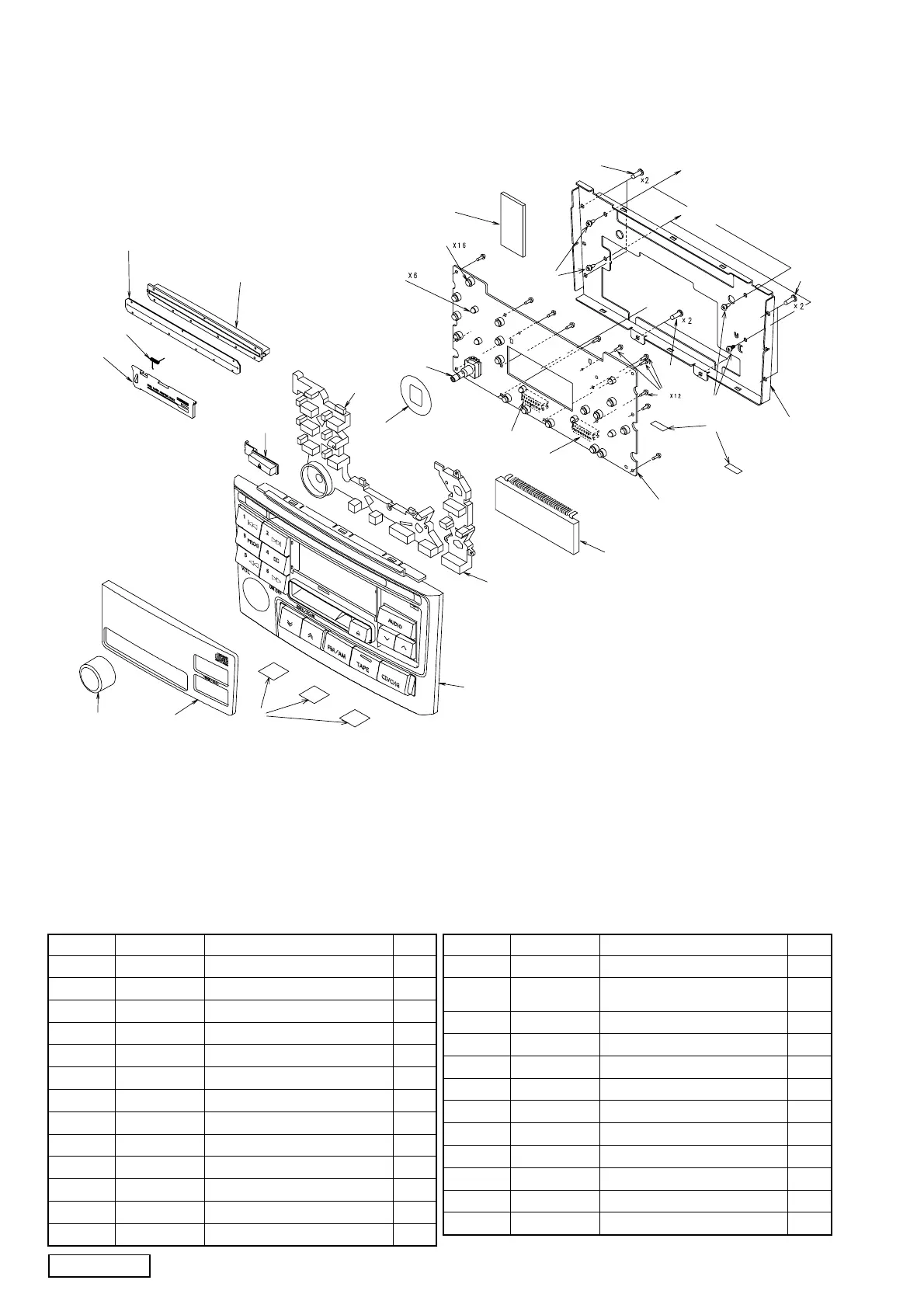

■EXPLODED VIEW・PARTS LIST
Escutcheon section
1 940-7866-00 ESCUTCHEON-ASSY 1
2 347-6075-00 SPACER 2
3 347-5985-00 COLOR PAPER 1
4 347-5961-02 SILENCER 3
5 716-1553-00 P-TIGHT SCREW(3×8) 6
6 714-2606-81 MACHINE SCREW(M2.6×6) 4
7 331-2624-00 ESCUTCHEON PLATE 1
8 716-0778-00 WAVE SCREW(2×6) 12
9 345-8090-00 CUSHION RUBBER 1
10 074-1151-16 OUTLET SOCKET(16P) 1
11 379-4023-20 INDICATOR 1
12 013-6200-60 TACT SWITCH 16
13 017-0420-28 PILOTLAMP(14V40mA) 6
14 016-0010-08 VARIABLE RESISTOR 1
15 039-1457-00 DISPLAY PWB 1
(WITHOUT COMPONENT)
16 335-5989-00 DISC GUIDE 1
17 346-0112-00 LEATHER SHEET 1
18 382-5346-00 BUTTON 1
19 335-5975-00 ILLUMI-PLATE L 1
20 335-5976-00 ILLUMI-PLATE R 1
21 373-0904-01 DIAL COVER 1
22 380-5434-00 KNOB 1
23 320-0529-84 DUSTPROOF COVER 1
24 750-2626-00 SPRING 1
25 074-1151-12 OUTLET SOCKET(12P) 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
to M ain section
to M ain section
17
16
24
23
18
22
21
4
1
20
11
15
10
25
2
7
6
5
8
5
6
5
9
13
12
14
19
3
To Next Page
