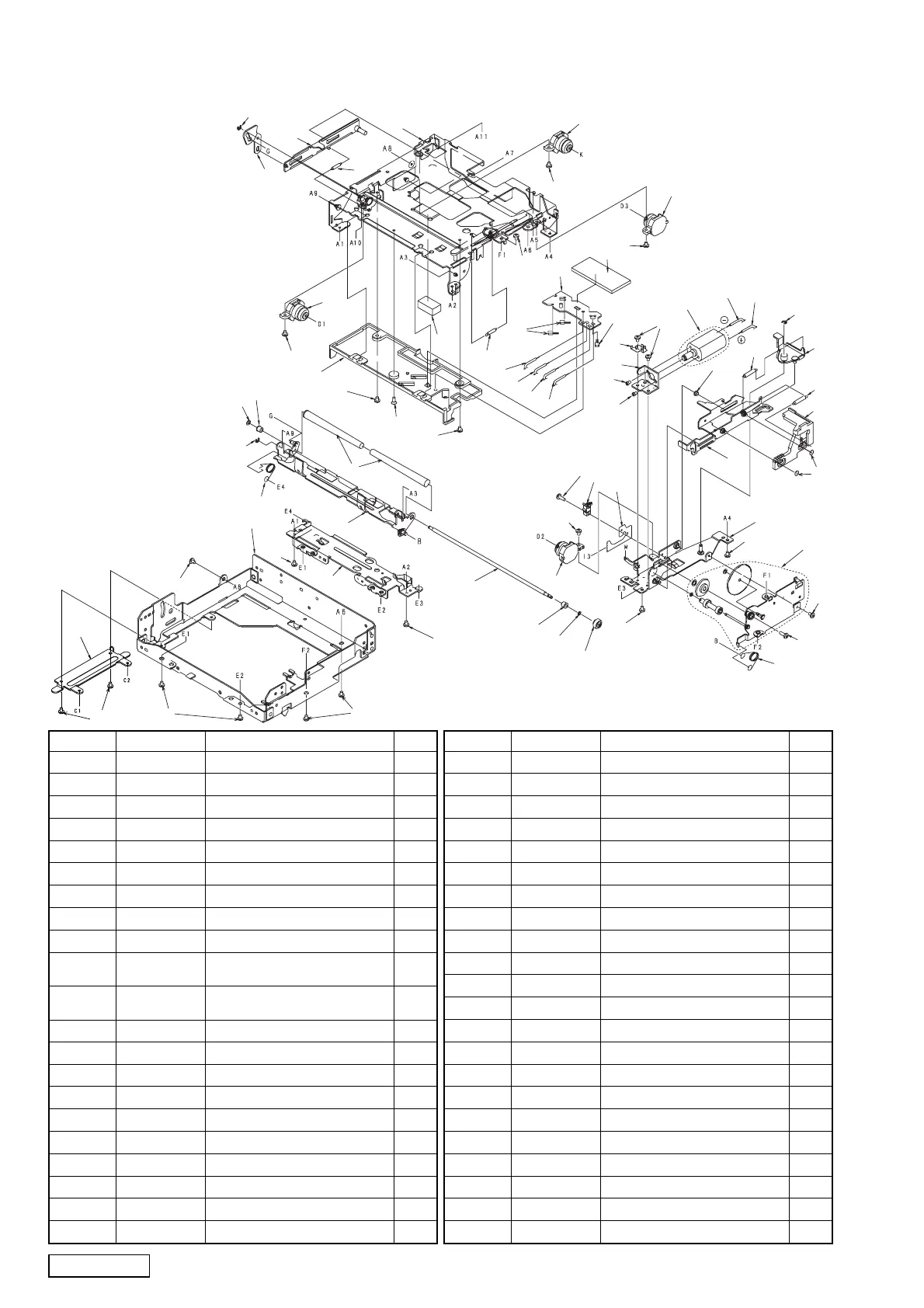

CD mechanism:Mechanism chassis section
929-0095-50
22
50
16
1
35
39
25
37
51
24
44
32
17
6
39
27
49
32
51
32
51
14
12
50
7
26
19
39
33
47
5
28
30
36
3
2
50
10
8
41
51
32
45
48
50
25
38
31
50
34
42
50
4
46
46
20
23
15
21
9
29
12
13
44
43
40
50
11
18
48
48
50
52
1 966-0309-23 L-DISC-G-ASSY 1
2 966-0310-41 SHIFT-P-CH-ASSY 1
3 HBS-430-100 GEAR PALTE ASSY 1
4 966-0312-41 SHIFT PLATE ASSY 1
5 966-0358-41 DRIVE-L ASSY 1
6 966-0359-41 SIDE-L PLATE ASSY 1
7 SMA-147-100 MOTOR ASSY(LOADING) 1
8 013-3879-01 CHUCKING SWITCH 1
9 804-4910-60 LEAD WIRE(YEL) 1
10 039-0586-50 CHUCKING SWITCH PWB 1
(WITHOUT COMPONENT)
11 039-0588-01 SENSOR PWB 1
(WITHOUT COMPONENT)
12 060-0252-01 PHOTO TR 3
13 345-7513-01 CLAMPER SHEET 1
14 345-7514-00 SENSOR PWB SHEET 1
15 802-4910-60 LEAD WIRE(RED) 1
16 620-0485-20 FRONT PLATE 1
17 620-0488-40 S-L LINK PLATE 1
18 620-0489-40 MOTOR PLATE 1
19 802-4904-60 LEAD WIRE(RED) 1
20 620-0492-20 MOTOR BRACKET 1
21 801-4910-60 LEAD WIRE(BRN) 1
22 620-0773-40 CD MECHA. BRKT 1
23 800-4910-60 LEAD WIRE(BLK) 1
24 621-0402-50 U-DISC GUIDE-F 1
25 621-0243-50 ROLLER SLEEVE 2
26 800-4904-60 LEAD WIRE(BLK) 1
27 750-3189-00 SIDE-L SPRING 1
28 750-3098-00 L-LINK SPRING 1
29 750-3094-00 S ARM SPRING 1
30 621-0248-51 RACK GEAR 1
31 621-0249-50 ROLLER GEAR 1
32 629-0079-00 DAMPER 4
33 750-3092-03 SHIFT SPRING 1
34 750-3091-03 LOADING SPRING-R 1
35 750-3090-02 LOADING SPRING-L 1
36 746-0877-02 WASHER 2
37 746-0762-00 WASHER 1
38 746-0712-03 WASHER 1
39 743-1500-10 E-RING 3
40 621-0258-97 LOADING ROLLER 2
41 716-1742-00 SCREW(M2×5) 1
42 716-1704-00 SCREW(M2×7) 1
43 716-1677-00 SCREW(M2×5) 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
To Next Page
