- 9 -
PU-2354A
44 716-1507-00 SCREW(M2×3) 2
45 622-1072-05 ROLLER SHAFT 1
46 716-1468-00 SCREW(M2×2.5) 2
47 622-1219-01 SHIFT ROLLER 1
48 714-2603-81 SCREW(M2.6×3) 5
49 966-0308-43 CHASSIS ASSY 1
50 714-2003-81 SCREW(M2×3) 10
51 716-1670-00 SCREW(M2×4) 4
52 620-0980-00 PWB PLATE 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

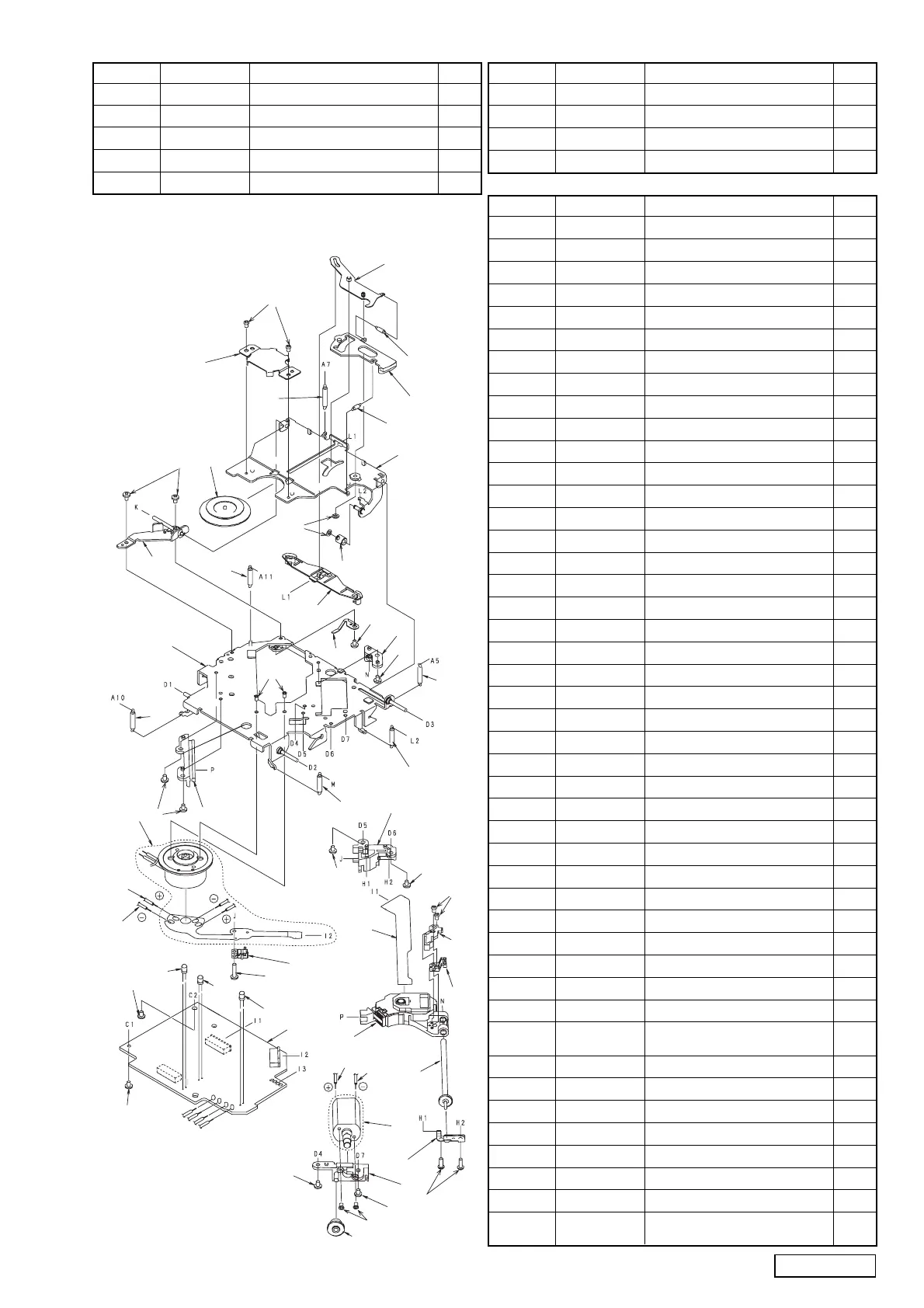

Drive unit section
3
13
2
11
33
9
40
31
23
15
4
24
30
41
4
34
18
44
4
4
45
29
25
17
6
7
36
35
5
16
21
26
4
28
22
4
39
39
38
36
38
38
27
19
37
35
1
4
20
43
8
14
42
4
10
12
32
1 SMA-151-100 MOTOR ASSY(SPINDLE) 1
2 750-3098-00 L-LINK SPRING 1
3 716-1468-00 SCREW(M2×2.5) 2
4 714-2003-81 SCREW(M2×3) 10
5 SMA-146-100 MOTOR ASSY(SLED) 1
6 969-0008-12 PICK UP UNIT 1
7 HBS-432-100 LS-GEAR ASSY 1
8 966-0447-42 DR-PLATE ASSY 1
9 966-0449-42 CLAMP LINK ASSY 1
10 621-0205-02 CLAPMER RING 1
11 621-0251-50 LOCK LINK 1
12 620-0198-40 CLAMPER PLATE 1
13 966-0314-41 STOP LINK ASSY 1
14 966-0448-41 SIDE PLATE ASSY 1
15 621-0252-50 DISC STOPPER 1
16 620-0491-40 SPRING PLATE 1
17 966-0454-40 SCREW H-RACK ASSY 1
18 621-0358-50 LS HOLDER-F 1
19 013-7100-00 SWITCH(LIMIT) 1
20 621-0357-03 PICK UP GUIDE 1
21 621-0253-50 MOTOR HOLDER 1
22 621-0255-02 SECOND GEAR 1
23 622-1073-02 CLAMPER ROLLER 1
24 621-0359-50 LS OLDER-R 1
25 621-0375-50 SH-BASE 1
26 716-0675-00 SCREW(M2×5.5) 2
27 716-1555-00 WAVE SCREW(Φ2×8) 1
28 732-2004-11 SEMS SCREW(M2×4) 2
29 739-1735-17 SCREW(M1.7×3.5) 2
30 620-0690-01 RATTLE PLATE 1
31 746-0761-00 WASHER 2
32 716-1733-00 SCREW(M1.7×2.3) 2
33 750-3099-00 ES SPRING 1
34 750-3422-00 CLAMPER SPRING 1
35 816-2373-00 LEAD WIRE(WHT) 1
36 816-2372-00 LEAD WIRE(BLU) 1
37 039-1901-00 CD PWB 1
(WITHOUT COMPONENT)
38 001-0563-00 LED 3
39 716-1670-00 SCREW(M2×4) 2
40 750-3202-00 CENTER SPRING-B 1
41 750-3096-01 DR SPRING-R 1
42 750-3164-00 DR SPRING-LR 1
43 750-3188-00 DR SPRING-F-B 1
44 750-3201-00 DR SPRING-F-R 1
45 039-1768-00 FLEX PWB 1
(WITHOUT COMPONENT)
NO. PART NO. DESCRIPTION Q'TY
To Next Page
