4. CAUTIONS ON INSTALLATION
1. Prepare all articles necessary for installing the
main unit before starting.
2. This model features an operation panel that
slides forward.
On some types of cars, the operation panel
may make contact with the dashboard or
gearshift lever, in which cause it cannot be
installed. Before installing, check that the unit
will not hamper operation of the gearshift lever
or obstruct your view before selecting the
installation location. (Figure 2)
3. Install the unit within 30 of the horizontal
plane. (Figure 3)
4. If you have to do any modification on the car
body, such as drilling holes, consult your car
dealer beforehand.
Dashboard
Gearshift lever
Shift lever
(check that it does not touch the LCD)

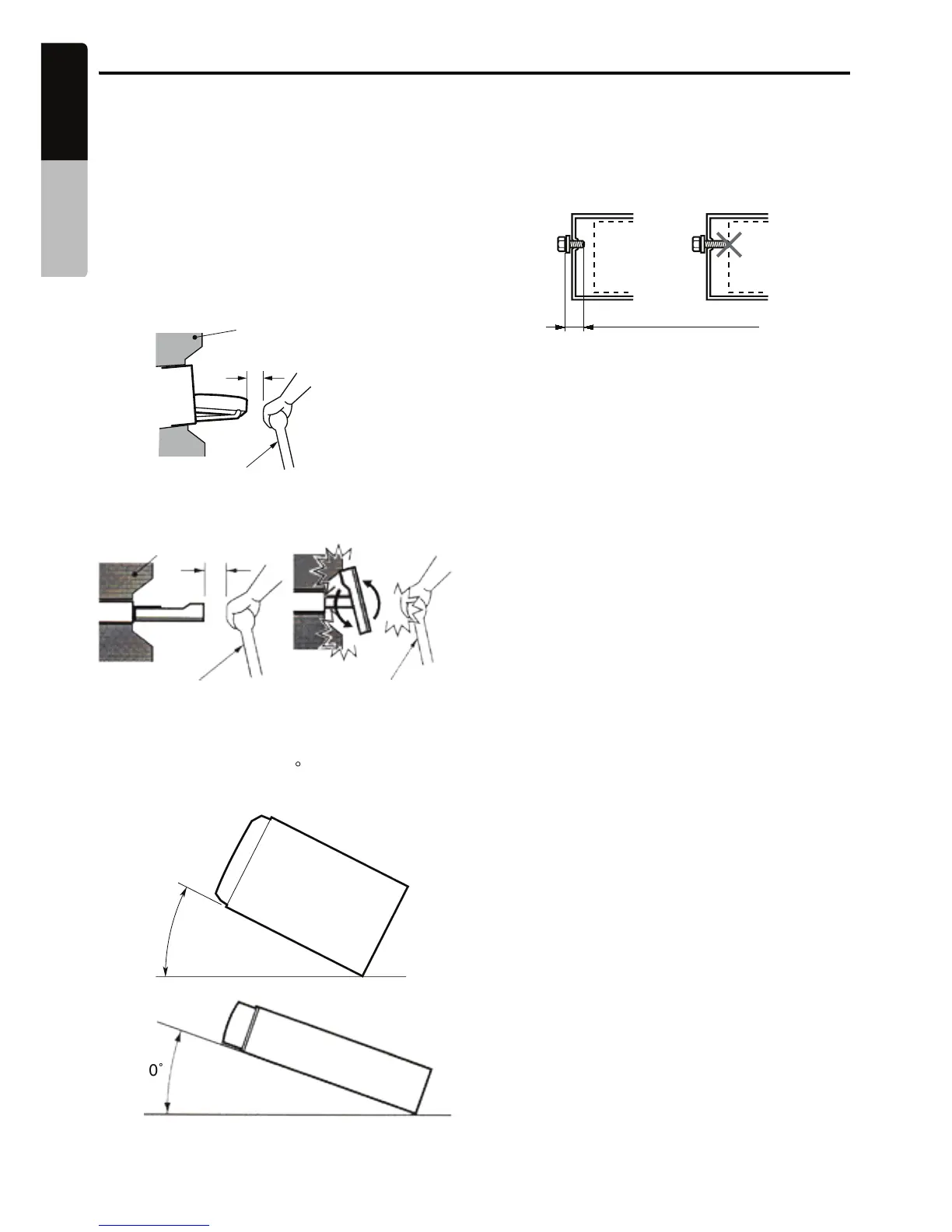

Figure 2
Figure 3
Max. 30˚
5. Use the included screws for installation. Using
other screws can cause damage. (Figure 4)
6. This unit has a fan motor in the back of the
main unit so as not to raise the temperature in
the main unit. When the fan motor vent is
covered with cords or mounting bracket, it
may cause a malfunction. Be sure not to cover
it when wiring cords.
Chassis Chassis
Damage
Max. 8 mm (M5 screw)
Figure 4
Dashboard
Gearshift lever
VX409
VX409
VZ409
VZ409
(check that it does not touch the LCD)
Max. 30˚
