Installing the Mai n Un it in a TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked are attached to the vehicle.)
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLING THE
MAIN UNIT”
Note:
*2: Some panel openings are too small for the unit
depending on the vehicle type and model. In
such a case, trim the upper and lower sides of the
panel frame by about 0.5 to 1.5 mm so the unit
can be inserted smoothly.
*3: If a hook on the installation bracket interferes
with the unit, bend and flatten it with a nipper or
similar tool.
* 3

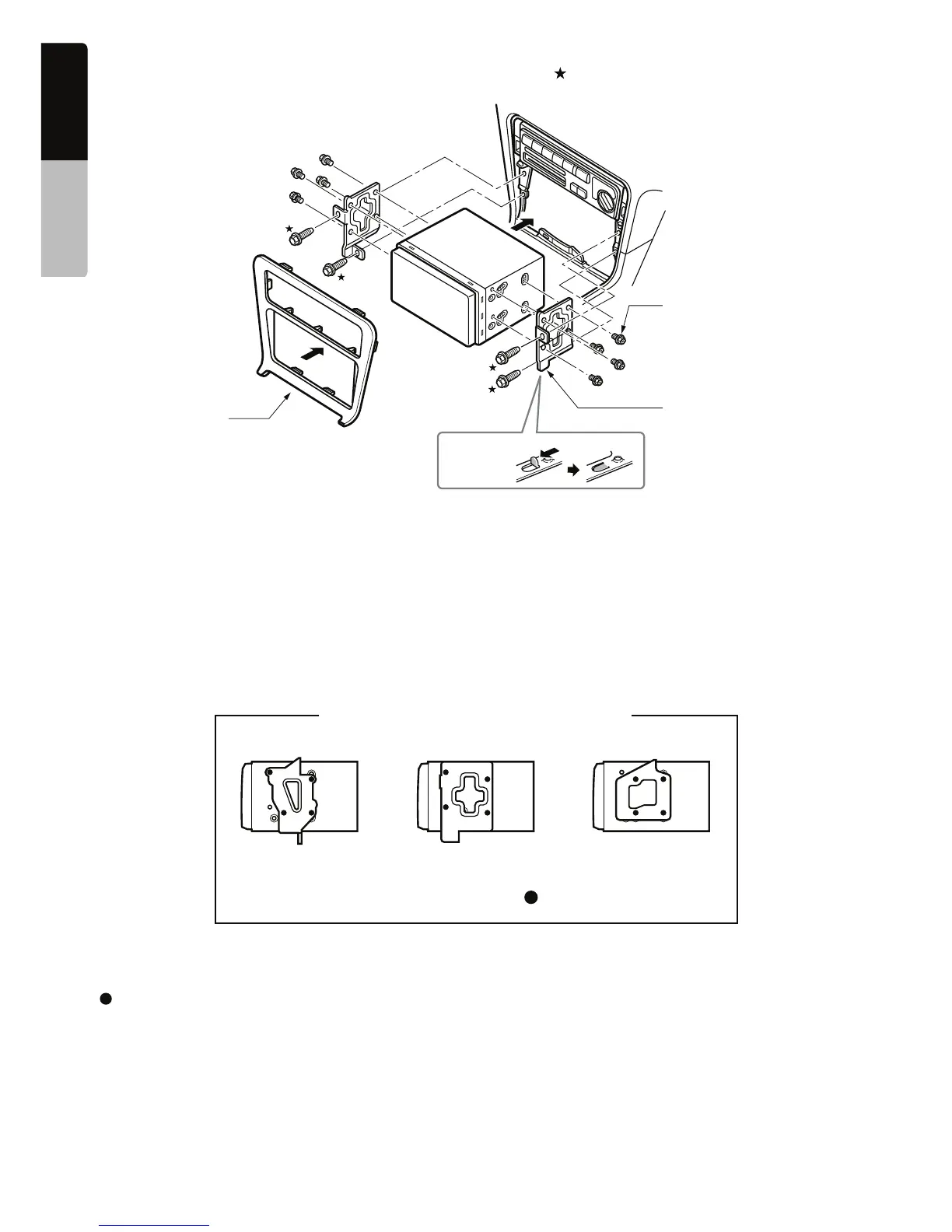

Figure 7
Main Unit
8-Hexagonal screw
(M5 × 8)
Mounting bracket
(1 pair for the left
and right sides)
Center Panel
(* 2 )
3elpmaxE1elpmaxE Example 2
Affix the screws to the marks.
Typical Mounting Brackets
42
English
Owner’s manual
VX409/VZ409
