CHANGING THE SANDING BELTS

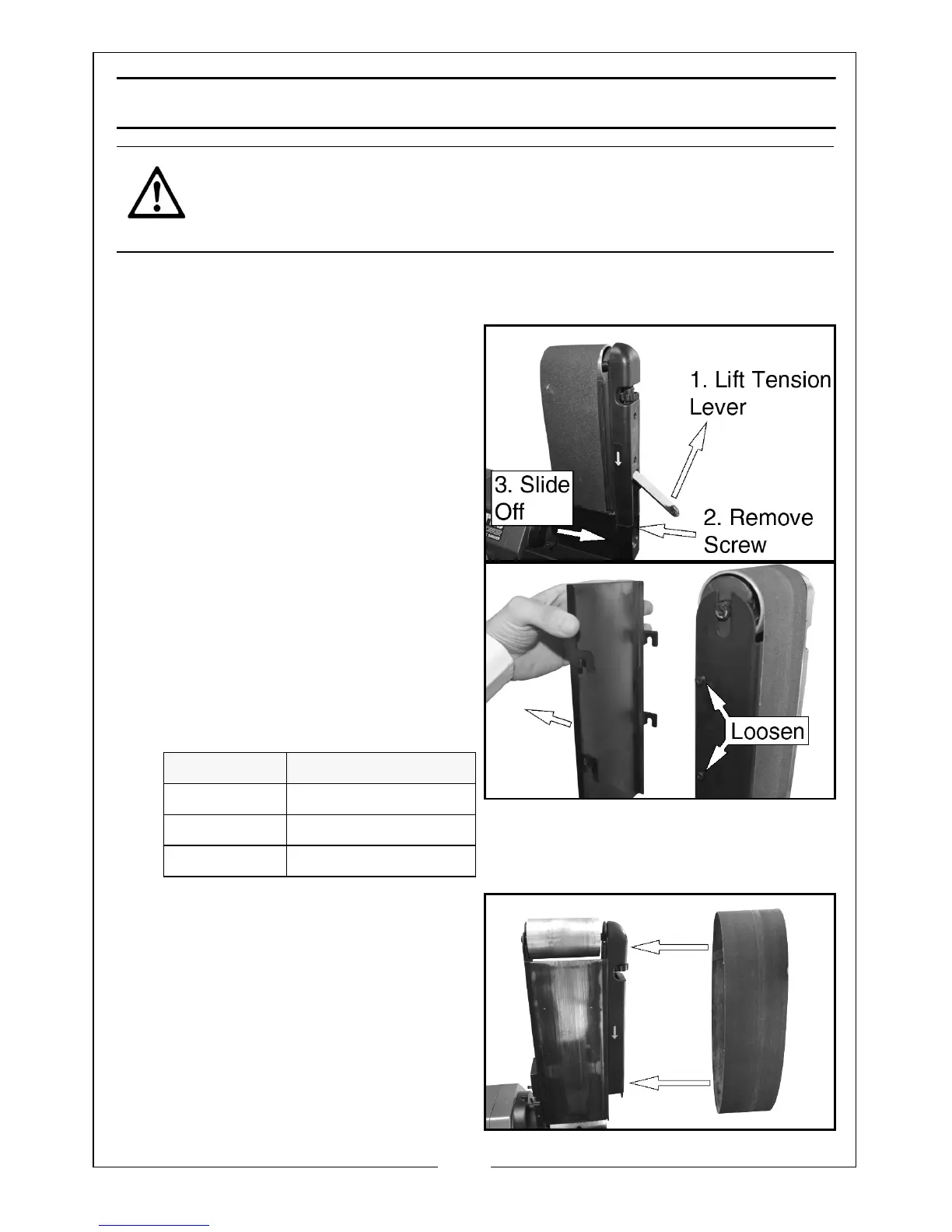

1. Remove the table See “Installing The Belt Sander Table” on page 7.
2. Pull the bottom of the tension lever
out to release the belt tension.
3. Remove the screw from the lower
cowling and slide the cowling off.
4. Loosen the screws shown and lift
off the rear plate.
5. Remove the sanding belt from the
rollers.
• Replacement sanding belts are
available from your Clarke
dealer.
6. Fit the new belt onto the rollers.
7. Replace all the parts removed in
reverse order.
8. Engage the tension lever to apply
tension to the belt.
9. Check the belt tracking
(described in “Belt Tracking” on
page 14) before use and adjust if
necessary.
CAUTION: CHECK THE INSIDE OF THE BELT FOR A “DIRECTION ARROW”. IF
PRESENT, INSTALL THE BELT WITH THE ARROW POINTING IN THE SAME
DIRECTION AS THE DIRECTION INDICATOR ON THE HOUSING.
Grit Part number
Fine 6502096
Medium 6500808
Coarse 6502101
