Fusion 20T

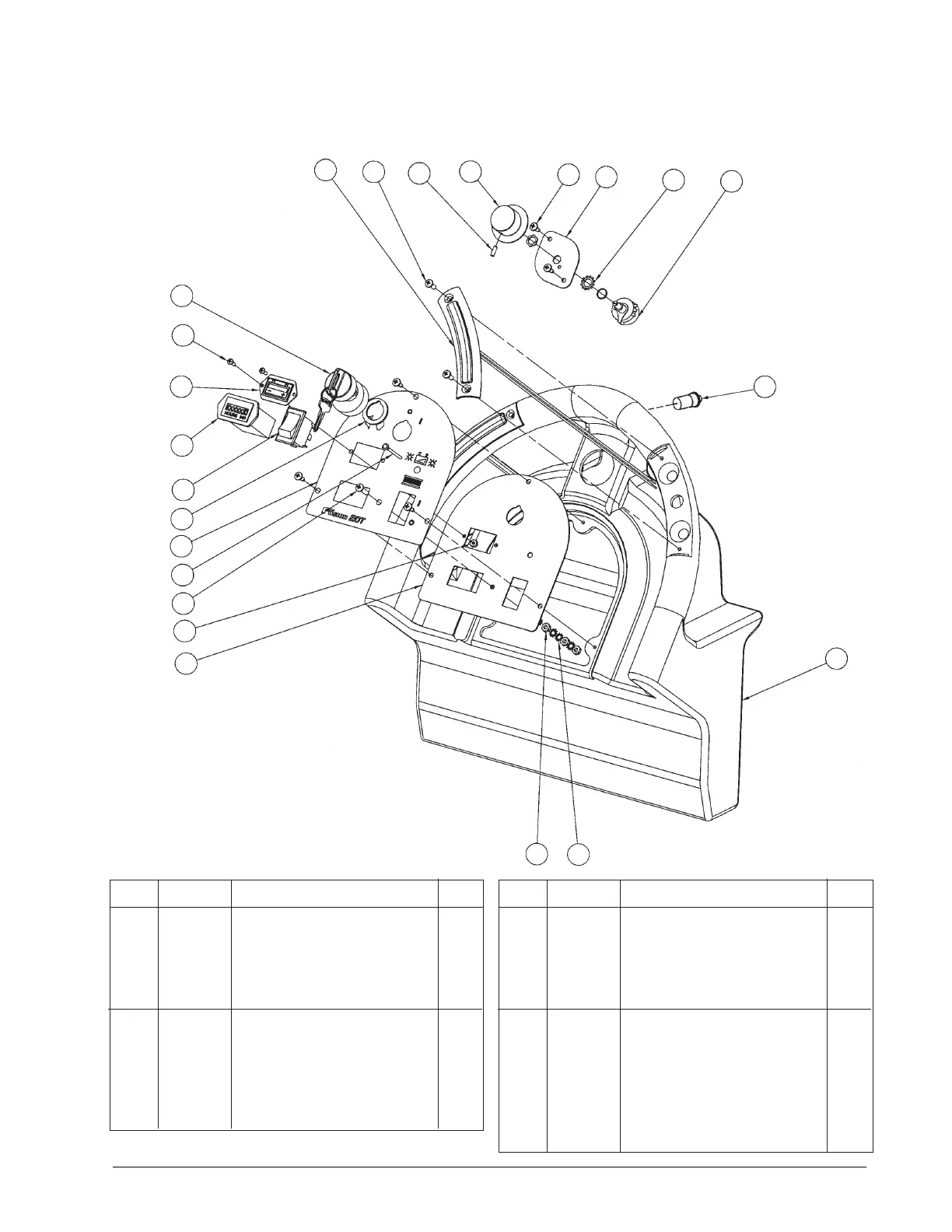

Handle Assembly Drawing and Parts List 3/08
Ref. Part No. Description Qty.
1 11131A Switch, Control Handle Asm. 1
2 80104A Screw, 10-32 X 1/2 S.S. 4
3 962262 Screw, Set 8-32 x 1/2" 1
4 50962A Knob, Speed Control 1
5 962957 Screw, 10-16 x 1/2 Self Tap 5
6 61922A Retainer, 5K Potentiometer 1
7 980666 Washer, 3/8 Starlock Ext. 1
8 40750A Harness, Potentiometer Asm. 1
9 30683A Handle, Control 1
10 920224 Nut, 10-32 Hex 3
11 980603 Washer, #10 Lock Ext. Tooth 4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Ref. Part No. Description Qty.
12 61907A Panel, Control 1
13 920056 Nut, 6-32 E.S.N.A. Nylock 2
15 41036A LED, Battery Charger 1
14 85383A Screw, 10-32 x 3/4 PH 1
16 71433A Label, Control Panel 1
17 40786S Spacer, Key Switch 1
18 47381B Switch, Rocker DPDT 1
19 912226 Meter, Hour 12V DC 1
20 41008A Display, Tru-Charge 1
21 85313C Screw, PHMS 6-32 x 3/8 3
22 40786A Switch, Key Hobbs 1
23 52556A Switch, Push Button 1
21
22
23
