Clarke Fusion 20 - Final Assembly Drawing and Parts List, Fusion 20; Plano de Montaje Final y Listado de Piezas, Fusion 20; Schéma Dassemblage Final Et Liste des Pièces, Fusion 20

Clarke
®
Fusion 20

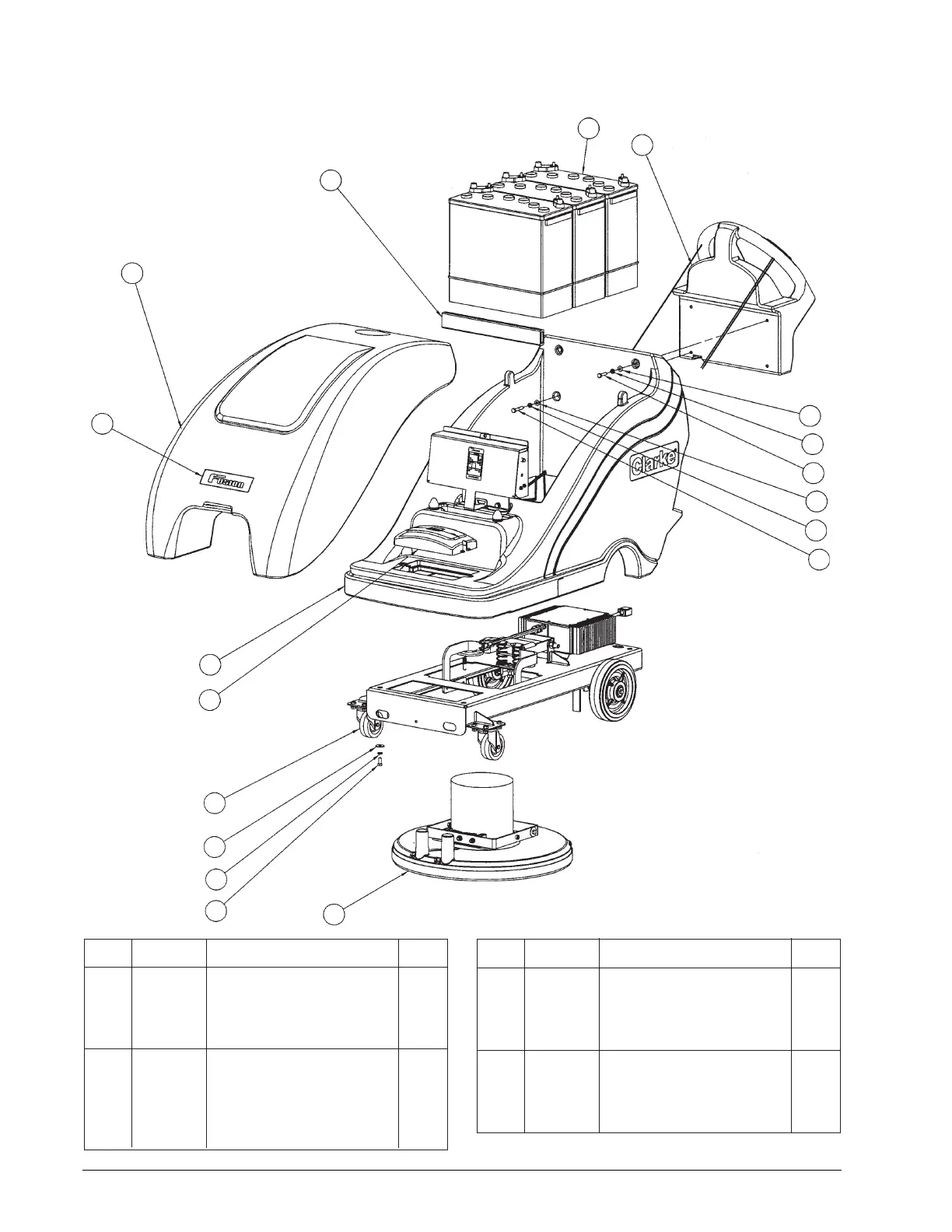

Final Assembly Drawing and Parts List 2/08
Page -46- Clarke
®
Operator's Manual - FUSION 20 / 20T
Ref. Part No. Description Qty.
1 71387A Label, Fusion 1
2 30781A Cover, Top 1
3 30787A Spacer, Battery 1
4 871334 Battery, 195 AH Wet 12V 3
41023A* Battery, 234 AH AGM 12V 3
5 Page 50 Handle, Control Asm. 1
6 980651 Washer, 5/16 Flat 4
7 980652 Washer, 5/16 Lock 8
8 85814A Screw, 5/16-18 x 1/4 HH 2
Ref. Part No. Description Qty.
9 85816A Screw, 5/16 x 1.75 Hex Hd 2
10 Page 52 Head Asm., 20" 1
11 85811A Screw, 5/16-18 x 3/4 Hex Hd 4
12 980205 Washer, .31 I.D. x 1.06 O.D. 4
13 Page 46 Frame Asm., 20" 1
14 30741A Cover, Dust Bag 1
15 Page 42 Body Asm. 1
NI 54195A Dust Bag 1
*Optional
1
2
3
4
7
6
5
6
7
7
8
9
10
11
12
13
14
15
