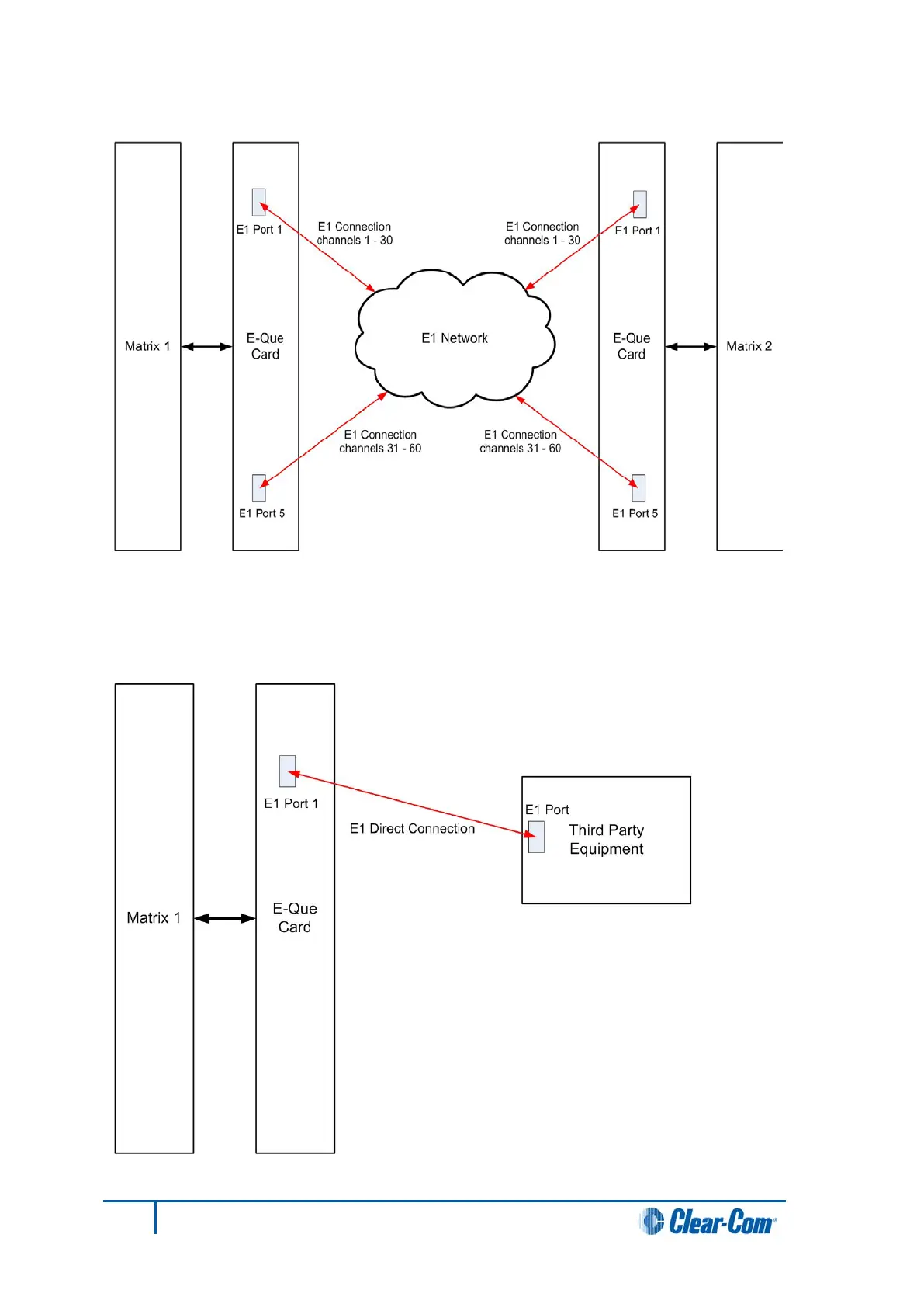

Figure 39: E1 Trunking with an E1 Network
The E-QUE interface can also be used to connect the matrix to third party equipment using
E1 port 1 or 5.

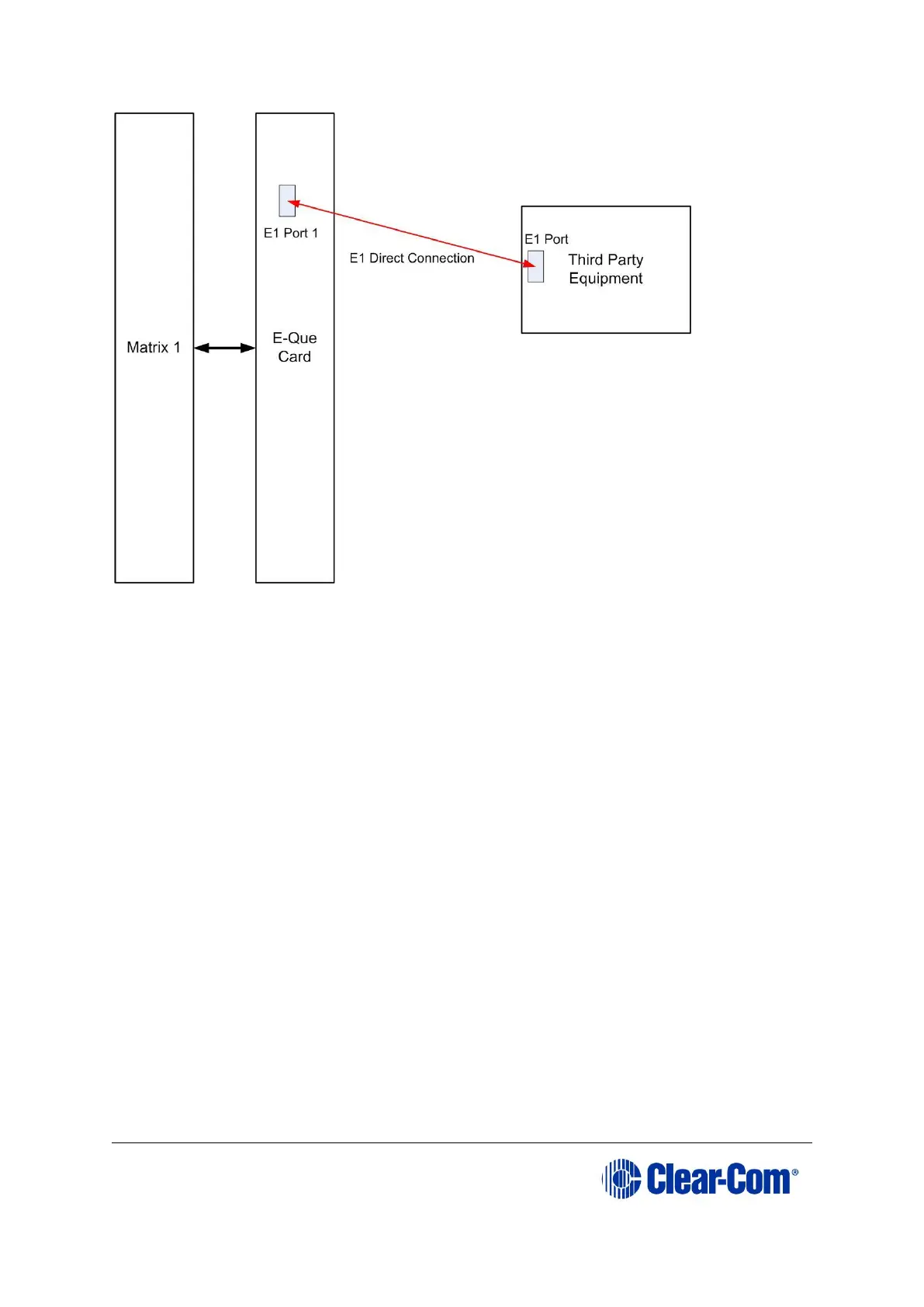

Figure 40: Matrix to Third Party E1 connection
