The CAT5 cable connecting the E1 port on the E-QUE rear card may be a crossover cable
or a straight-through cable depending on the requirements of the third party equipment. The
E-QUE interface should be set to Direct in EHX.
8.5 T1 trunking

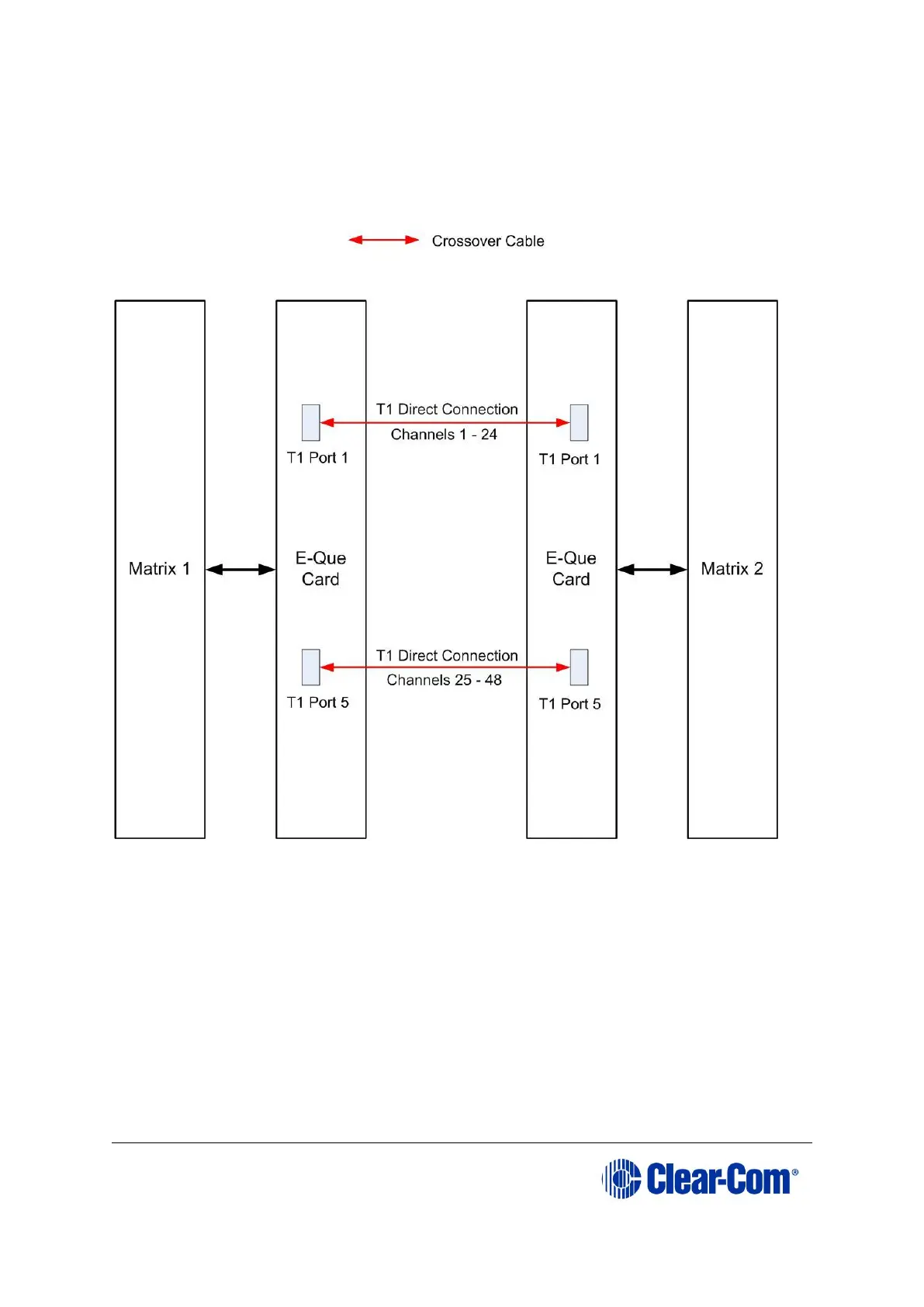

The E-QUE interface card can provide T1 trunking between Eclipse systems and between
Eclipse systems and compatible third-party equipment.
T1 mode provides 24 channels of G.722 or G.711 encoded audio are available on each of
ports 1 and 5, giving 48 channels per card.
The T1 trunking specifications are:
• B8ZS Encoding.
• Extended Super Frame.
• Long Haul Receive Signal Level.
• T1 Long Haul (LBO 0 dB) Transmit Pulse Amplitude.
• Balanced.
• 120 Ohm Line Impedance.
• No Signaling.
• G.722 or G.711 64 kbit/s Audio Encoding.
• Tx Clock locally generated.
• Rx Clock Line Recovered.
