Note:
If this port is used a ferrite core must be added to the socket end of each
cable. A suitable ferrite core is Würth Electronik part: 74271132.
Clear-Com recommends the use of shielded cable.
G
Local Area Network connector (LAN2)
The LAN1 and LAN2 connectors have standard Ethernet pin assignments.
The green LED indicates the port is connected and the amber LED
indicates activity.

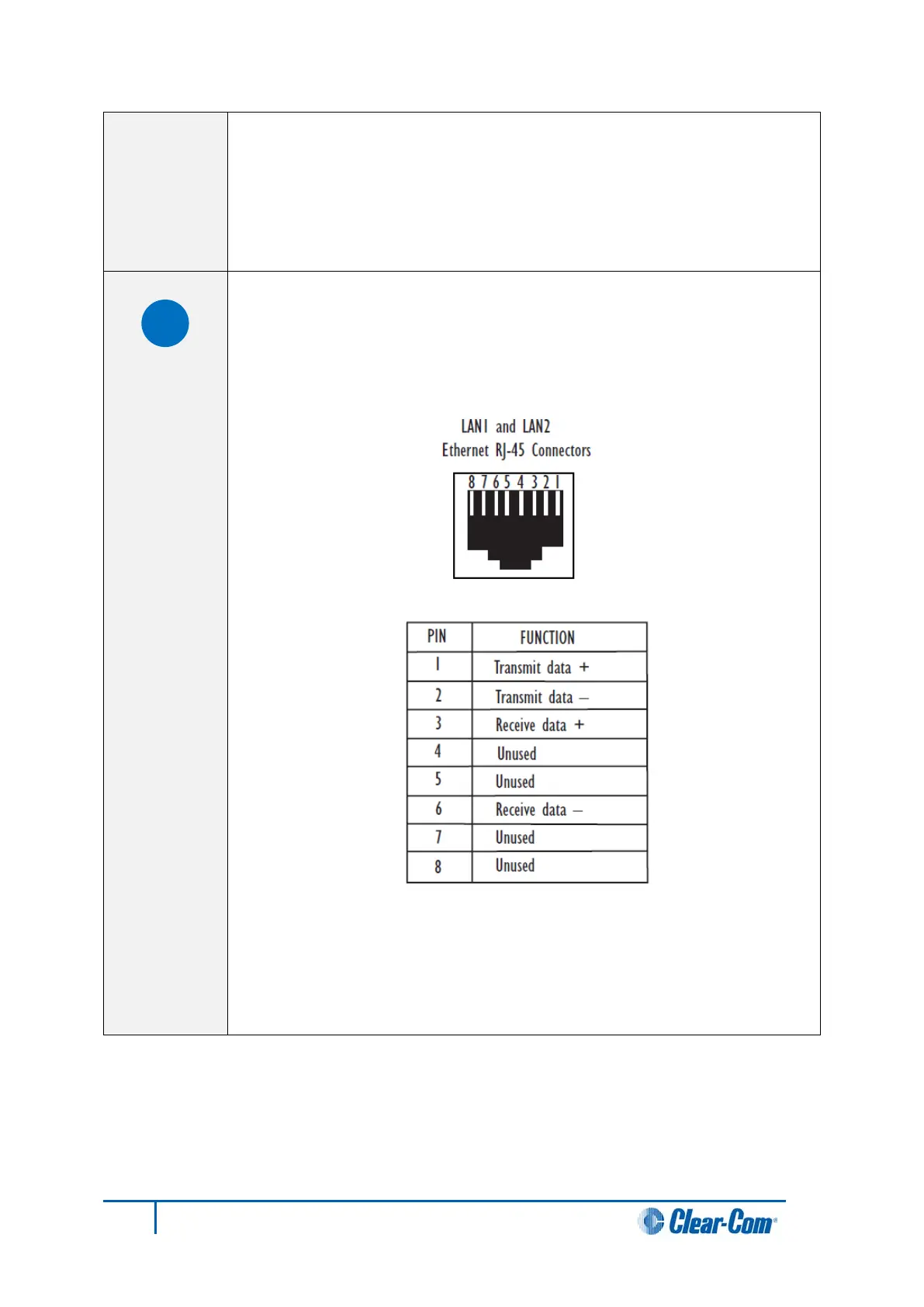

Figure 21: LAN1 and LAN2 pin assignments
Note:
If this port is used a ferrite core must be added to the socket end of each
cable. A suitable ferrite core is Würth Electronik part: 74271132.
Clear-Com recommends the use of shielded cable.
Table 7: Key to CPU card interface connectors
