Clear-Com Communication Systems
Encore System Installation Instruction Manual
1-5

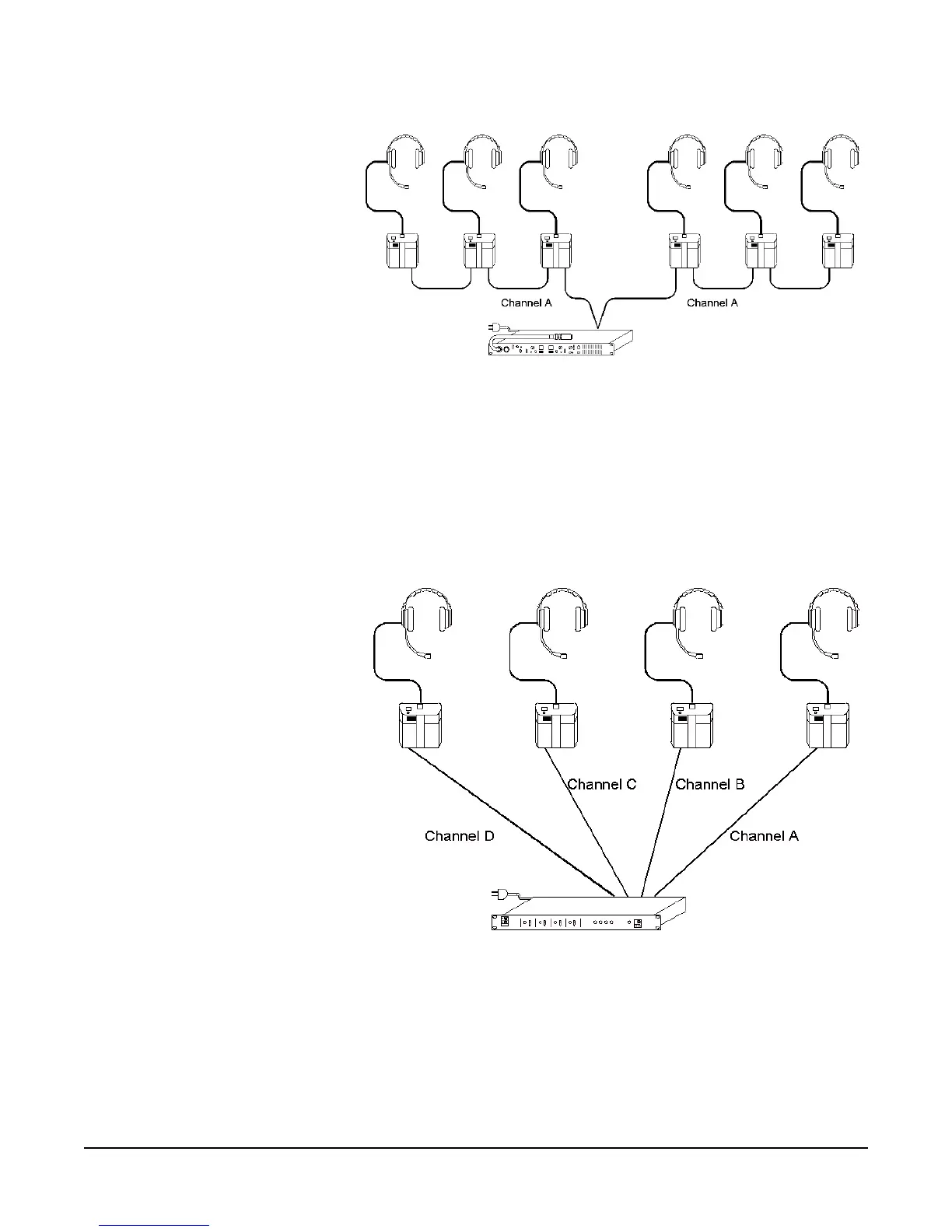

Figure 1-4: Party Line Hub Configuration
MULTI-CHANNEL SYSTEM
In a multi-channel system where each channel is run on its own cable
and connected only to single channel Remote Stations as in the
following diagram, there are no crosstalk issues because the channels
do not share a common ground. Consult the table in the next section
for cable recommendations.
Figure 1-5: Multi-Channel Party Line
It is also important to centrally locate the multi-channel Main Station or
Power Supply containing the termination. Crosstalk does not exist at
the termination point, but can increase in proportion to the length of the
wiring to multi-channel stations. If the termination is centrally located
and the wiring length guidelines in the following section are adhered to,
then crosstalk will be at a minimum.
