Encore System Installation Instruction Manual
1-19
THEATRE 2

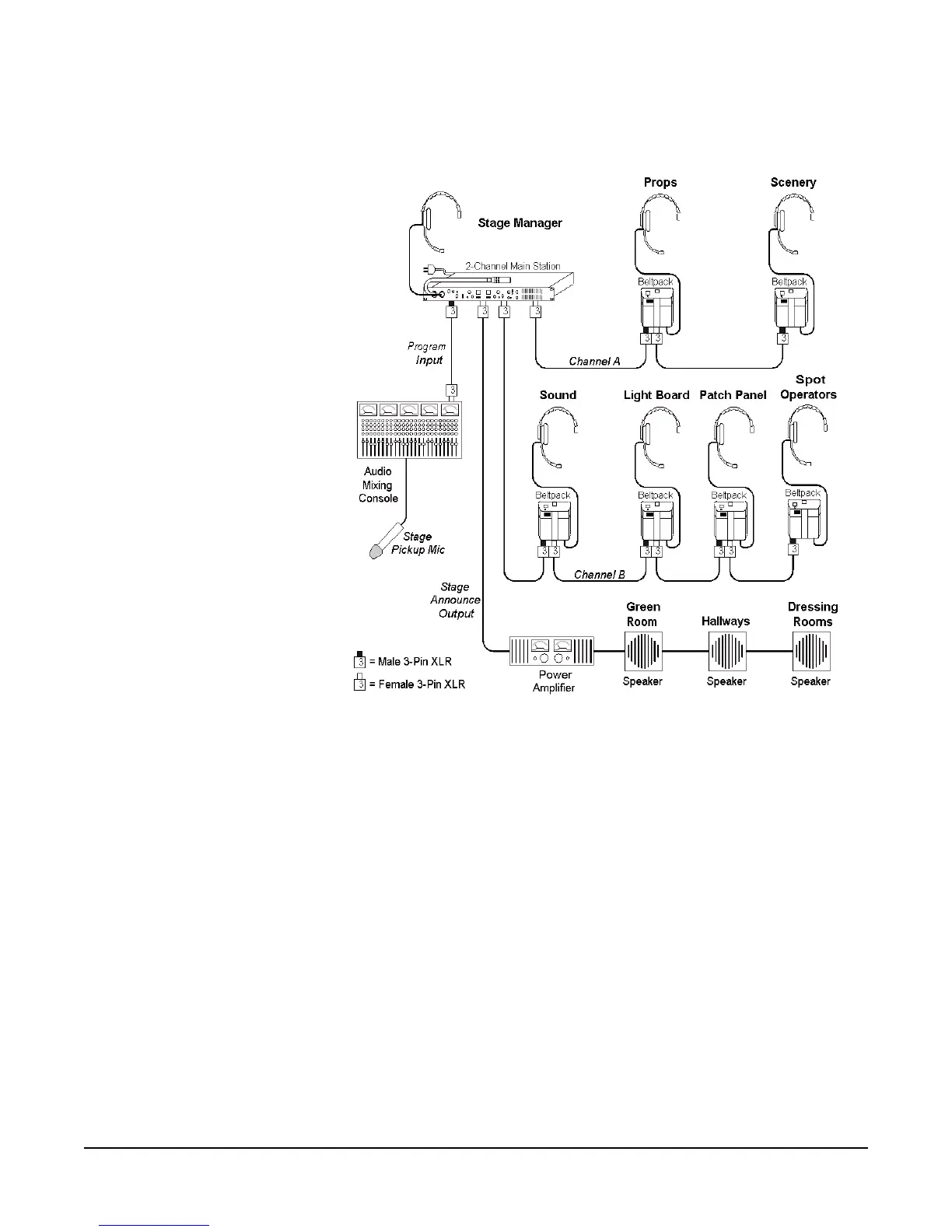

Figure 1-9: Party Line Theatre Application Example 2
In this example of another typical Theatre installation, the Stage
Manager operates a two-channel Main Station, which also powers the
system. Several single-channel beltpacks are connected to Channel
A. The beltpacks are used by props and scenery people.
Communication between these people and the Stage Manager is on
Channel A.
Several single-channel beltpacks are also connected to Channel B.
The beltpacks are used by sound, light board, patch panel, and spot
operators. Communication between these people and the Stage
Manager is on Channel B.
A mixing board audio output from the stage pickup microphones is
connected to the Program Input of the Main Station. Using the
Program Audio to Stage Announce option, this audio is routed out the
Stage Announce output of the Main Station and into an external power
amplifier. This amplifier drives speakers in the Green Room, Hallways,
and Dressing Rooms. The people in these rooms will then be able to
hear sound from the stage. The Stage Manager presses the
