Clear-Com Communication Systems
Encore System Installation Instruction Manual
2-6

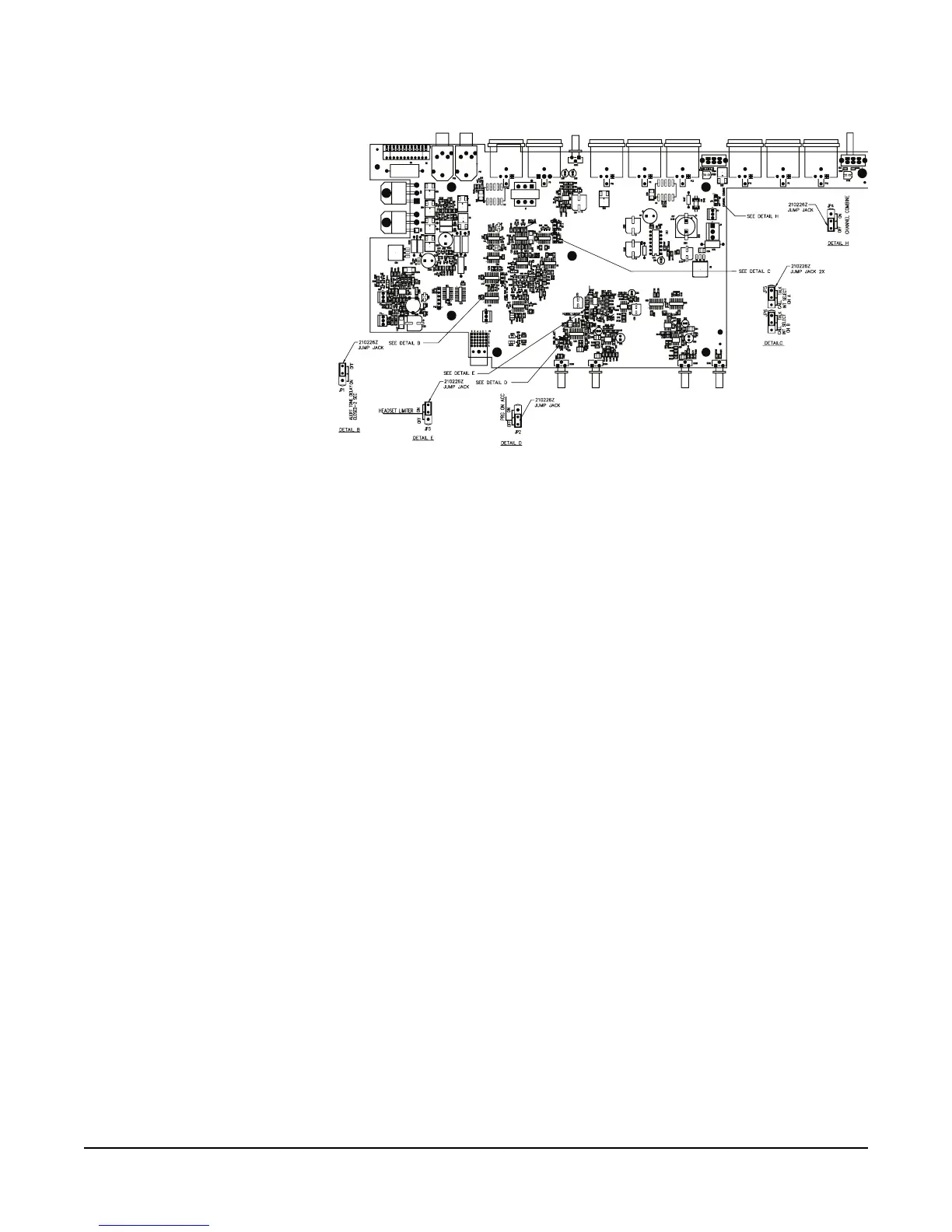

Figure 2-3: MS-702 Jumpers
• In the MS-440, MS-704, RM-440, RM-704, SB-440 and SB-704
stations, the jumper is located near the middle of the main circuit
board. J11 should be set to ON to enable the option or OFF to
disable it.
SYSTEM SETUP
After connecting the MS-232, MS-702, MS-440, MS-704, RM-440,
RM-704, SB-440 or SB-704 Station, perform the following steps to
assure that the audio level will be correct at each listening point:
1. Press the Announce button and adjust the stage announce power
amplifier for the correct level from the speakers connected to it.
The Stage Announce output will provide a 0 dBu signal to the
stage announce amplifier.
2. With the Announce button released, adjust the Mixing Console so
that the Program level is correct as heard through the speakers
connected to the stage announce amplifier. The output from the
Mixing Console will likely be 0 dBu or less.
3. If the Program Audio is to be heard on the intercom channels,
adjust the Program Level controls for the channels accordingly.
Refer to the MS-232, MS-702, MS-440, MS-704, RM-440,
RM-704, SB-440 or SB-704 Station manual to locate these
controls.
4. Lastly, if the Stage Manager is to hear the Program Audio, adjust
this level on the MS-232, MS-702, MS-440, MS-704, RM-440,
RM-704, SB-440 or SB-704 Station.
