2.2 Basic Base Station Setup
This section describes setup and equipment connections for an individual base station.

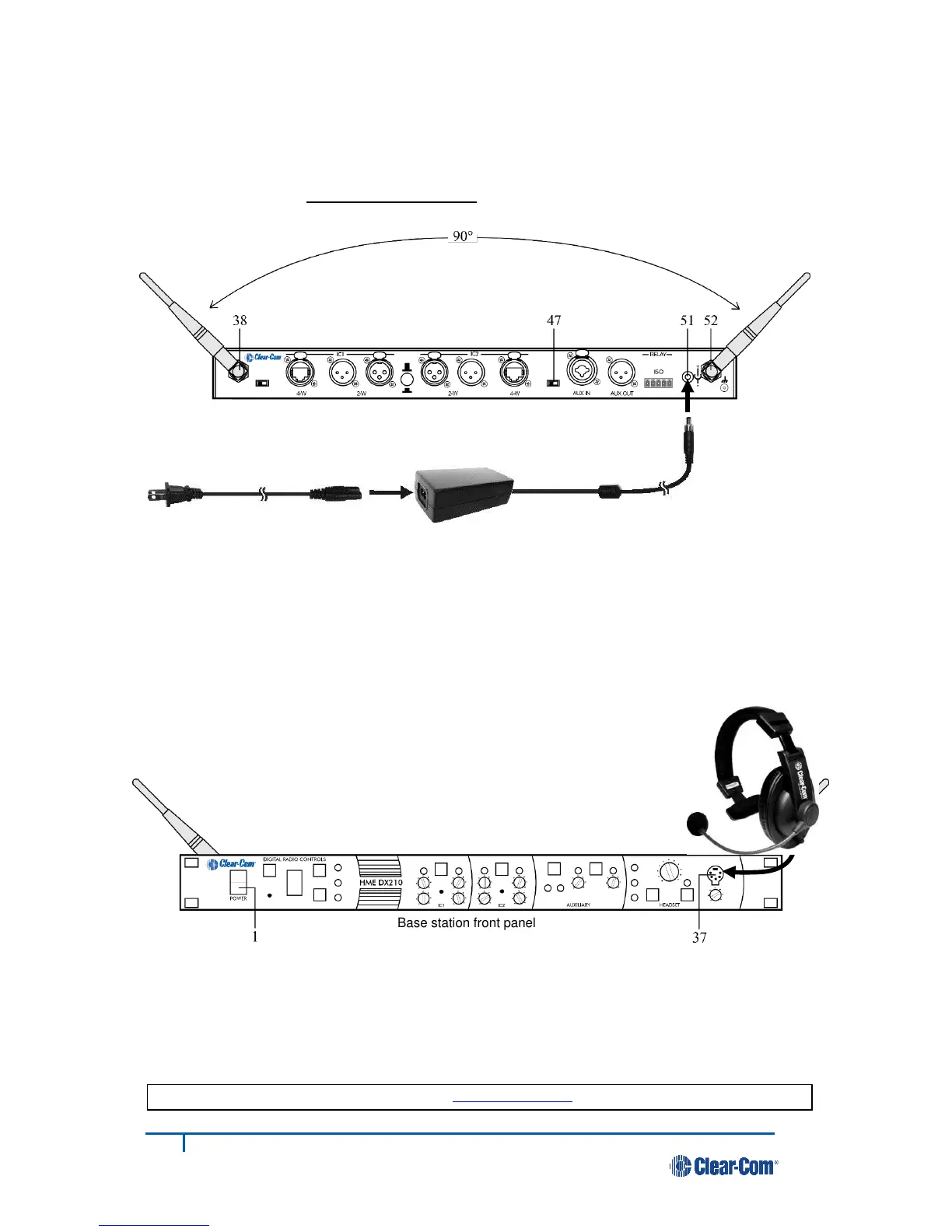

● Connect the two enclosed antennas to the antenna connectors (#38 and #52) on the rear panel of
the base station, and turn the sleeves clockwise on the antenna connectors to tighten them securely
in place. Position the antennas at 90° angles from each other.
● Plug the connector at the end of the AC power supply cord into the +12-14VDC power connector
(#51) on the rear panel of the base station. Turn the locking nut on the cable connector clockwise to
secure it to the base station. Plug the female connector at one end of the AC power cord into the
power supply. Plug the other end of the AC power cord into an electrical outlet.
● Set switch #47 for the base station to operate in single or dual channel mode.
In single channel mode, all wireless users will be able to hear one other. Up to four users can talk
simultaneously.
In dual channel mode, there are two separate audio channels enabling two groups of users to
independently communicate with each other. Up to three users can talk
simultaneously.
NOTE: Any time the mode is changed, the unit must be reset using the reset
button or by power cycling for the change to take effect.
● If a local headset will be used, plug it into the HEADSET connector (#37) on the front panel of the
base station.
NOTE: The connector is keyed, so the headset cable plug cannot be inserted in the wrong direction.
● Press the POWER switch (#1) on the front panel to turn on the base station. A red light on the switch
should go on.
