Antenna Connection
The beltpack comes with two detachable, screw type, ¼ wave
antennas. To attach the two antennas, screw into the recepta
-
cles at the bottom of the beltpack. The color dot on the screw
end of the antenna must match the color dot on antenna recep
-
tacle. The longest antenna is the receiver antenna. It screws
into the left receptacle if the beltpack is laying flat with the
battery compartment face up and the antenna receptacles fac
-
ing you. The other antenna is the transmit antenna. New an
-
tennas can be ordered if desired, see the “Accessories” section.
Transmit mode
The rear panel located transmit switch has the following two
modes:
Push-to-Talk (PT TALK) – Recommended position –
The transmitter is always on. No audio is sent unless the
talk switch is pressed.
Push-to-Transmit (PT TX) – The transmitter and audio
paths are off except when the talk switch is pressed.
Headset Connection
Insert the headset plug into the XLR connector. See the head
-
set pinout in the “WTR-670 beltpack controls and connec
-
tions” section if this is not a Clear-Com
®
headset. A dynamic
or electret headset microphone is automatically detected by
the beltpack and a bias voltage supplied if needed.
4-8
MENU
SET
M
IC
PT
TX
P
T
TA
LK
MICROPHONE
GAIN CONTROL
TRANSMIT
SWITCH
HEADSET
CONNECTION
RECEIVE
ANTENNA
TRANSMIT
ANTENNA
BATTERY
RELEASE
LATCH

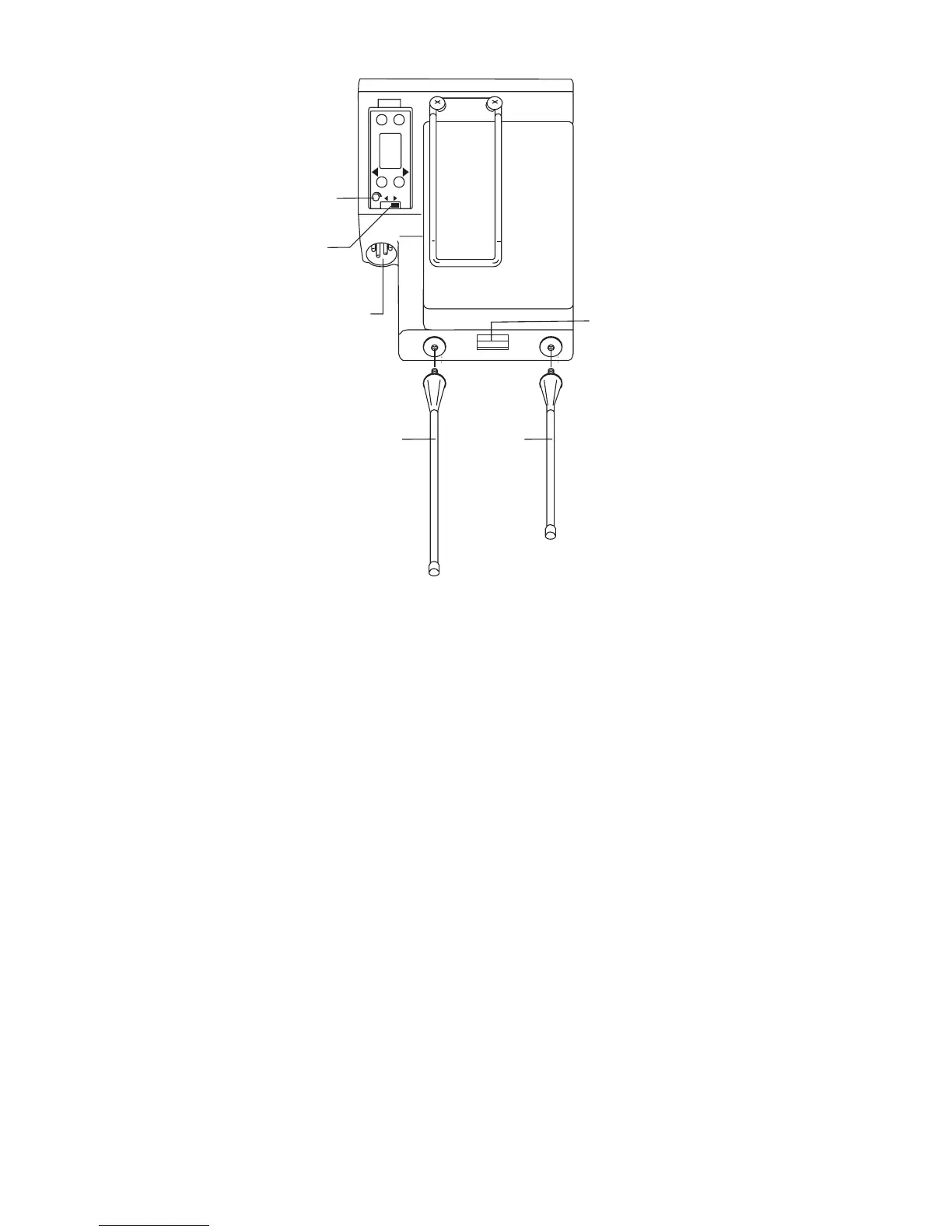

Figure 19
WTR-670 Rear Panel
