Clevo P970EF - System Map: Front View with LCD Panel Open

10
English
System Map: Front View with LCD Panel Open
2 1
7
6
4
3 3
5
8
Model A

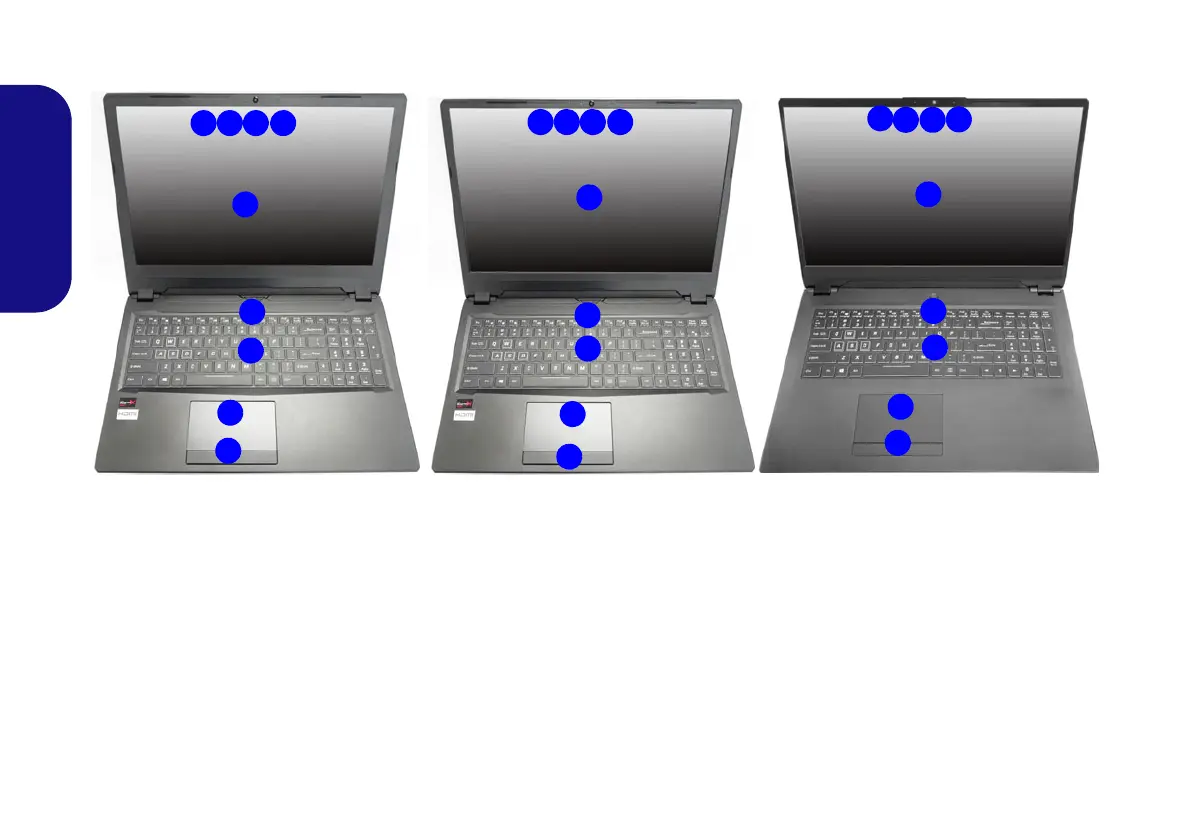

Figure 3 - Front View with LCD Panel Open
1. PC Camera
2. *Camera LED
*When the camera is in use, the LED
will be illuminated.
3. Built-In Array Microphone
4. LCD
5. Power Button
6. Keyboard
7. (Optional) Fingerprint Sensor
8. Touchpad & Buttons
2 13 3
15.6” (39.62cm)
7
6
4
5
8
Model B
16.1” (40.89cm)
2 1
3
3
7
6
4
5
8
Model C
17.3” (43.94cm)
P950EDnP960P970EDEFEN.book Page 10 Friday, December 21, 2018 10:57 AM
