NVIDIA Video Driver Controls
C - 6 Attaching Other Displays
C
Configuring an External Display using the NVIDIA Control Panel
Alternatively you can use the NVIDIA control panel to configure any attached dis-
plays.
1. Attach your external display to the external monitor port or HDMI-Out port, and
turn it on.
2. Go to
NVIDIA Control Panel
(see
“NVIDIA Control Panel” on page B - 2
).
3. Click Set up multiple displays (Display).
4. Click to select the nView
display mode
you wish to use (see page
C - 9
).
5. Select the display(s) you want to use (if your display is not shown click “
My Display
is not shown in the list...
”), and choose which display is to be the primary display.
6. Click
Apply
to execute the change.

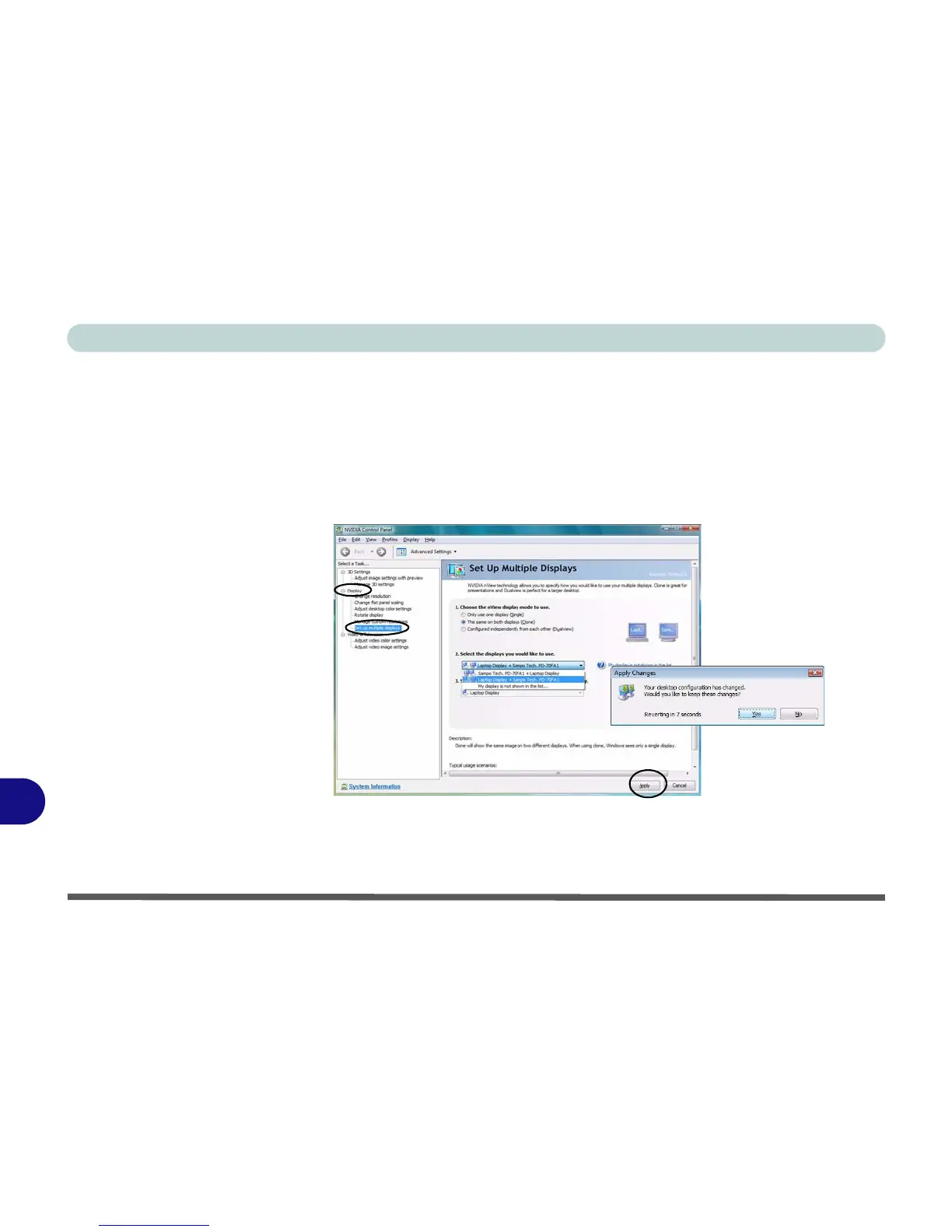

Figure C - 5
Set Up Multiple
Displays
To Next Page
