ClimateMaster tranquility 30 - Model Nomenclature: General Overview; Safety

3
climatemaster.com
PRELIMINARY
Tranquility
®
30 Digital (TE) Series IOM - 60Hz HFC-410A
Rev.: 3 Aug., 2012B

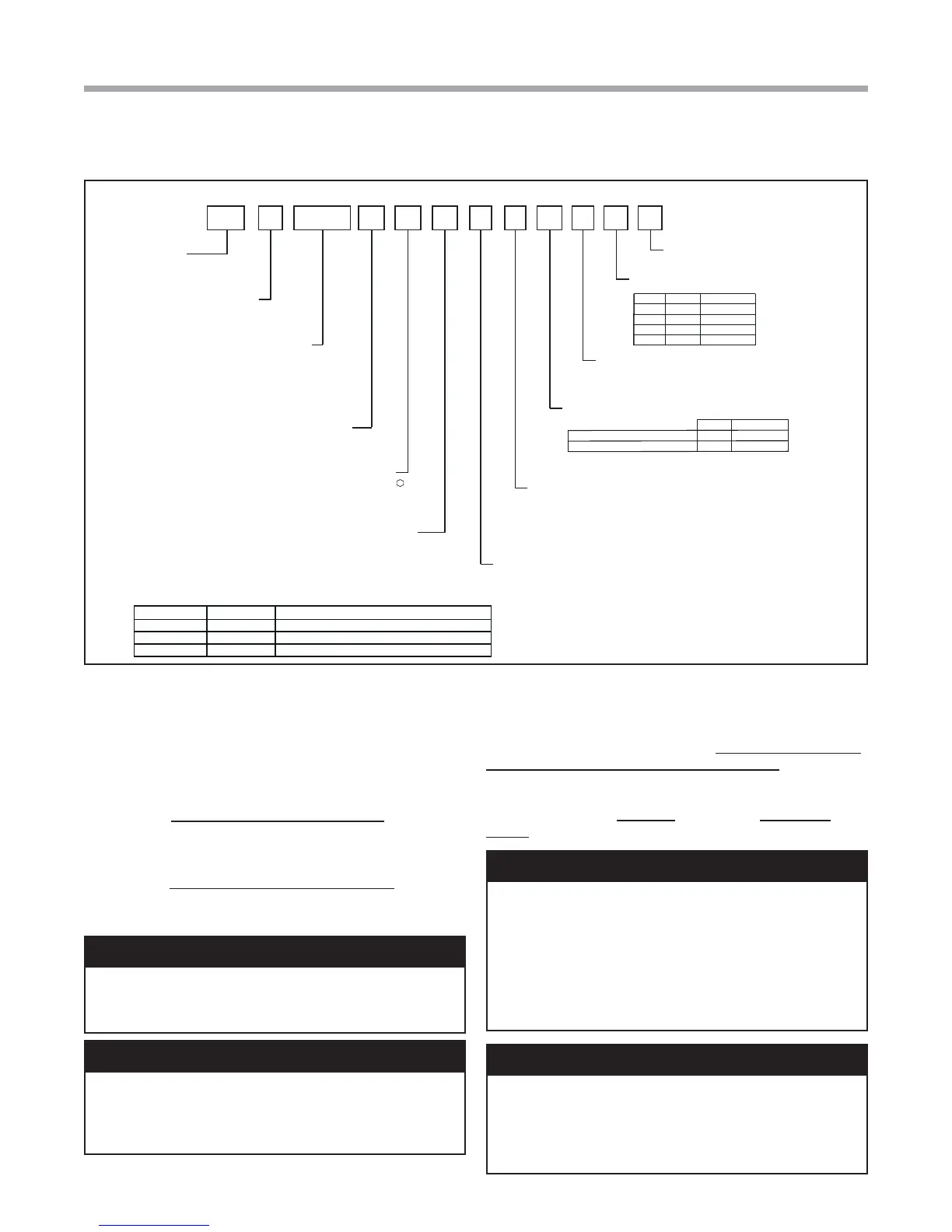

Model Nomenclature: General Overview
 WARNING! 
 WARNING! 
 CAUTION! 
WARNING! To avoid the release of refrigerant into the
atmosphere, the refrigerant circuit of this unit must be
serviced only by technicians who meet local, state, and
federal profi ciency requirements.
CAUTION! To avoid equipment damage, DO NOT use
these units as a source of heating or cooling during the
construction process. The mechanical components and
fi lters will quickly become clogged with construction dirt
and debris, which may cause system damage.
WARNING! All refrigerant discharged from this unit must
be recovered WITHOUT EXCEPTION. Technicians must
follow industry accepted guidelines and all local, state, and
federal statutes for the recovery and disposal of refrigerants.
If a compressor is removed from this unit, refrigerant circuit
oil will remain in the compressor. To avoid leakage of
compressor oil, refrigerant lines of the compressor must be
sealed after it is removed.
Safety
Warnings, cautions and notices appear throughout this
manual. Read these items carefully before attempting any
installation, service, or troubleshooting of the equipment.
DANGER: Indicates an immediate hazardous situation, which
if not avoided will result in death or serious injury. DANGER
labels on unit access panels must be observed.
WARNING: Indicates a potentially hazardous situation, which
if not avoided could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation or an
unsafe practice, which if not avoided could result in minor or
moderate injury or product or property damage.
NOTICE: Notifi cation of installation, operation or maintenance
information, which is important, but which is not hazard-
related.
 WARNING! 
WARNING! The EarthPure
®
Application and Service
Manual should be read and understood before attempting
to service refrigerant circuits with HFC-410A.
NOTE: Above model nomenclature is a general reference. Consult individual specifi cation sections for detailed information.
1
A = Current Revision
5 = Motorized Modulating Valve (Central Pumping Applications) - Closed Loop
6 = Motorized Modulating Valve (Ground Water Applications) - Open Loop
0 2 6 DG 0 2 C L T
4 5 6 7
8
91011121314
026
UNIT SIZE
038
RETURN AIR FLOW CONFIGURATION
VOLTAGE
CONTROLS
D = DXM2
REVISION LEVEL
HEAT EXCHANGER OPTIONS
CABINET
SUPPLY AIR FLOW &
MOTOR CONFIGURATION
TE
1 2
TE = Tranquility 30 Digital
SERIES
V
3
V = Vertical Up
CONFIGURATION
No HWG
HWG W/Pump (Standard)
Copper
Cupro-Nickel
A
C
J
N
WATER CIRCUIT OPTIONS
S
15
S = Standard
STANDARD
H = Horizontal
049
064
0 = Residential
Supply
Configuration
TTEV
BTEH
STEH
Top
Back
Straight
072
2 = Internal Flow Controller - Closed Loop
L = Left Return w/ 2” Merv 11 pleated filter and frame
R = Right Return w/ 2” Merv 11 pleated filter and frame
D = Down Flow
A
DTED
Down
G = 208-230/60/1
In Position 11 and 12, only the following combinations are available:
Without HWGWith HWG Description
2A2C Internal Flow Controller with Copper Water Coil
5A5C Motorized Modulating Valve with Copper Water Coil
6J6N Motorized Modulating Valve with Cupro-Nickel Water Coil
