ClimateMaster tranquility 30 - DXM2 Wiring Diagram with Internal Flow Controller - 96 B0005 N60 Part 1 of 2

30
Geothermal Heat Pump Systems
PRELIMINARY
Tranquility
®
30 Digital (TE) Series IOM - 60Hz HFC-410A
Rev.: 3 Aug., 2012B

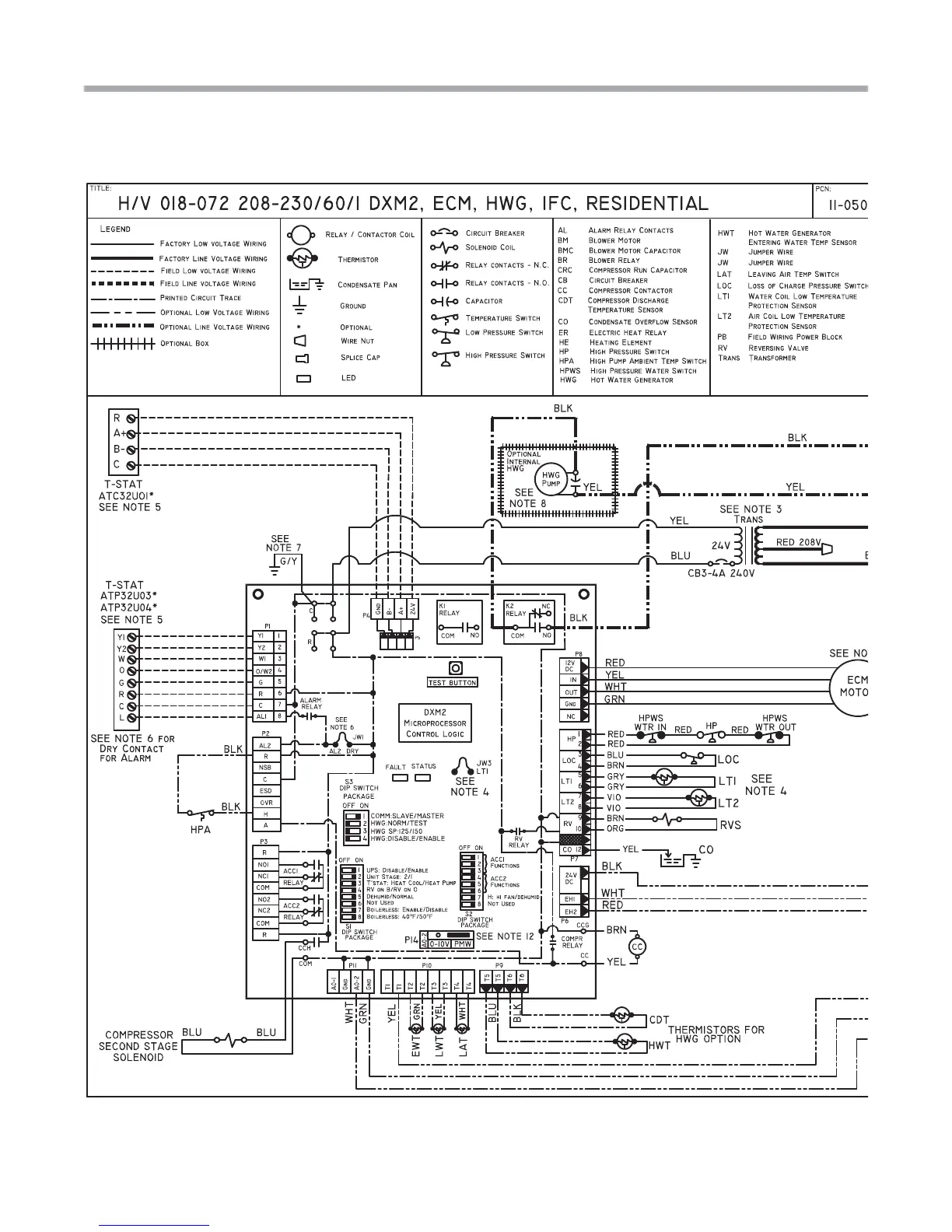

DXM2 Wiring Diagram with Internal Flow Controller - 96B0005N60
Part 1 of 2
This diagram includes typical wiring details but is not applicable to all units. For specifi c unit wiring, refer to the diagram or the
units’ control panel.
