ClimateMaster Tranquility TSV 009 - No Reheat (PSC Motor)

climatemaster.com
31
Tranquility
®
20 (TE) Series
Rev.: June 5, 2020
THE SMART SOLUTION FOR ENERGY EFFICIENCY
TS Blower Performance Data (PSC Motor) – Standard Unit - No Reheat
Model
Fan
Speed
Rated
Airow
Min
CFM
Airow (cfm) at External Static Pressure (in. wg)
0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
006
HI
240 150
317 305 285 271 250 230 203 168
MED 260 245 230 214 190 167
LO 216 201 189 156
009
HI
300 225
393 378 364 346 325 253
MED 366 353 341 326 310 230
LO 326 316 303 290 274
012
HI
350 300
520 500 479 453 403 347 312
MED 459 447 428 411 368 317
LO 371 368 358 345 315
018
HI
600 450
704 711 693 690 675 640 598 515
MED 602 599 581 585 573 547 492
LO 531 527 517 506 495 462
018
HS
HS HI
600 450
894 877 841 812 760 728 659
HS MED 765 755 738 711 668 640 602
HS LO 683 661 636 596 571 549
024
HI
950 655
1111 1105 1066 1006 934 854 765 662 635
MED 890 879 854 818 770 708 686 623
LO 759 745 730 704 662 627
024
HS
HS HI
950 655
1374 1351 1296 1228 1159 1090 1016 919 775
HS MED 1146 1151 1128 1091 1047 997 934 844 705
HS LO 1011 1015 999 945 911 863 785 656
030
HI
1000 685
1374 1351 1296 1228 1159 1090 1016 919 775
MED 1146 1151 1128 1091 1047 997 934 844 705
LO 1011 1015 999 945 911 863 785
030
HS
HS HI
1000 685
1342 1316 1249 1166 1083 1006 927 830 688
HS MED 1298 1250 1183 1110 1039 969 894 796 652
HS LO 1213 1172 1112 1046 982 919 850 758 623
036
HI
1200 825
1375 1387 1377 1350 1307 1251 1182 1099 1003 890
MED 992 1013 1013 1002 986 967 941 900 832 719
LO 887 900 897 886 872 853 826 785
036
HS
HS HI
1200 825
1751 1717 1664 1592 1503 1399 1285 1163 1039 919
HS MED 1538 1520 1485 1432 1361 1271 1165 1049 926 804
HS LO 1321 1294 1263 1226 1182 1130 1064 980 871 729
042
HI
1400 960
1808 1759 1723 1680 1617 1524 1399 1247 1075
MED 1537 1518 1494 1459 1408 1338 1247 1134 1001
LO 1323 1309 1284 1246 1192 1122 1036 936 824
042
HS
HS HI
1400 960
1805 1791 1760 1720 1674 1620 1552 1457 1318 1116
HS MED 1296 1297 1299 1299
1293 1276 1240 1176 1072 915
HS LO 991 998 1013 1019 1004 963 894 804 705
048
HI
1600 1100
1805 1791 1760 1720 1674 1620 1552 1457 1318 1116
MED 1296 1297 1299 1299 1293 1276 1240 1176 1072 915
LO Operation not recommended
048
HS
HS HI
1600 1100
1871 1889 1873 1833 1777 1706 1617 1504 1353 1150
HS MED 1663 1680 1686 1678 1650 1599 1520 1409 1262 1075
HS LO 1479 1508 1521 1516 1492 1446 1376 1249 1148 981
060
HI
1950 1500
2311 2300 2279 2257 2209 2140 2088 1990 1901 1856 1752
MED 2058 2039 2016 1983 1949 1920 1874 1807 1750 1670 1582
LO 1868 1858 1858 1838 1806 1792 1749 1699 1636 1570
060
HS
HS HI
1950 1500
2510 2486 2455 2424 2377 2318 2247 2161 2078 1986 1855
HS MED 2171 2162 2162 2153 2117 2085 2024 1971 1891 1823 1691
HS LO 2010 2006 2006 2006 1977 1947 1892 1851 1782 1705 1600
070
HI
2100 1800
2510 2486 2455 2424 2377 2318 2247 2161 2078 1986 1855
MED 2171 2162 2162 2153 2117 2085 2024 1971 1891 1823
LO 2010 2006 2006 2006 1977 1947 1892 1851

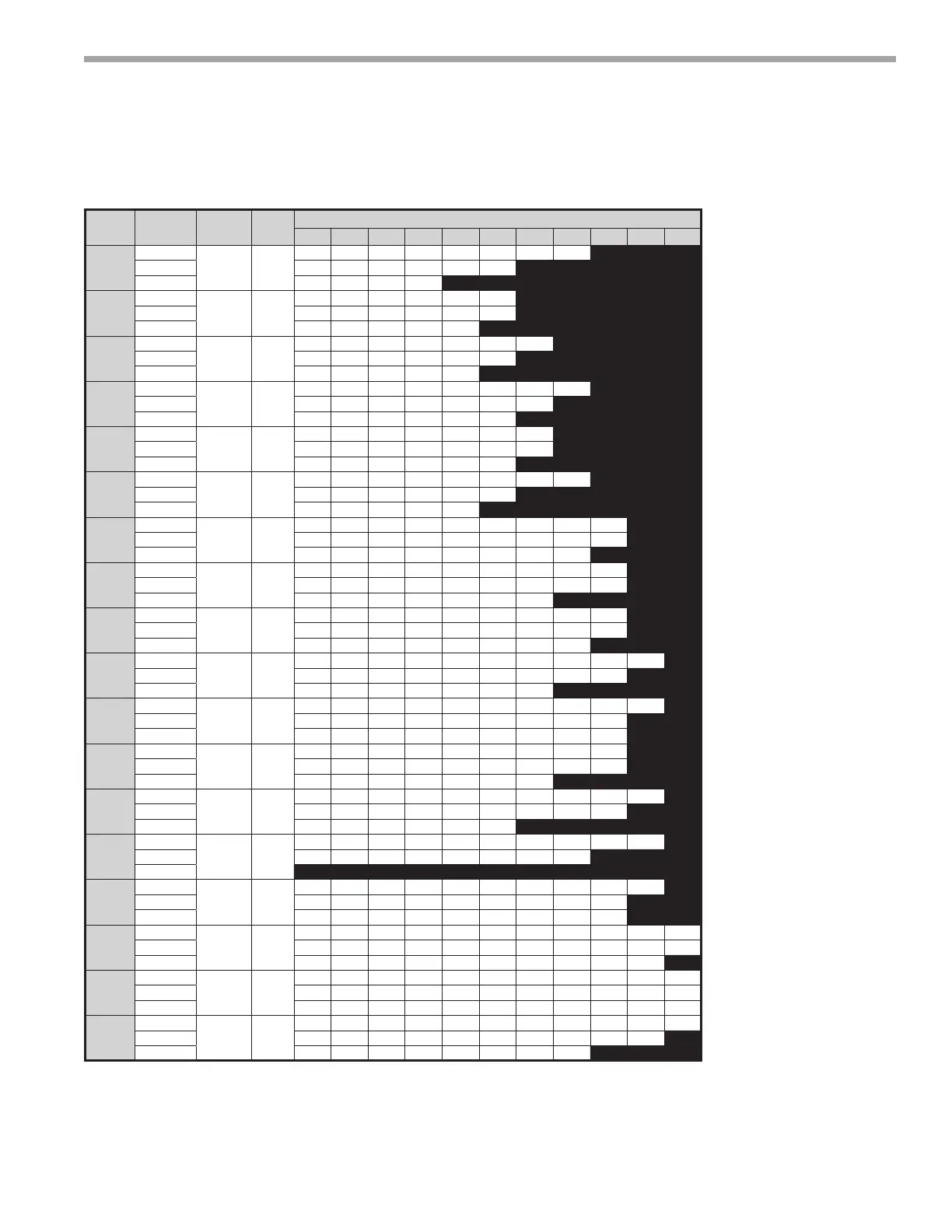

Black areas denote ESP where operation is not recommended.
Units factory shipped on medium speed. Other speeds require eld selection.
All airow is rated and shown above at the lower voltage if unit is dual voltage rated, e.g. 208V for 208-230V units.
Only two speed fan (H & M) available on 575V units.
Performance stated is at the rated power supply, performance may vary as the power supply varies from the rated.
HS = High static fan option
Airow in CFM with wet coil and clean air lter
