Climax BB6100 - Setting Feed Direction and Rate; Neutral (no Feed); Feed Away from the Axial Feed Unit

P/N: 57017, Rev. 3 Page 27
WARNING
A loose trip rod can cause damage and injury. Secure the trip rod
to a fixed object.
3.7.1 Setting feed direction and rate
Feed direction and feed rate are set using the feed adjustment knob. Axial feed rate is
variable from 0.003–0.020" (0.076–0.508 mm) per revolution.
CAUTION
To avoid permanent damage to the axial feed unit, do not leave the
wrench in the lead screw dial.

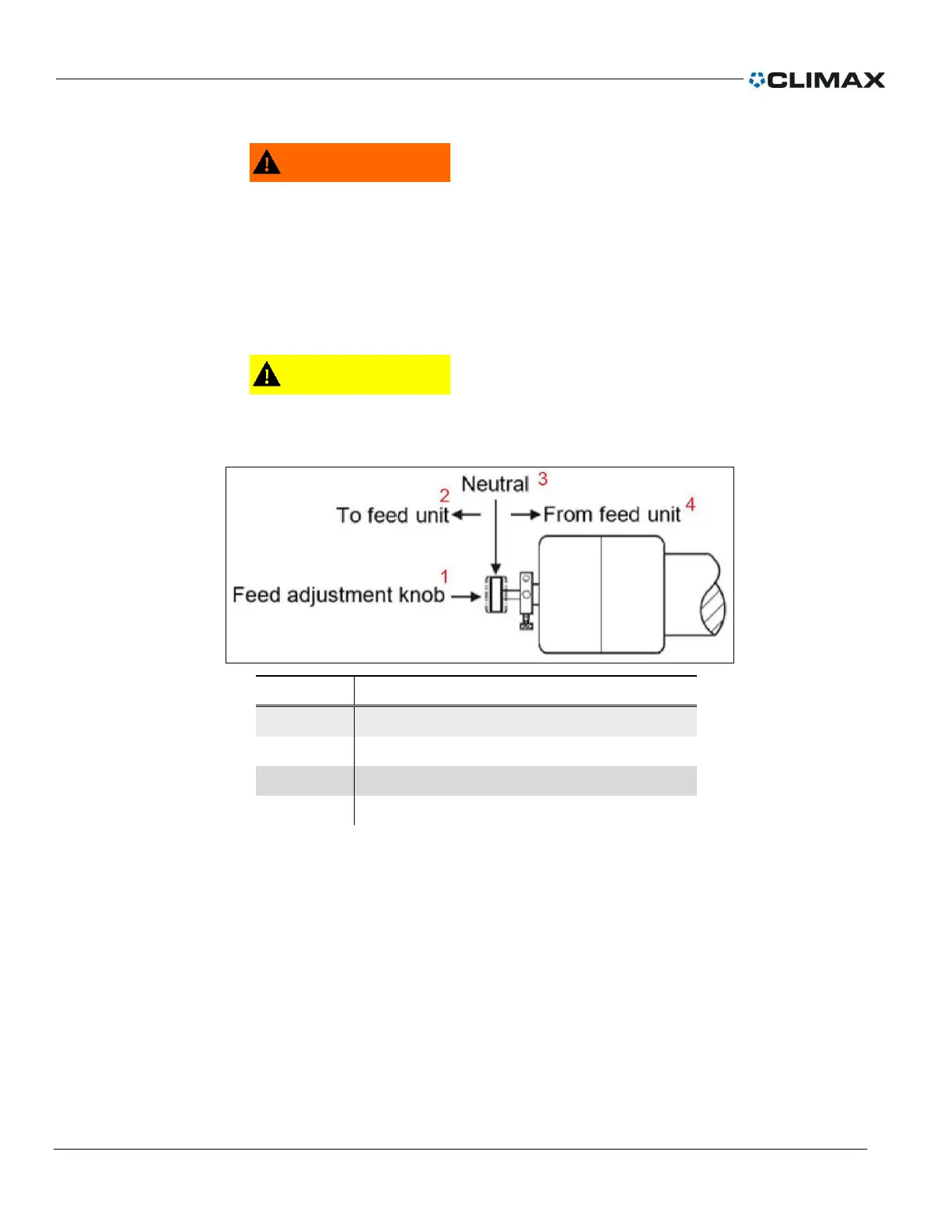

Number
Component
1
Feed adjustment knob
2
To feed unit
3
Neutral
4
From feed unit
3.7.2 Neutral (no feed)
In neutral, the lead screw can turn in either direction. To verify this, insert a hex
wrench into the lead screw dial and turn the dial. If the machine is in neutral, the
wrench will turn freely in either direction.
3.7.3 Feed away from the axial feed unit
Engage the feed by pushing the feed adjustment knob with one hand and slightly
turning the lead screw dial with a wrench until you feel the unit engage. When the
feed unit engages, the dial will turn counter-clockwise only.
