3.11.1 To lock the tool carrier on the bar for other operations
1. Loosen the lock screw on the side of the tool carrier.
2. Tighten or loosen the adjustment screw.
3. Tighten the lock screw to keep the adjustment screw in position.

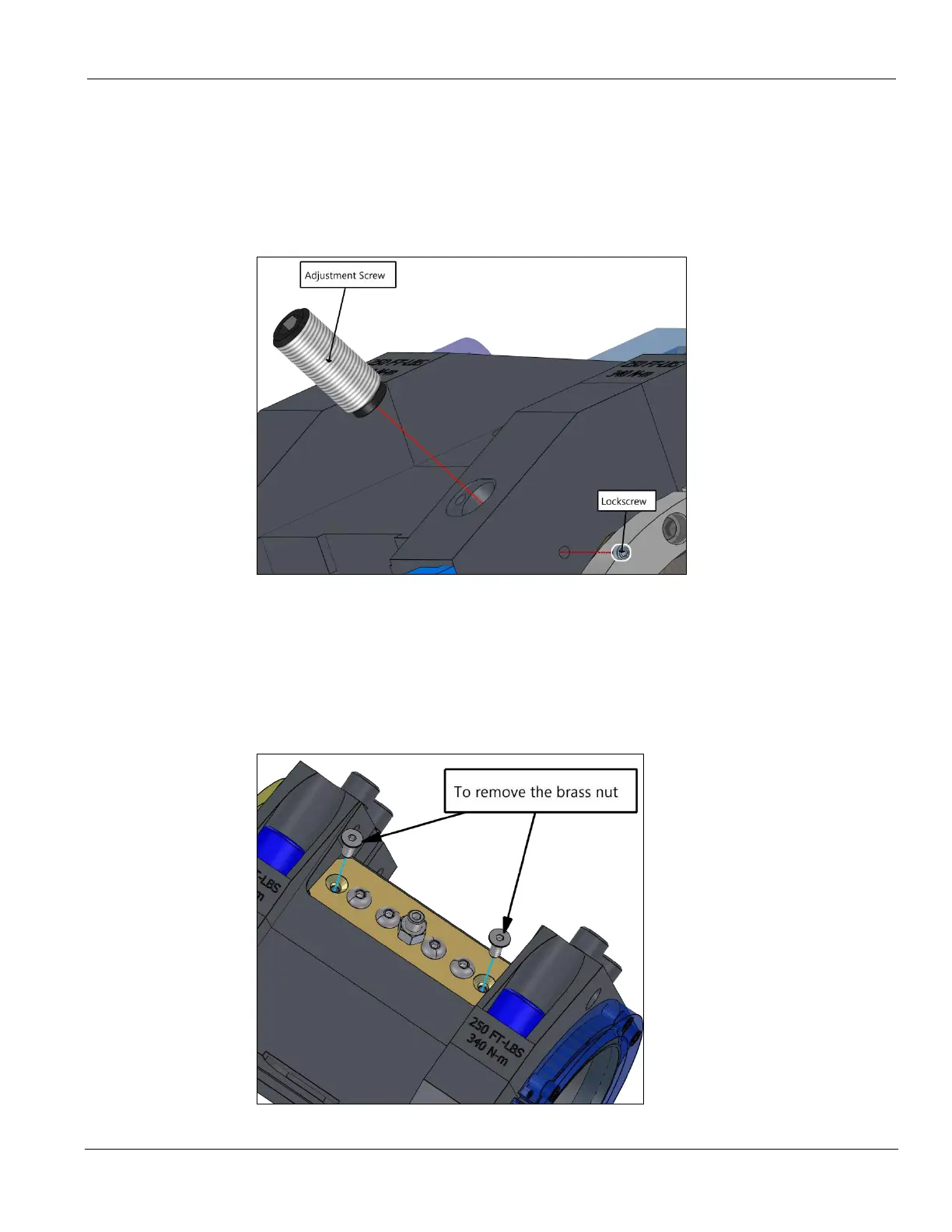

FIGURE 9. ADJUSTMENT SCREW (LEFT) AND LOCK SCREW (RIGHT)
3.11.2 Do the following to remove the brass nut:
1. Do not remove all the screws.
2. Remove the screws on each end of the brass nut.
(If there is too much play in the brass nut, the center set screw can be tightened.)
FIGURE 10. REMOVING THE BRASS NUT
