Climax BB6100 - Boring Head Setup

Page 36 BB6100 Operating Manual
3.11 Boring head setup
1. Select the required parts using the
“Boring head tool range” table.

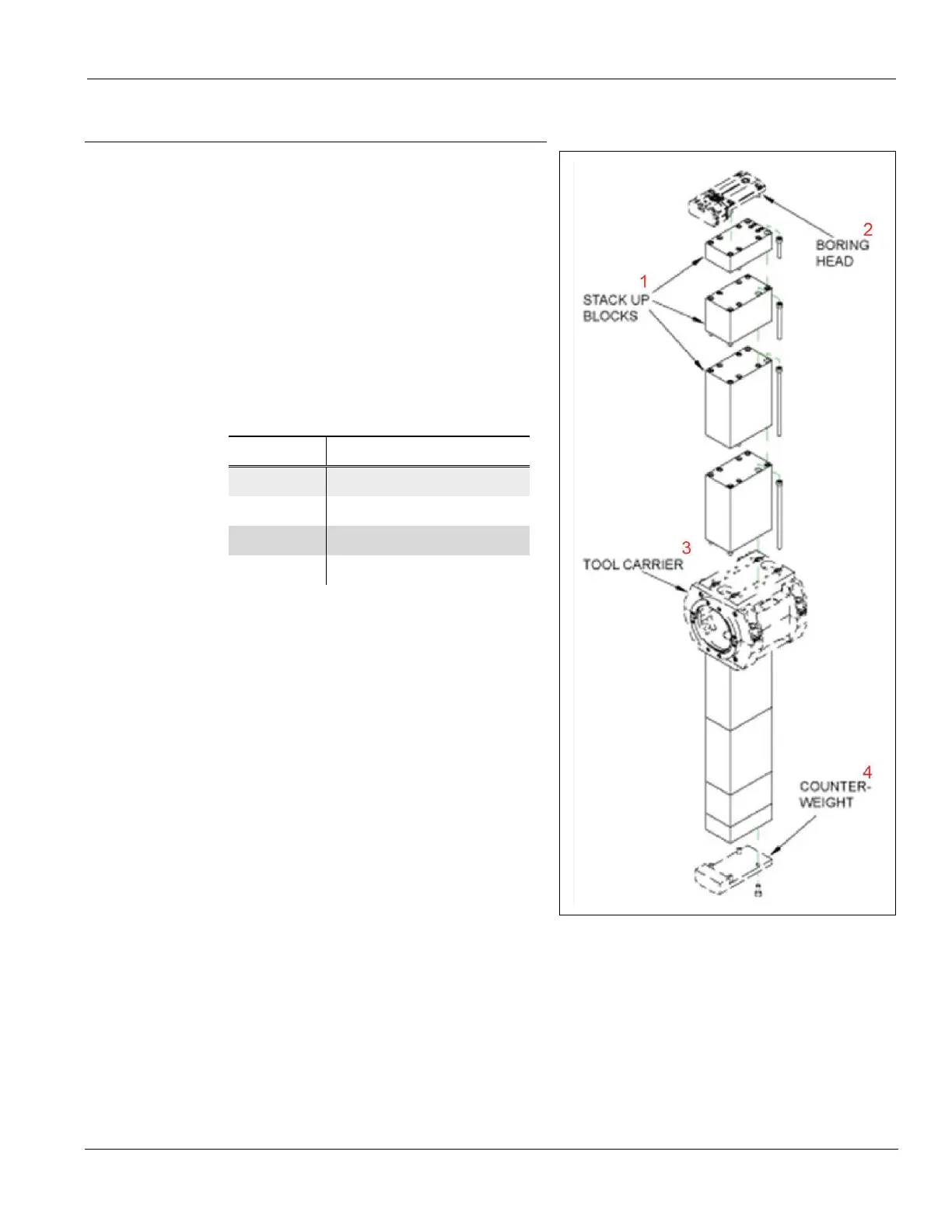

2. Using the drawing as a guide,
assemble the stack up blocks on to
the tool carrier symmetrically on
both sides of the tool carrier, from
tallest to shortest.
3. Mount the boring head and the
counterweight on the stack up
blocks.
Number
Component
1
Stack-up blocks
2
Boring head
3
Tool carrier
4
Counterweight
