P/N: 57017, Rev. 3 Page 41
CAUTION
The facing head is operational in only one direction. Check that the
bar rotates in the correct direction the tool bit faces appropriately.

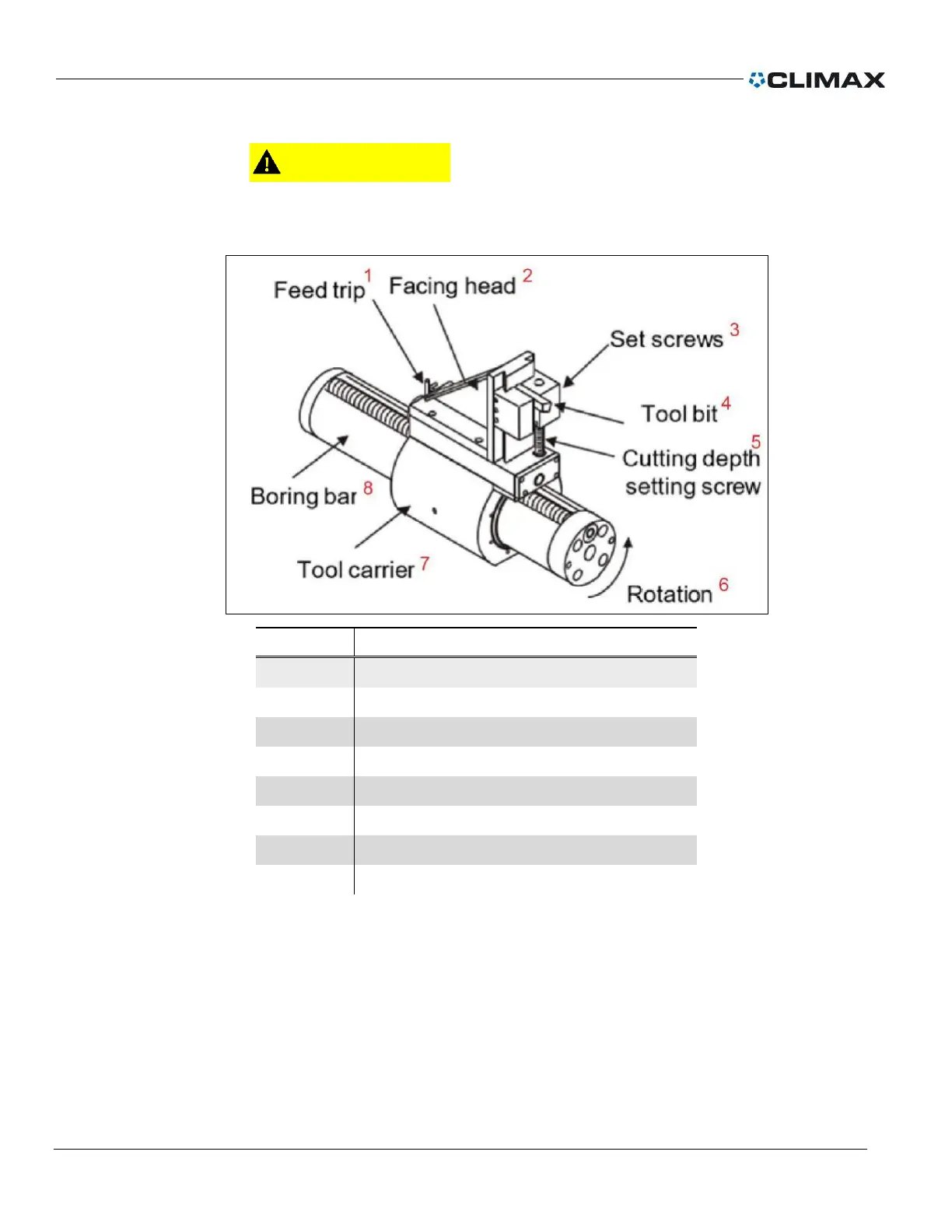

Number
Component
1
Feed trip
2
Facing head
3
Set screws
4
Tool bit
5
Cutting depth setting screw
6
Rotation
7
Tool carrier
8
Boring bar
4. Set the depth of cut by adjusting the screw.
5. Engage the automatic feed trip. The trip mechanism produces radial feed from 0
(no trip) to 0.010" (0.254 mm). The farther down the trip rod catches on the trip,
the greater the feed. Multiple trip rods increase the rate of feed.
