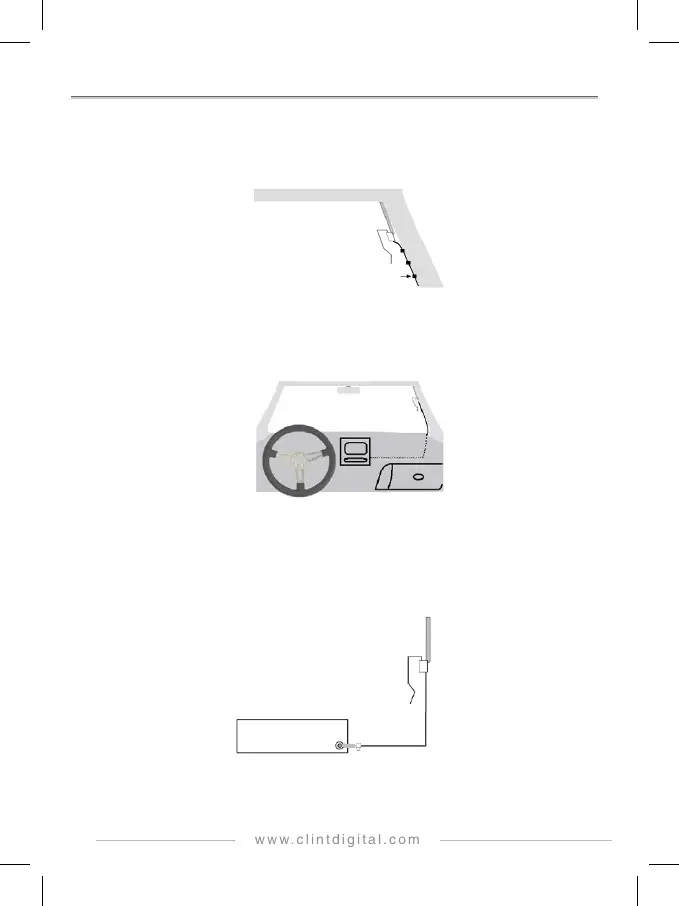

4.5 Secure the antenna cable along the edge of the side windshield.
a) Clip the supplied 3 mini-clips on the antenna cable just below the antenna.
b) Gently peel off the clips’ adhesive separator.
c) Paste the clips along with the antenna cable on the edge of the windshield.
5 Route the antenna cable within the car interior.
Route the antenna cable along the left side edge of the windshield and then route the antenna
cable within the car interior to the DAB receiver, make sure the antenna cable does not
interfere with the safe operation of steering wheel, air bags, and seatbelts or other equipment.
6 Connect to the DAB receiver.
6.1 Power off the DAB receiver.
6.2 Plug the SMB connector at the end of the antenna cable into the DAB receiver’s DAB
antenna input connector.
6.3 Power on the DAB receiver and start using your DAB receiver with the DAB antenna.
NOTE: To achieve best performance, Antenna 1 must not be placed over a UV protection layer, while
there is no such restriction to Antenna 2.
