Antenna Installation
Overview
Caution:
1. Please read the detail section of the installation procedure carefully prior to the actual
installation.
2. This glass-mount DAB antenna is exclusively for use inside the vehicle.
3. It is not suitable for use on reflective-coated glass.
4. Do not bend or damage the antenna.
5. The antenna should be installed on the passenger side of the front windshield, or the rear
windshield for safety.
6. The car’s DAB receiver must provide a 12V phantom power to the SMB connector for the DAB
antenna.
Warning: Once the antenna is adhered to the windshield it cannot be relocated. Please test the
antenna in its location before removing the adhesive separator and permanently fixing it to the
windshield. The antennas that have been adhered in location are not valid for return and
warranty claims.
Procedure
1 Front windshield installation
1.1 For the best performance in the digital reception, the glass-mount antenna must be
placed on the top right corner and on the inside of the front windshield. If there is a
UV protection layer across the top of the windshield then you must place the DAB
antenna with Antenna 1 at least 5cm below the layer.

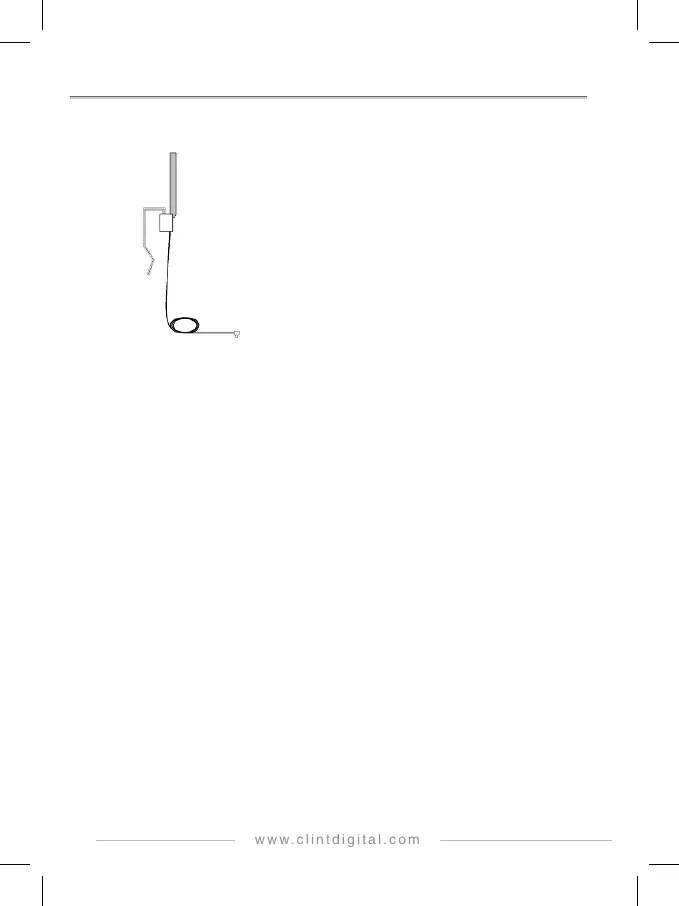

❷
Antenna 1
❷ Antenna 2
➌ Signal Booster
➍ Antenna Cable
➎ SMB Connector
➍
To Next Page
