CLIVET CSRN-XHE2 Series - Connections Performer by Customer; SA5 Input

M08F40N15-02 CSRN-XHE2 15.2-44.4 13

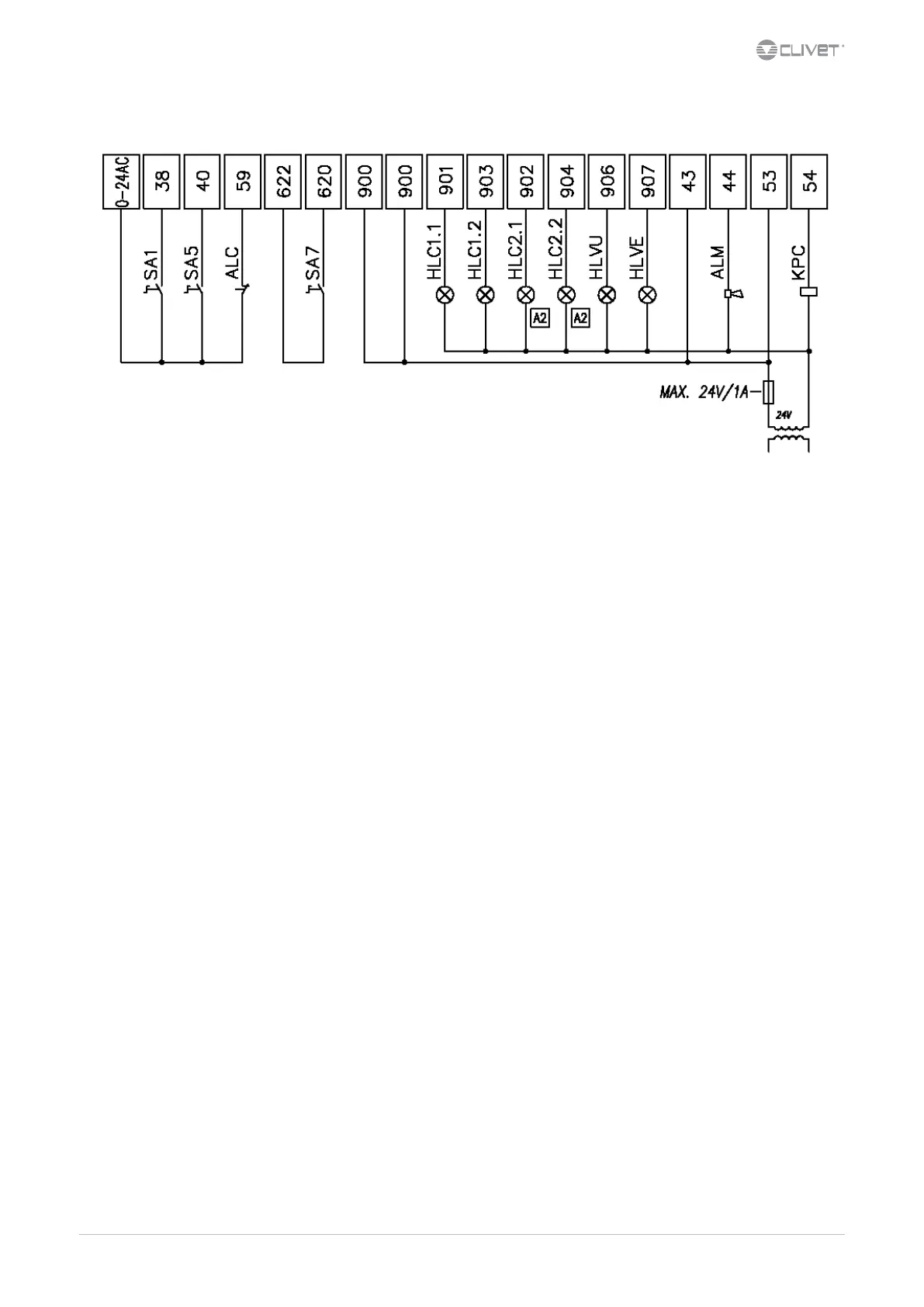

6.5 Connections performer by customer
ALC Free contact from signalling system of re alarm HLVU Indicating light of the supply fan status
ALM cumulative fault signal KPC Pump control of the integration coil
AP25 Modulating extraction module with 0-10V signal SA1 Remote ON/OFF selector
EXT1..4 Ambient extractor potential-free contact SA5 Settable input
HLC1.1..2.2 Compressor status signal lamp SA7 Enabling selector to the umidier manual discharge
HLVE Indicating light of the return and/or supply fan status
6.6 SA5 input
SA5: Summer / Winter mode remote change
Summer - winter mode remote change P008
enabled by SA5* 0
enabled by thermostat 1
enabled by BMS 2
automatic 3
* Fan-only function not available
function Fan only P263
disabled 0
enabled by BMS 1
enabled by SA5* 2
*SUMMER - WINTER change mode by SA5 not available
