CLIVET CSRN-XHE2 Series User Manual

M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 37
10 Accessories

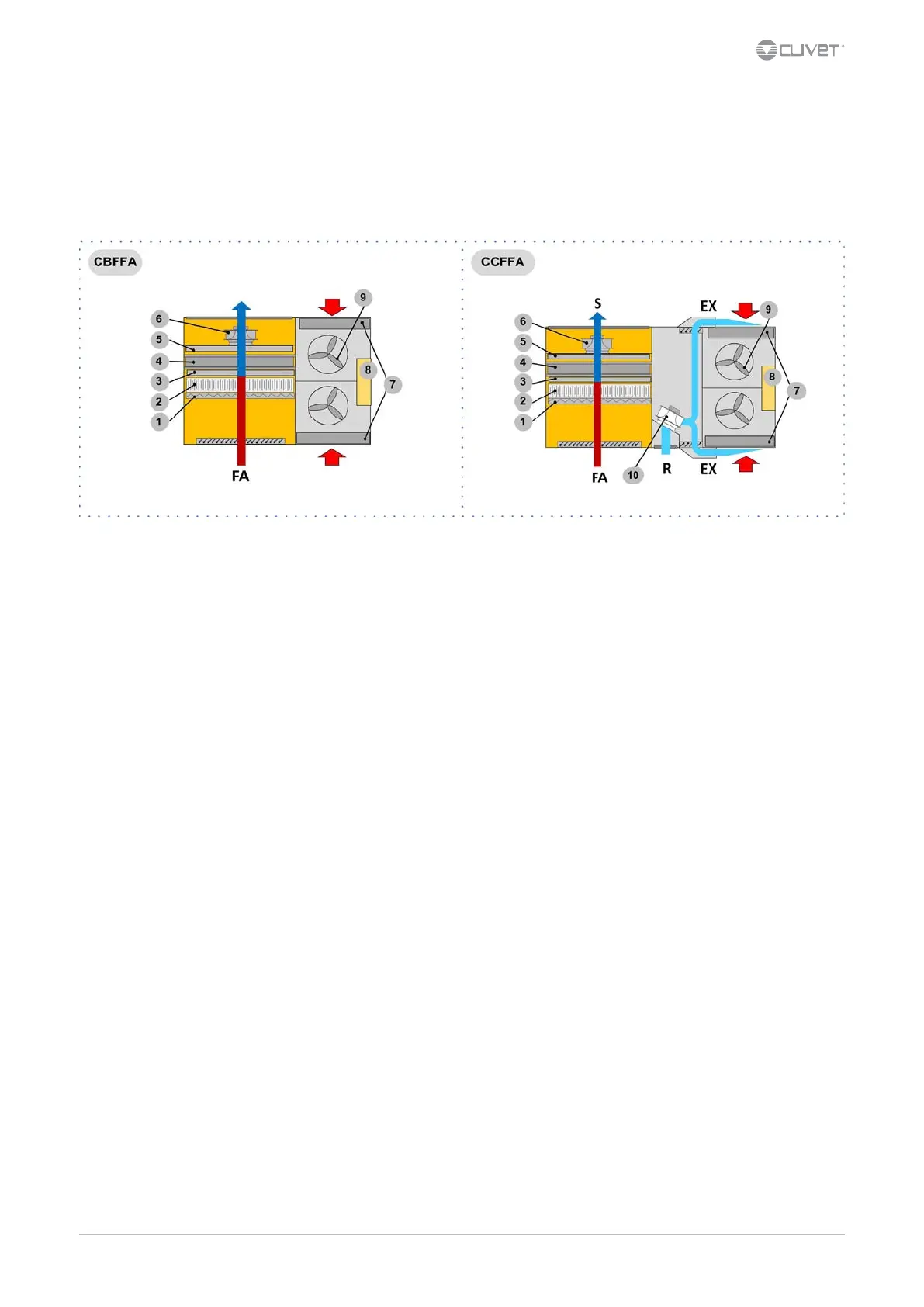

10.1 Congurations
CCK Conguration with double fan section for recirculation, fresh and exhaust air
CCKP Conguration with double fan section with fresh air and THOR thermodynamic recovery
1. G4 eciency lters + H10 equivalent electronic lters
2. Hot water exchanger or electric heaters
3. Handling exchanger
4. Hot gas reheating exchanger
5. Return + supply fan section
6. Source side exchanger
7. Electrical panel
8. Exhaust fan
9. Overpressure damper
10. Thermodynamic recovery exchanger, THOR
R Return air FA Fresh air
S Supply air EX Exhaust air
10.2 Heater humidier
Start-up
Check the water supply pressure is not higher than 3 bar.
Open the ow rate measuring device/regulator and adjust it on 50% of the value in the table.
Wait 10/15 minutes so the heater soaks and starts.
Adjust the water ow rate by choosing whether to give greater importance to comfort or containment of the water consumption.
With an EXCESSIVE ow rate, it is possible for the water to ow in the channels or overow from the bowl.
With INSUFFICIENT ow rate there is no humidier action.
The heater is correctly wet if a veil of water shows on the external surface (with fan still).
Maintenance
The duration in time and absence of faults require constant cleaning which periodicity depends on dierent factors:
concentration of dust in the air, water hardness, type of operation, etc..
When cleaning comply with the following prescriptions:
1. Close the water shut-o shutter
2. Remove the evaporating heater
3. Remove the casing panel corresponding to the humidier
4. Remove the water distributor
5. Remove the evaporating heater
6. Was evaporating heater: the evaporating heater can be washed with water against lime deposits, but must be replaced if the deposits
are of limescale type
7. Clean the spraying pipe, found on the alveolar distributor, with metal brush and steel points for the small holes
8. Check the water connection pipe is in good conditions, without holes or cuts that may cause water to leak
9. Wash inside the tank and the various components
10. Remount the evaporating heaters. ATTENTION: The evaporating heaters have a pre-set position to respect the air and water direction,
that must be in counter-current. The incorrect position jeopardises the good operation and can cause owing of the water downstream
11. Upon dehumidier re-start, check operation again
