CLIVET WSAN-XIN 21 - Domestic Hot Water Module Accessory

17
5 - ELECTRICAL CONNECTIONS

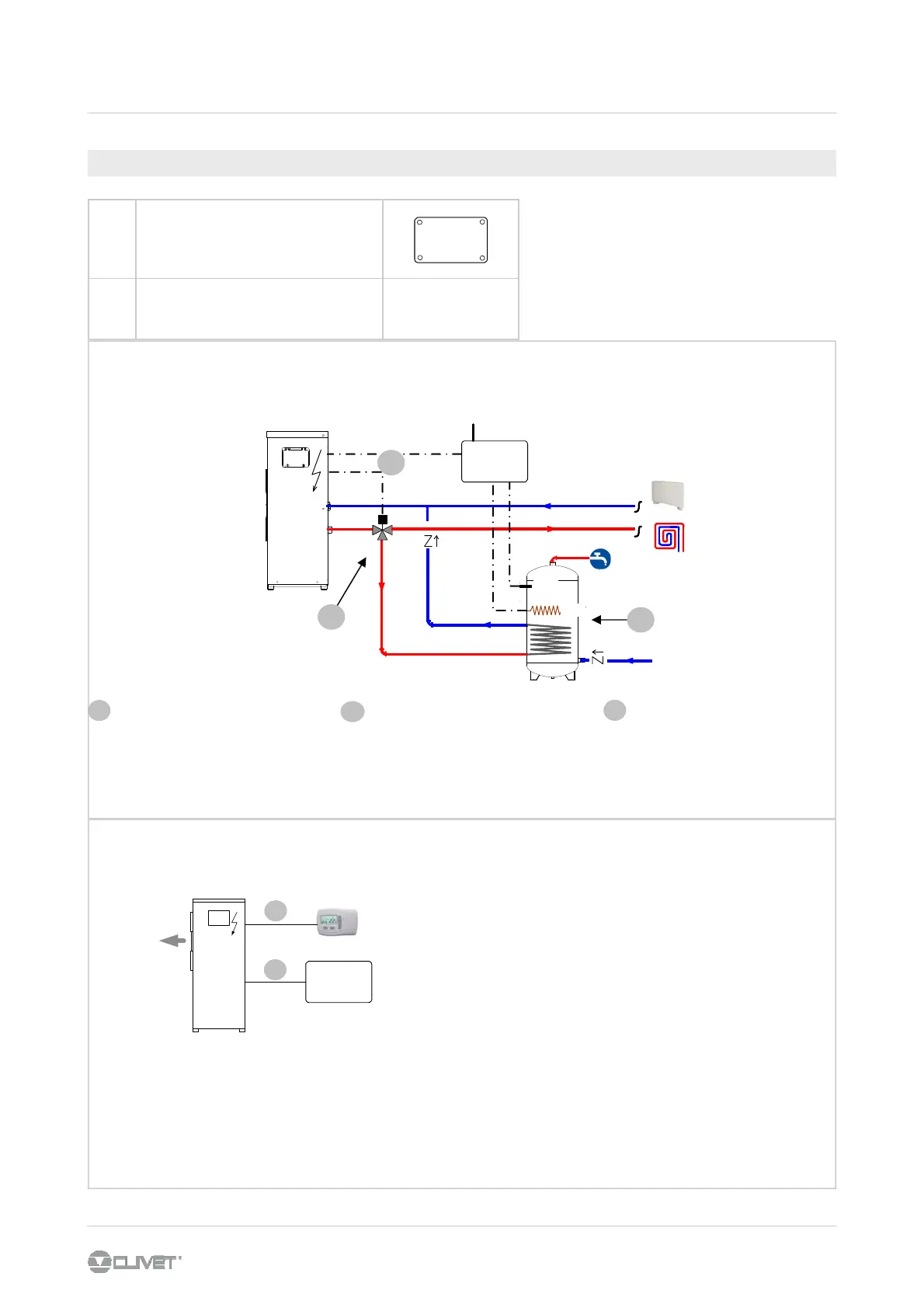

5.10 DOMESTIC HOT WATER MODULE
ACCESSORY
PER90001 / 3 (CMACSX)
CMACSX
1
DHW module
( L.300 x P.220 x H.120 )
2
Water temperature probe
Cable length 5 mt
BT7
3-way valve
accessory 3DHWX
B
C
D
Max. = 100 mt.
Cable section: Min. 0,35 Max. 1 mm
2
Electric heater provided by the customer
CMACSX
LAN net: A + B = 100 mt. Max
CMACX : DHW module
A
B
CMACSX
BT7
R
LINE INPUT
D
C
B
The resistance R can operate simultaneously to the
compressor.
Eg:
• antilegionella scheduling
• BT7 < (setpoint ACS - 19°C)
