B2.3 Procedure: MIG-MAG Pulse Synergic
The procedure Pulse Synergic can also be designated as single knob operation with
precise setting. The power source processor provides a characteristic curve for any
combination of the vaues Material, Gas and Wire diameter. Set these values on the power
source operation panel. The characteristic curve working point is selected with the
potentiometer arc output. You are then able to carry out a precise setting with the Arc
length potentiometer. The potentiometers are arranged on the operation panel of the wire
drive unit.
Please proceed as follows:
- Switch machine on.
- Select Operating mode by pressig the key:
In our example the operation mode 4 cycle has been selected.
- Set the Material to be welded:
In our example Aluminium/Silicon is used.
- The Gas used has to be set with the following key:
Argon is used here.
- Set the Wire diameter with the following key.
In the example the wire diameter used is 1,6 mm.
- Select the Procedure by pressing the following key:
When weldig with Pulse Synergic, the third LED
from the top must light up (see photo).
- Set Display 1 by pressing
the selector key until m/min
for the wire drive speed
appears and Display 2 until
A
Set
for the current set value
appears.

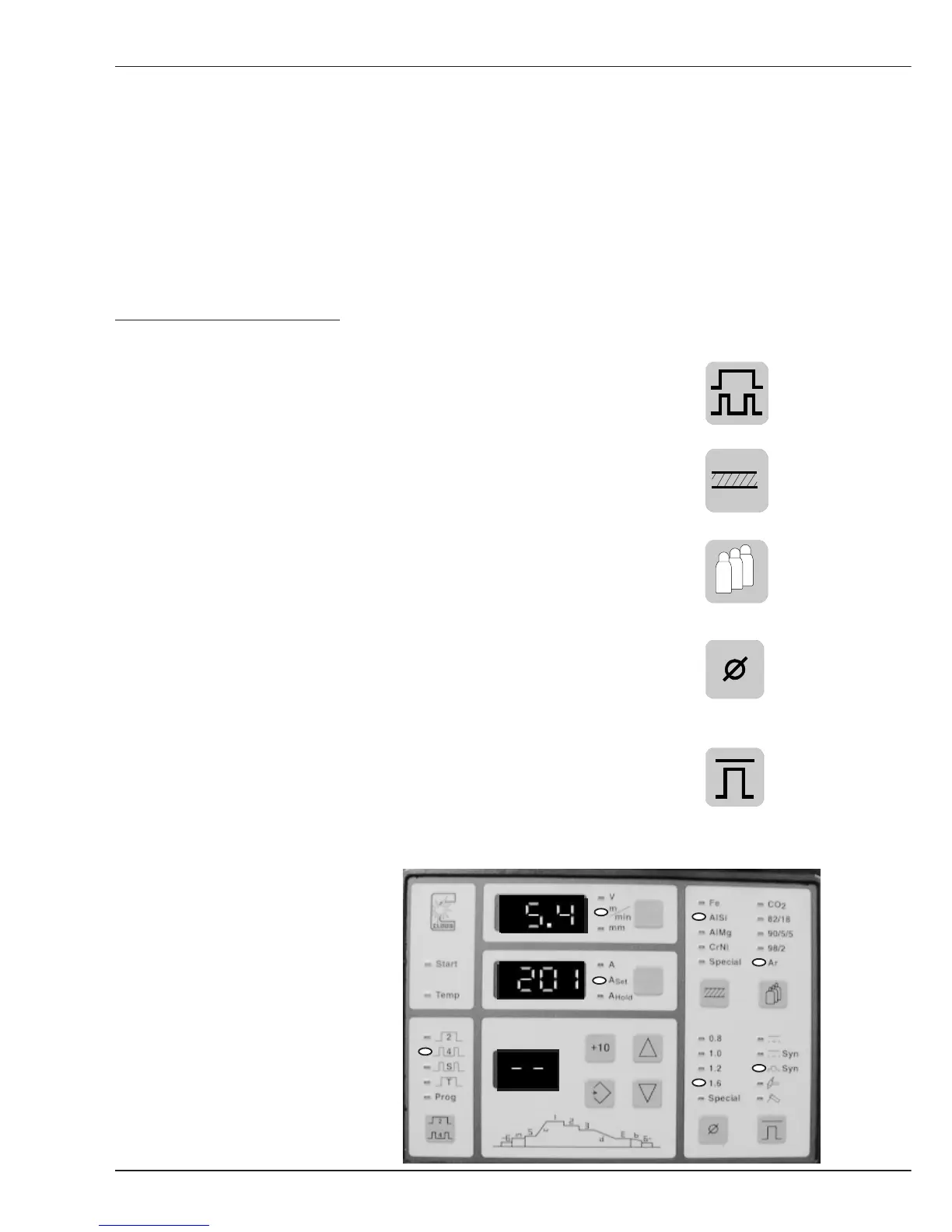

After setting, the LEDs light up as
shown on the photo.
