MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 73 of 126

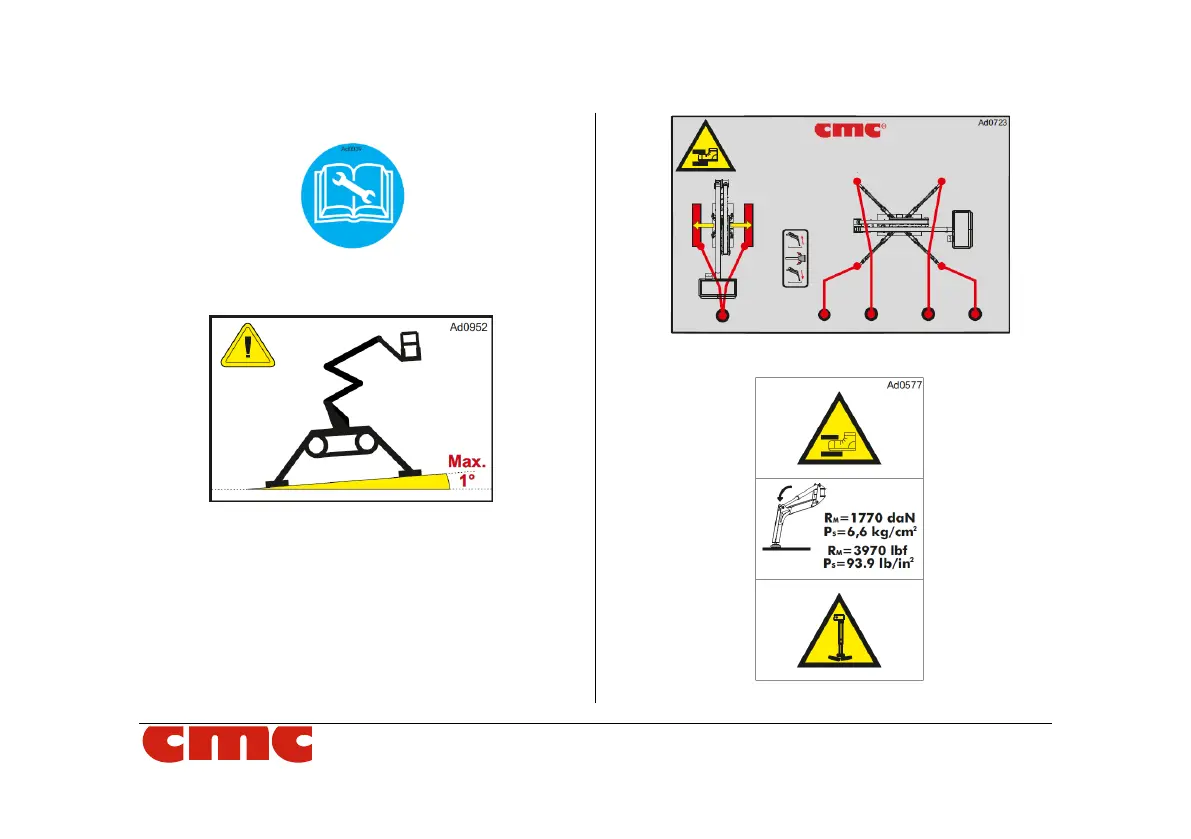

Picture 45: use and maintenance manual box.
Picture 46: indication of maximum
frame inclination.
Picture 47: outriggers control station.
Picture 48: maximum load on outriggers.
