MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 76 of 126

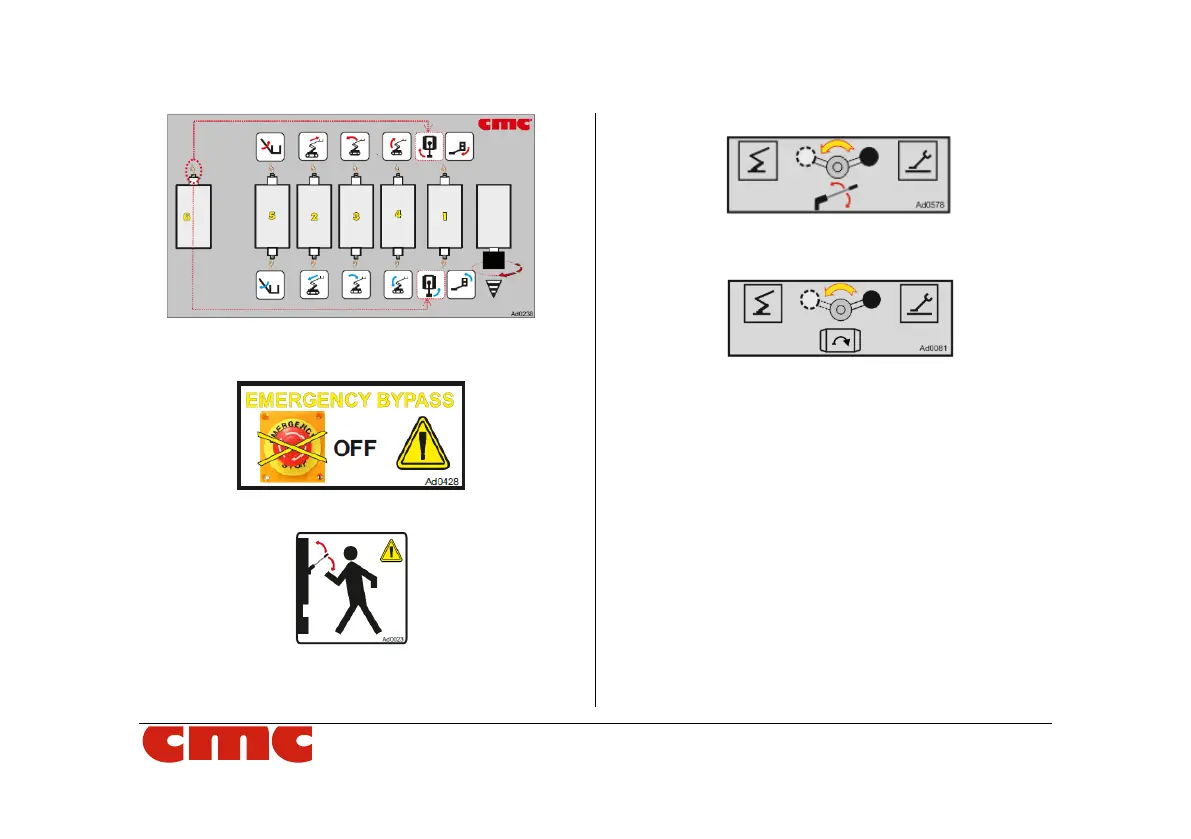

Picture 64: emergency station on turret.
Picture 65: emergency bypass.
Picture 66: indication of
emergency manual pump.
Picture 67: aerial part/outriggers exchange tap
in case of manual pump.
Picture 68: aerial part/outriggers exchange tap
in case of electropump.
