MAN.219 Rev.8 ENG - Use and maintenance manual S19N page 21 of 71

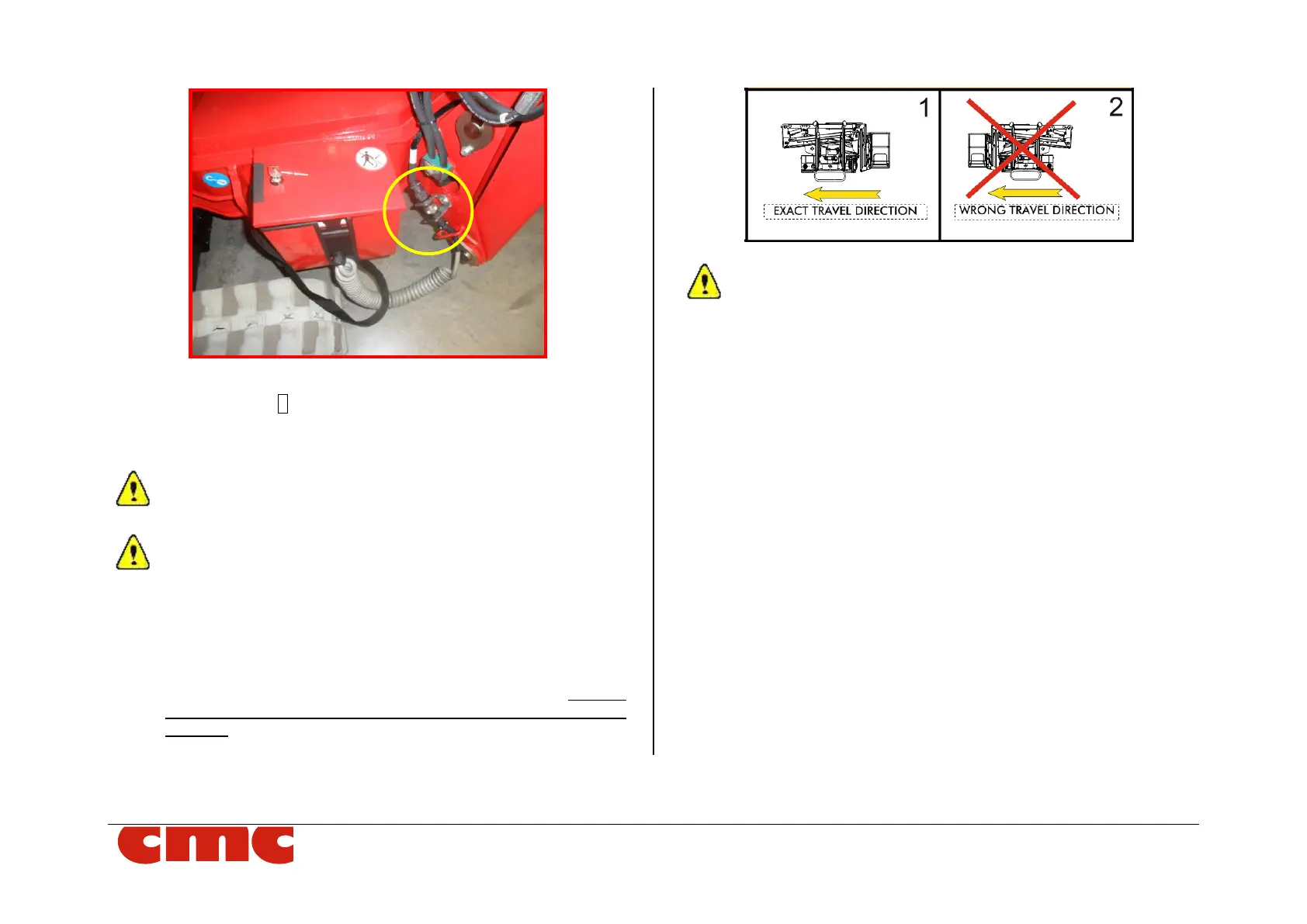

Picture 13: storage place of wired remote control and its connection.
2. Set the selector 7 (Picture 9) to the right on the travel symbol.
3. Place the couple of ramps and bring in correspondence of the ma-
chine tracks.
In case of climb on a truck, use loading ramps of adequate size
and strength.
Check that the ramps slope does not exceed longitudinally 17°
(31%) and transversally 10° (18%). Check that ramps are per-
fectly clean from grease, mud, snow or ice.
4. Start the endothermic (or electric*) engine.
5. Control the travel operations slowly and only in the direction
showed in the figure below, by the wired remote control: the bas-
ket, if not disassembled, shall always be placed at the rear of the
machine.
If it is necessary to move the jib during the unloading/loading opera-
tions, it is possible to adjust its inclination through the contempora-
neous use of the dead man parking button P (Picture 9) and the left
joystick J1 (Picture 9) of the wired remote control.
6. When the machine is well positioned on the truck, turn off the ma-
chine engine.
7. Ensure the MEWP to the truck plane (Picture 14).
