MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 69 of 138
4.6.3.2 Closing of the outriggers

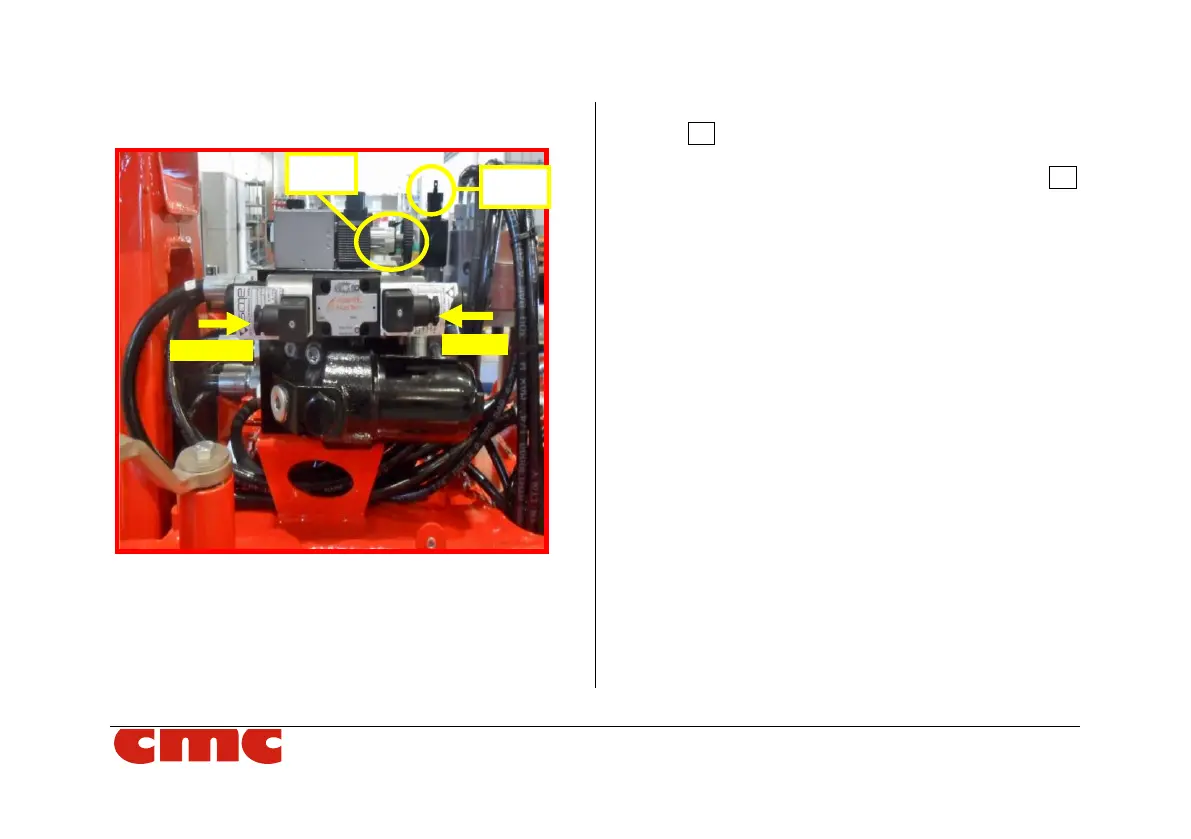

Picture 58: view from the left side of
main inlet group.
The ground operator shall:
• turn clockwise the proportional outriggers valve
OV on the left side of the main distributor by
hand;
• turn clockwise the outrigger override valve VM
(Picture 58);
• move the levers of the stabilization control station
(Picture 39) to recover outriggers and tracks.
The functions of the outrigger’s levers are described in
par. 4.4.2.1.
4.6.3.3 Tracks handling
For the recovery of the machine by means of the travel
of the tracks, two operators are required on the ground
at the main distributor.
The valves for moving the two tracks are mounted
opposite each other:
• the one on the right side (Picture 53), moves the
left track;
• the one on the left side (Picture 58), moves the
right track.
From both sides of the main distributor:
- by pressing the cursor on the left end, the
relative track is translated to the rear;
