MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 89 of 138

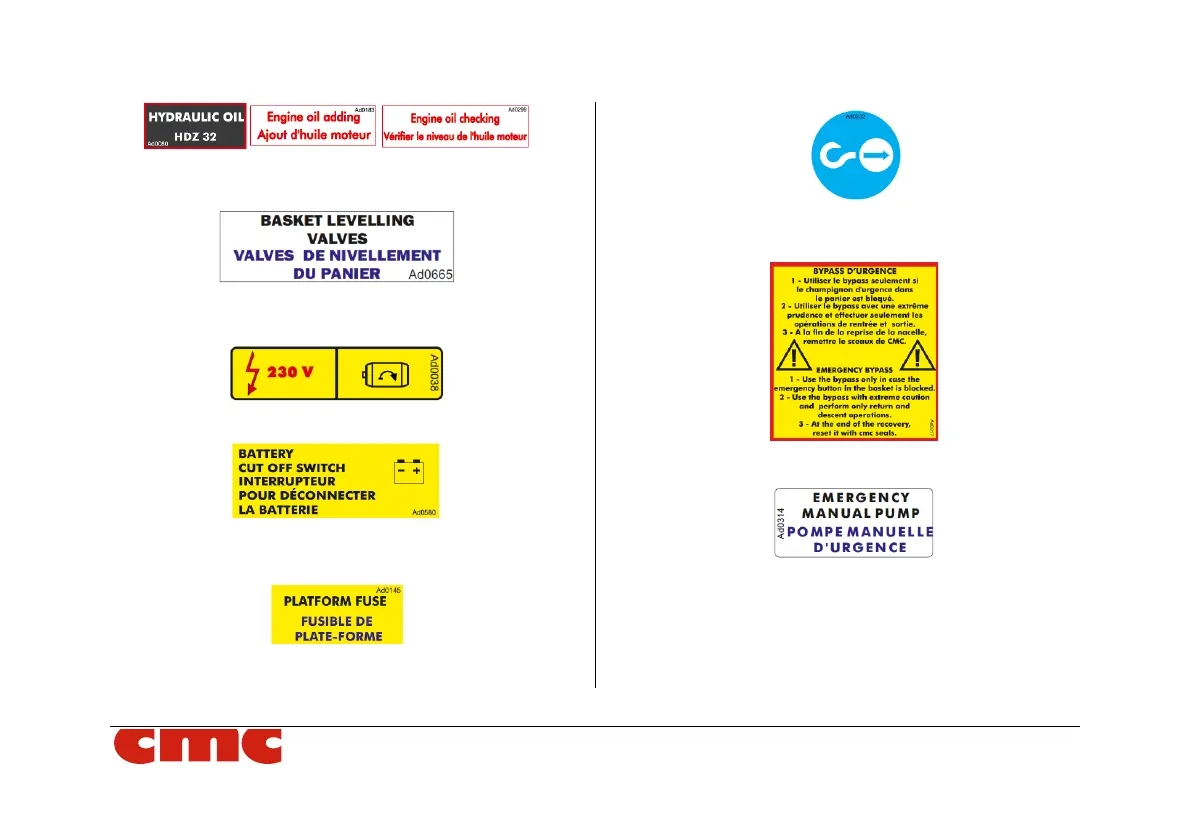

Picture 87: indication for engine oil
Type/refill/checking.
Picture 88: indication of basket levelling valves.
Picture 89: auxiliary electric engines (*optional).
Picture 90: indication for engine
battery disconnection.
Picture 91: indication of platform fuse.
Picture 92: indication of frame coupling.
Picture 93: emergency bypass.
Picture 94: indication of emergency manual pump.
