4. Assemble Side Brackets on bottom Repeater:
• Place one of the Repeaters on a flat surface – ridges facing down. This will be the
bottom repeater.
• Noting orientation -
loosely assemble the side plate brackets on both sides of the
bottom repeater.

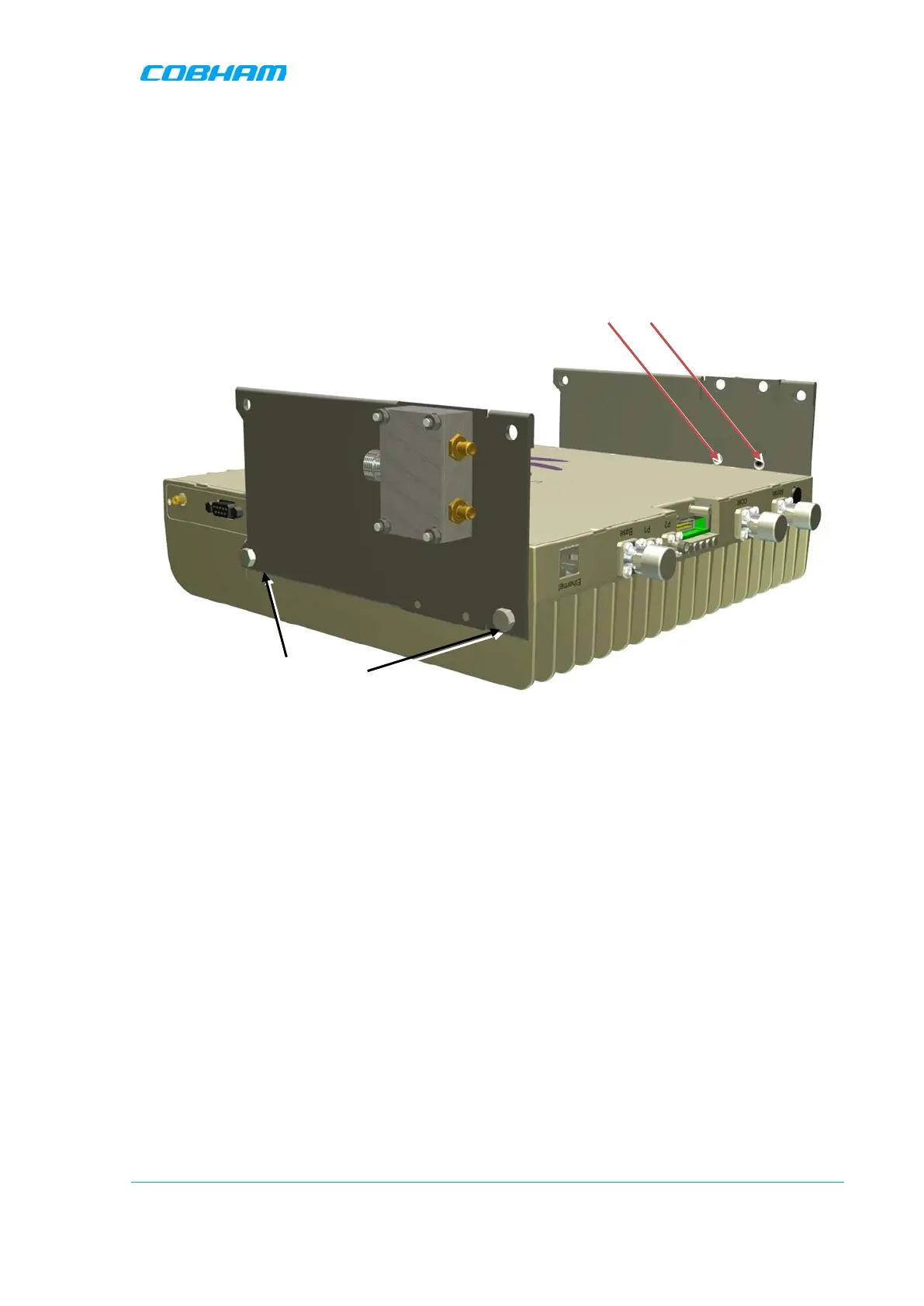

Figure
4-7. Assemble Side Brackets on Bottom Repeater
Secure
Loosely
on each side –
but enough to hold when
assembly is picked up
Assemble RIGHT side
combiner on these holes
and bottom holes
