4.5.2 Choosing the Appropriate Plate
Plates and labels are selected according to the type of repeater combinations in the quad-band
assembly; there are type types of repeaters configurations: Type-I and Type-II.
4.5.2.1 Type-I and Type-II Configuration
Criteria for Type-I and Type-II units is given below; basically it is determined by
how much the plate
covers the LEDs.
NOTE: For all Type-II units - assemble the PLATE and LABEL (Type-I plate is already labeled).

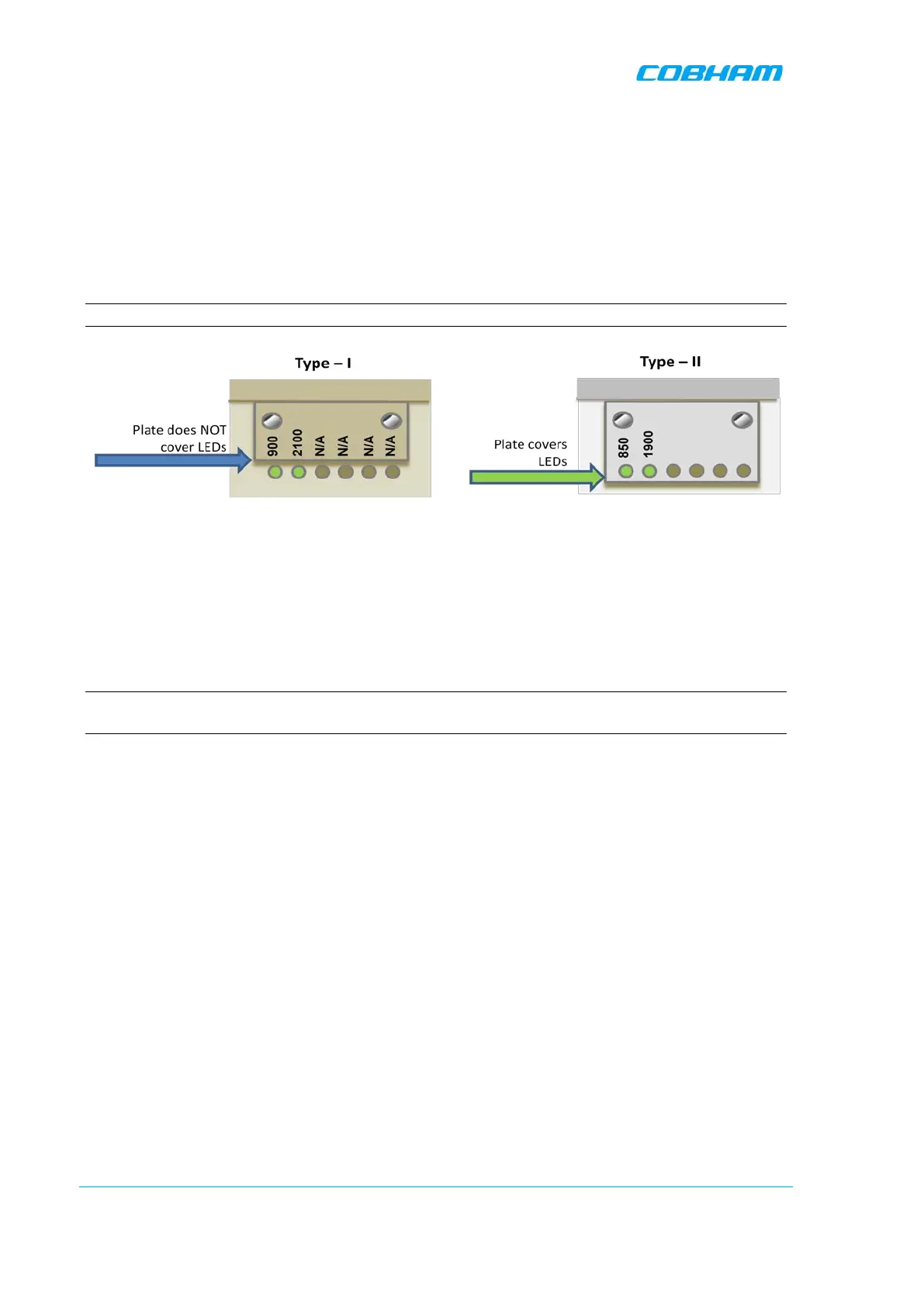

Figure 4-12.Examples of Type-1 and Type-2 Unit Plates
Three different Quad-Band plate types are provided for the following quad-band combinations:
• Both units in quad-band are Type I
• Both units in quad-band are Type II
• One of each Type (Type I + Type II)
NOTE: The band frequencies represented by Band-1 and Band-2 are located at the side of the
repeater. (e.g for DIGImini 900/2100, “Band 1” is 900 and “Band 2” is 2100).
