4.5.2.2 Both DIGImini Units are Type I
NOTE: The plate is labelled Band-1 and Band-2 (no need to assemble the label on the plate); the
relevant bands are on the side of the corresponding repeater.

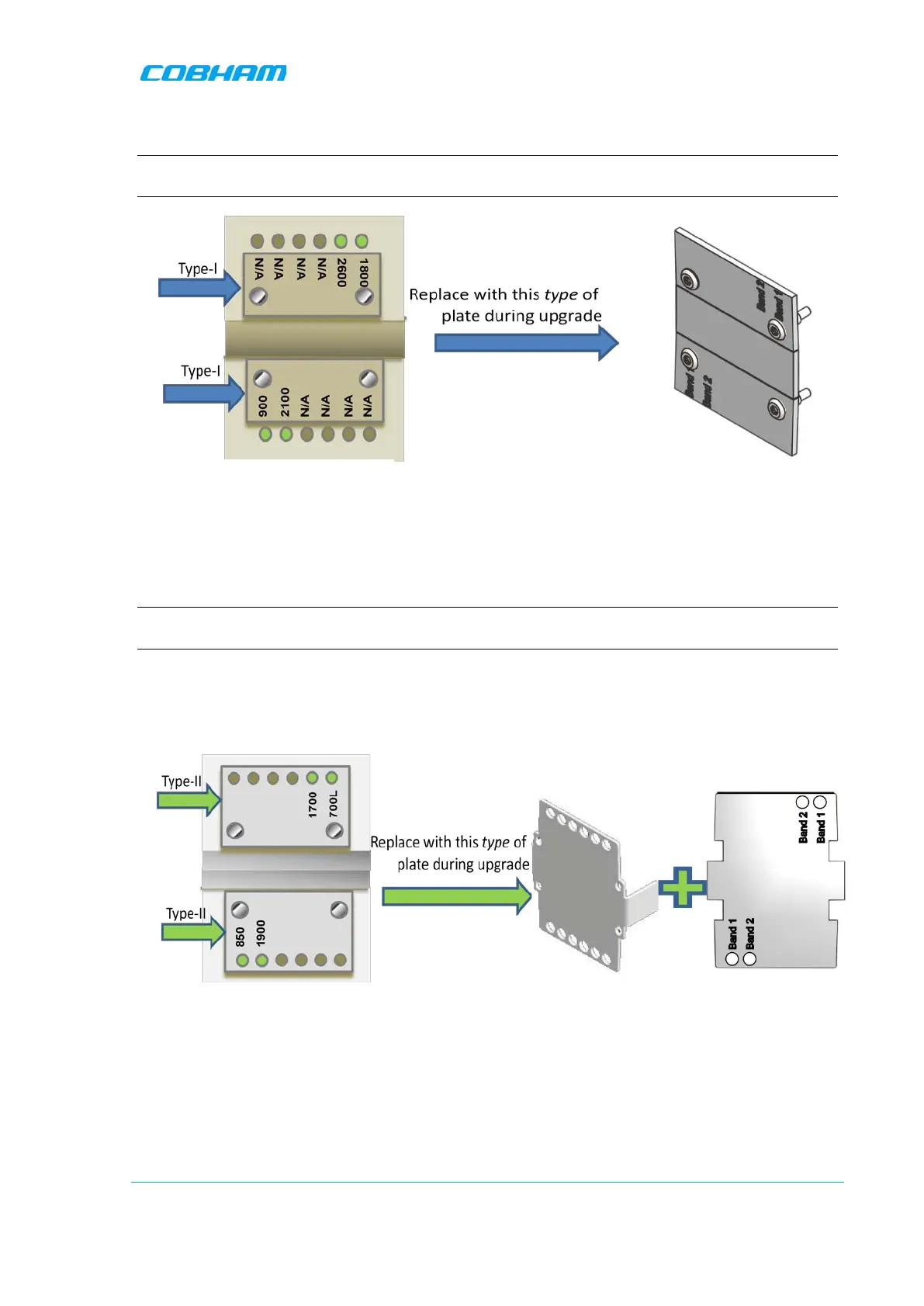

Figure 4-13.Examples of Plate Used When Both Units are Type-I
4.5.2.3 Both DIGImini Units are Type II
NOTE: Assemble the label onto the plate; the relevant bands are on the side of the corresponding
repeater.
Use the following tab and label type.
Figure 4-14.Examples of Plate Used When Both Units are Type-II
DIGImini Type II Units
New Quad-Band Plate and Label
for DIGImini Type II Units
Existing Plates on both
DIGImini Type I Units
To Next Page
