4.5.2.4 Combination of Type I and Type II DIGImini Units
NOTE: Assemble the label onto the plate; the relevant bands are on the side of the corresponding
repeater.

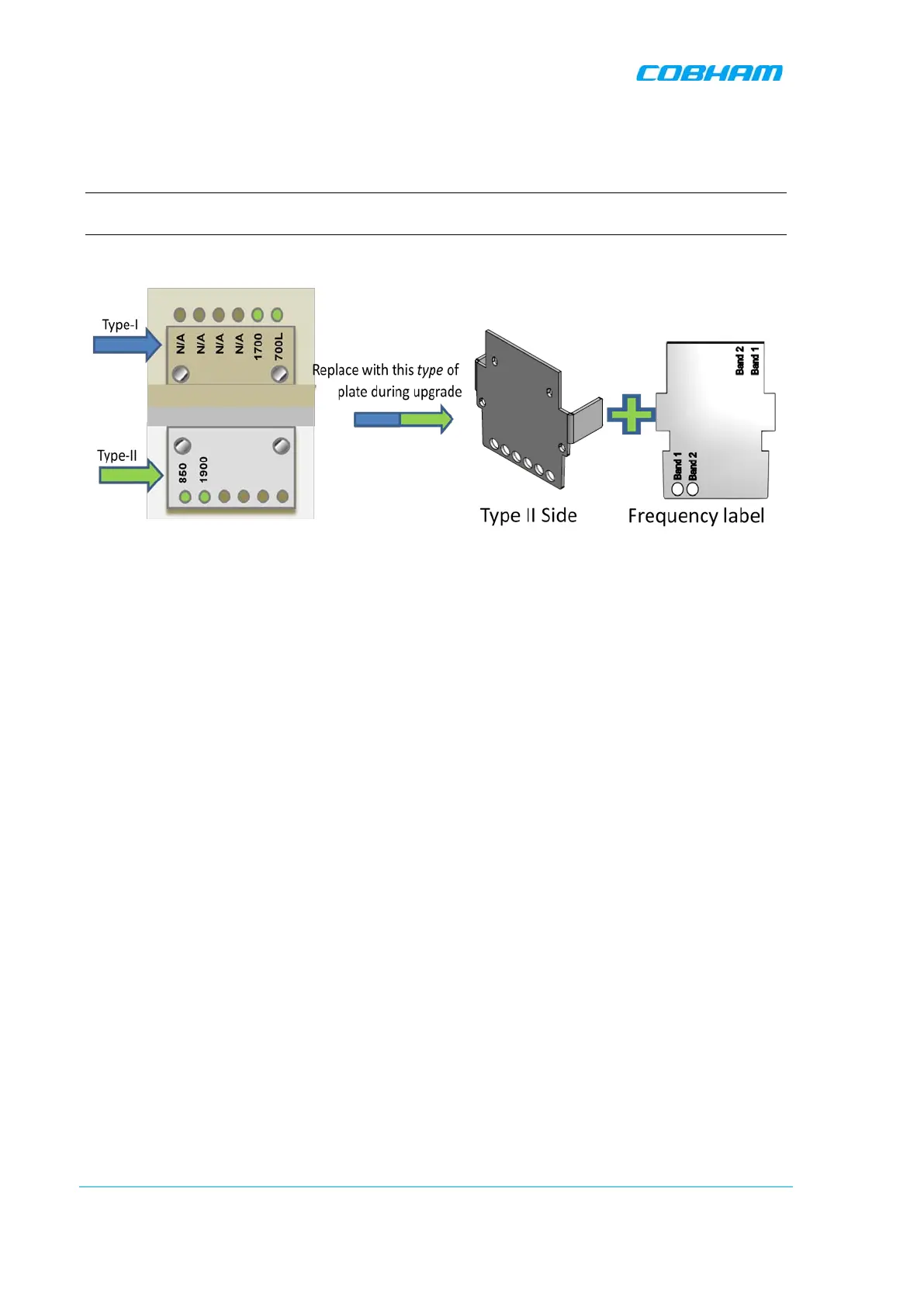

Figure 4-15.Examples of Plate Used When Both Units are Type-I
Type I Side
