4.5.3 Connect SMA Jumper Cables
Connect SMA N-type jumper cables between Combiners and Repeater antenna ports
according to the illustration below:
NOTE: Be sure to use recommended Torque value.
Jumper Type Connect Between
Short (170mm) Connect between connectors labeled
1
(i.e
1 to 1
)
Short (170mm) Connect between connectors labeled
4
(i.e
4 to 4
)
Long (340mm) Connect between connectors labeled
2
(i.e
2 to 2
)
Long (290mm) Connect between connectors labeled
3
(i.e
3 to 3
)

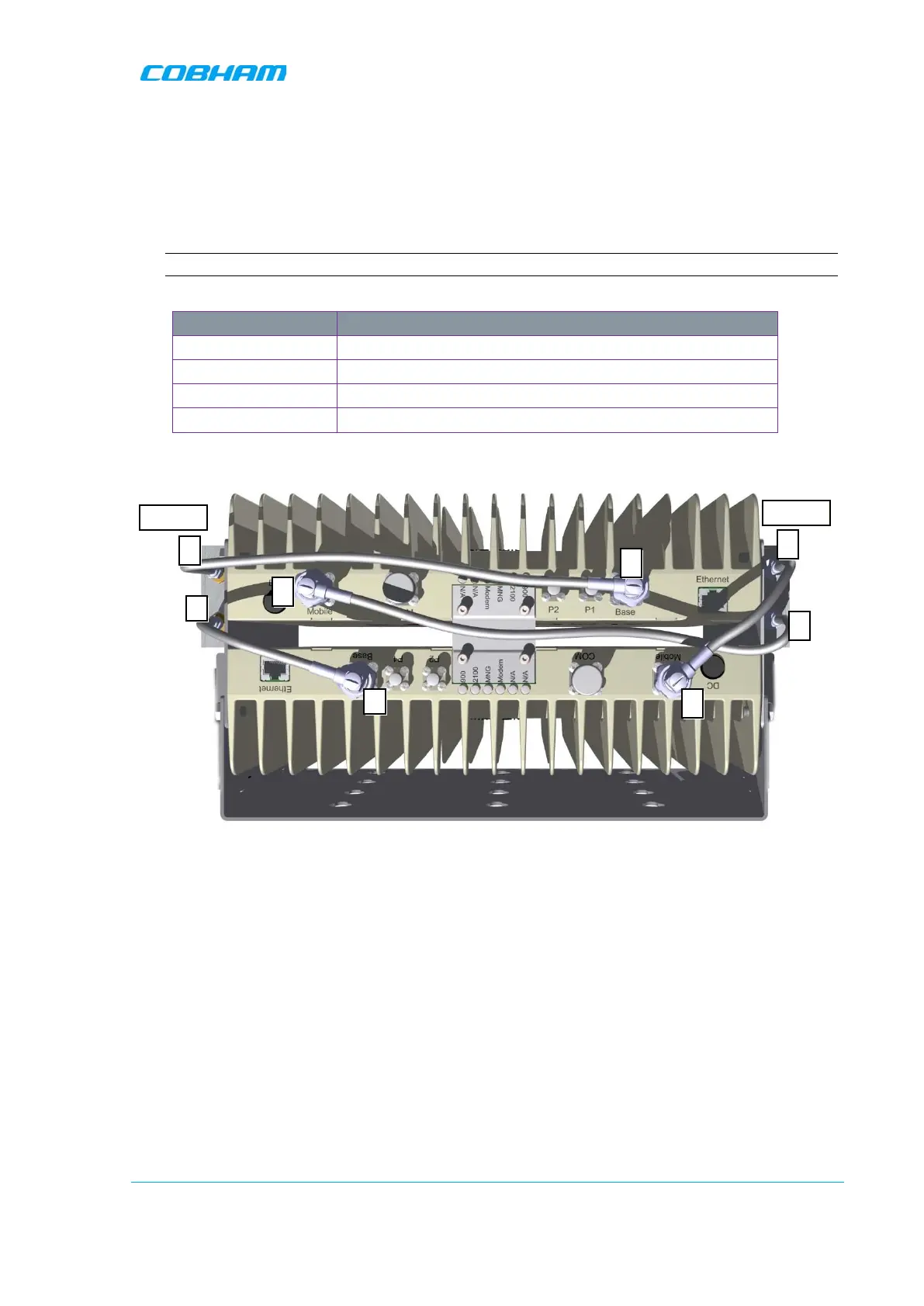

Figure 4-16. DIGImini Quad-Band Jumper Connections
BASE
Mobile
2
