4.5.4 Mount and Secure Quad-Band Assembly
1. Referring to the following figure:
•
Carefully and securely pick up the assembly.
• Hang the assembly on the wall bracket, fitting the
looser wall-side Repeater Side Bracket
screws on the wall bracket.
• Tighten the loose screws on each side.

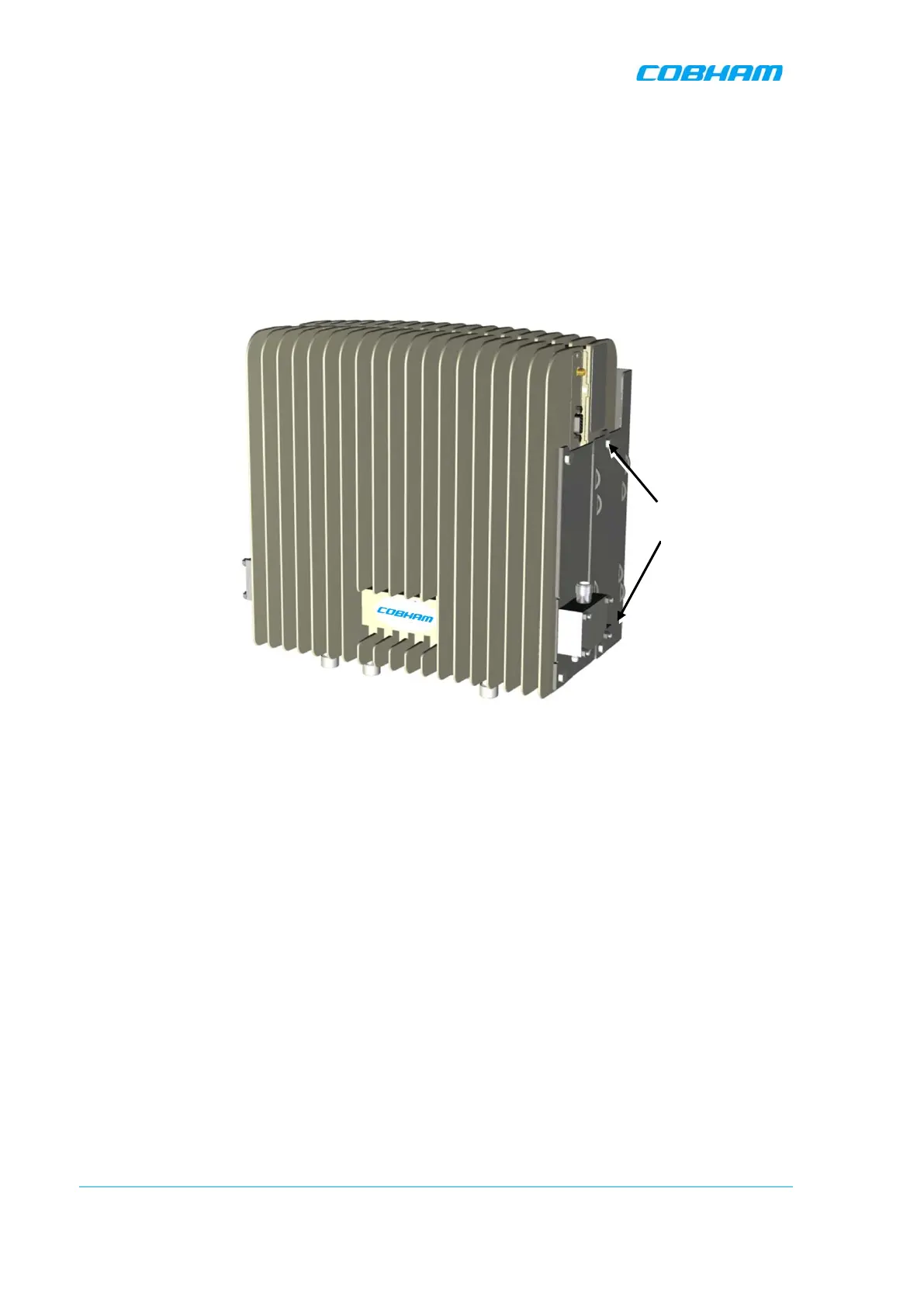

Figure 4-17. Mount Quadband Assembly on Wallbracket
Tighten screw
on wall-side
bracket
