DIGIMINI EMEA/APAC/AUSTRALIA REPEATERS
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage Date: 11-Oct-15 www.cobham.com/wireless
Document number: 00030UMCD Rev. 5.0
Page |4-15
2. Two Power Supplies should be assembled on the wallbracket (one on each side of the
assembly). Mount one (if this is an upgrade and one is already mounted) or both (if this is a new
installation) as follows:
• Thread two ties through the loops in the bracket.

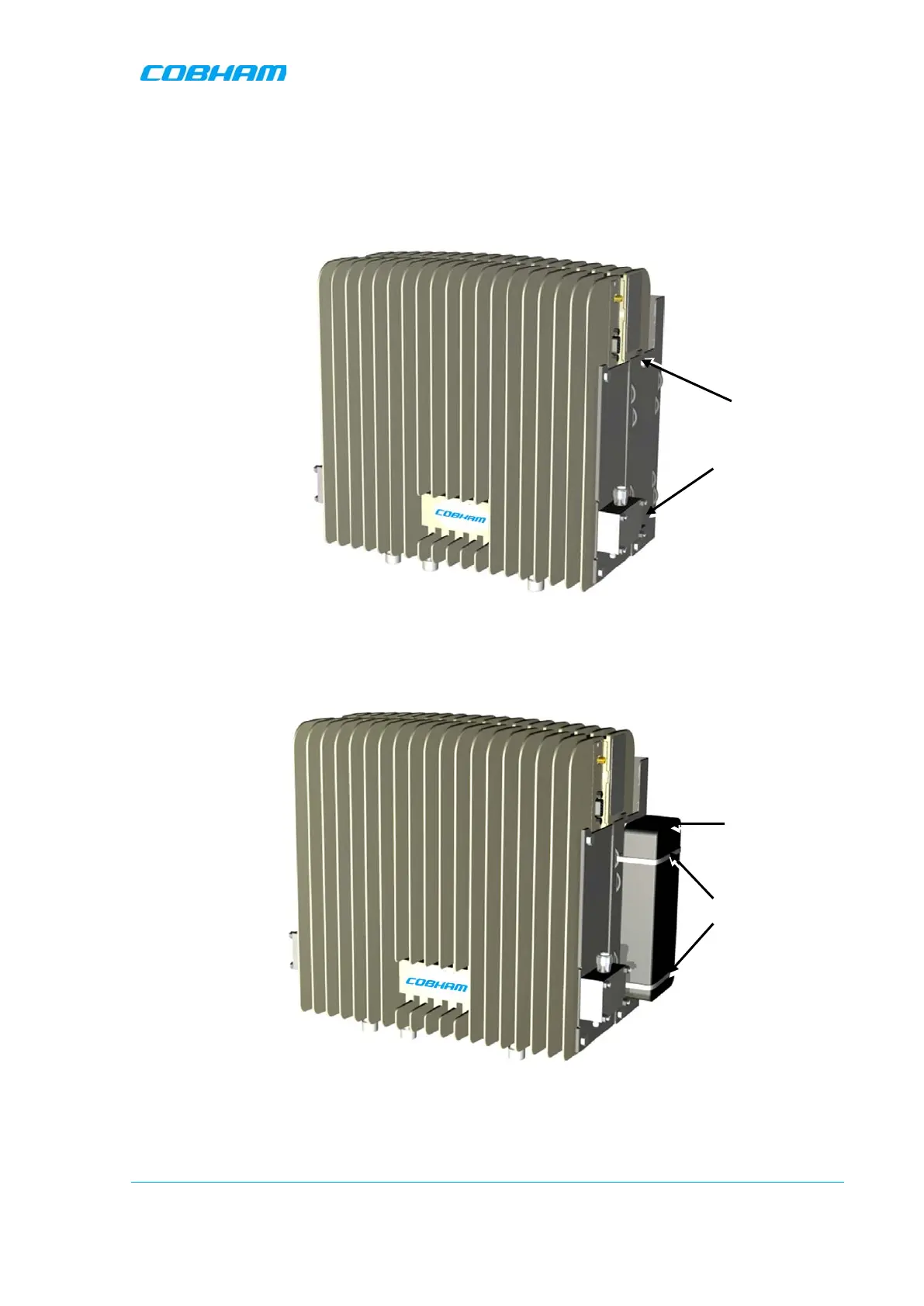

Figure 4-18. Insert Ties for Securing Power Supply
• Fit Power Supplies on ridge(s) on side of wallbracket.
• Secure the ties.
,
Figure 4-19. Secure Power Supply
through loops (1x on
bottom and 1x on top)
AC/DC
Converter PS
