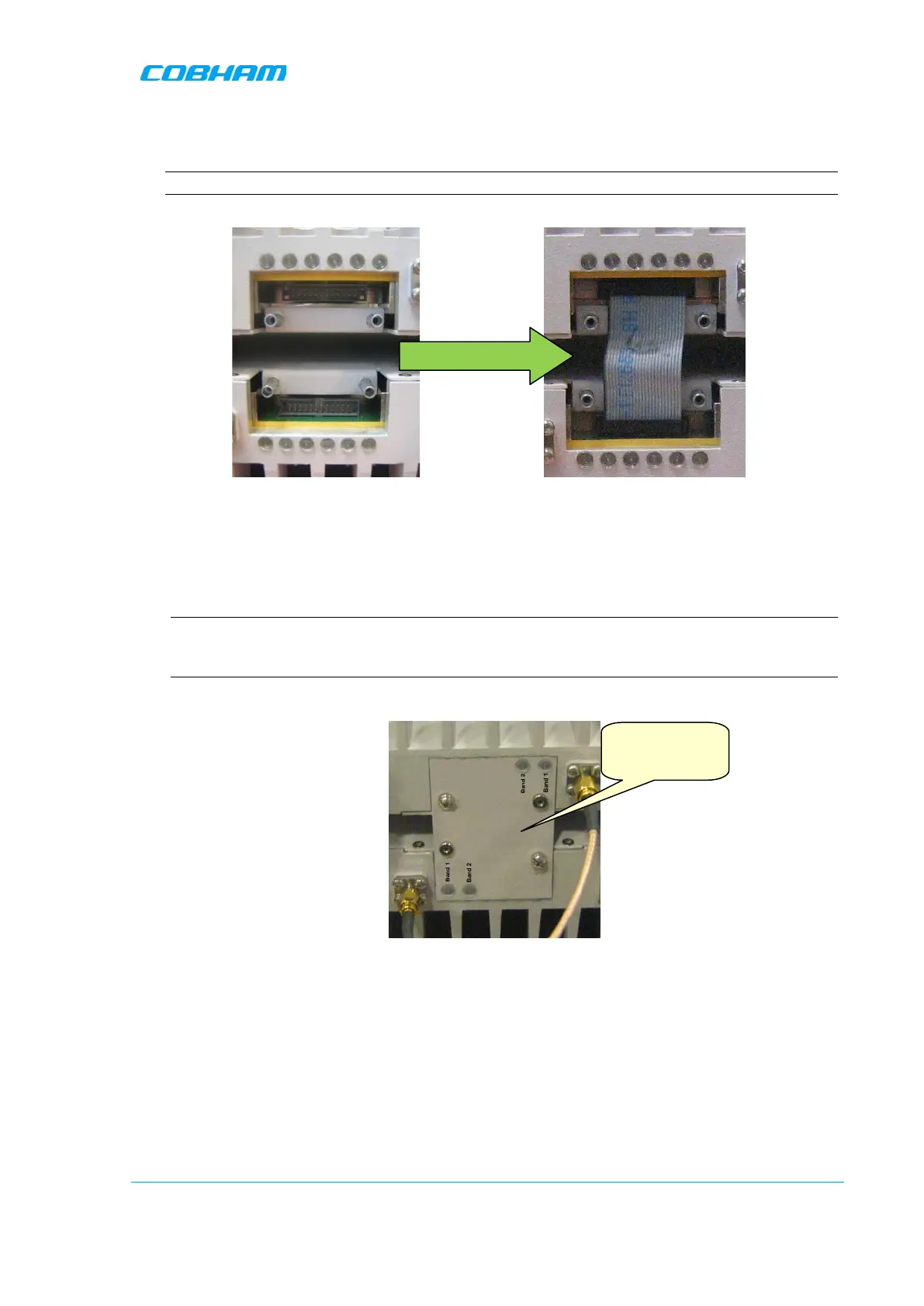

7. Carefully, connect the supplied flat cable between the two connectors as shown below.
Verify that the flat-cable is securely connected.
NOTE: Handle Flat Cable with care when connecting.
Figure 4-10. Interconnecting Flat cable
8. Referring to the following sections, choose the appropriate COVER PLATE and LABEL according
to the type of unit combination that comprises the quad-band assembly section
4.5.2.
9. Cover the flat-cable with the appropriate Flat Cable Cover Plate and secure using the four
screws.
NOTE: All labels refer to Band-1 and Band-2. The band frequencies for each repeater are
located on a sticker on the SIDE of the repeater. (e.g for DIGImini 900/2100, “Band 1” is 900
and “Band 2” is 2100).
Figure 4-11. Assembling Interconnecting Cover Plate
cable
