Mechanical “stay-clear” area, EXPLORER 8120
WARNING! Stay clear of the antenna when it is powered! The antenna
dish can move quickly across a large area, and can cause injury to persons
close to the antenna. When the antenna is powered, make sure nobody
gets closer than the limits of the “Stay-clear area” shown below.

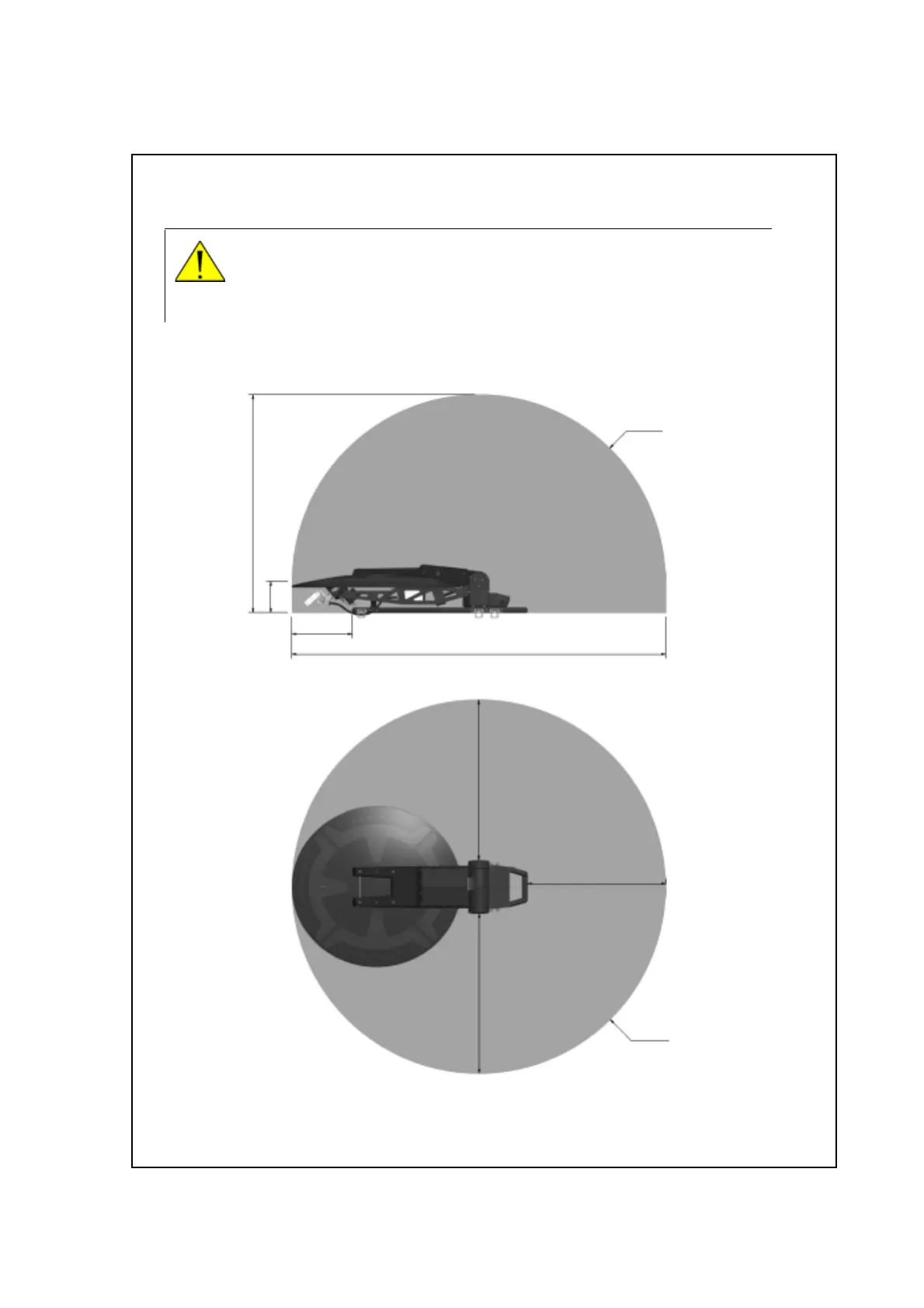

Figure 4: Stay-clear area for the EXPLORER 8120 antenna
Antenna clearance space
Antenna clearance space
Ø2800
[110.2]
[17.8]
453
1035
[40.7]
Ø2800
[110.2]
233
1633
1199
[47.2]
[64.3]
[9.2]
Measures are in millimeter
[inches in brackets]. Add a
little extra security margin.
R1400
[55.1]
1199
[47.2]
