Keypad and display menus
98-145510-E Chapter 6: Setup and operation 6-27
6.2 Keypad and display menus
6.2.1 Keypad and display
With the display menu you can do basic operations such as deploy, stow and stop the
antenna or apply the service function. You can also select which satellite profile to use.
In the menu system you can also see how the system has been configured. To configure
the system, use a connected PC and the web interface.
1. Current status of the VSAT system (examples):
NOT READY: NOT DEPLOYED
TRACKING
ANTENNA SW UPLOAD
ANTENNA POST (Power-On Self Test)
READY (waiting for data from the modem or no satellite profile selected)
SAFE MODE (used e.g. for software recovery)
2. Current menu, see The menu tree on page 6-29.
3. NAV: Navigational information
First letter: G (Valid position signal received from the GNSS module) or g (No valid GNSS
fix)
Second letter: H (Valid heading data) or h (No valid heading data).
4. LAN: LAN connectors used, 1, 2, 3, 4, 5, –.
5. SAT: Longitude, satellite position of the currently active satellite profile.
6. RX:
1 (RX Lock, - or 1),
L (RX polarization of currently active satellite profile: L (left-hand), R (right-hand), H
(Horizontal) or V (Vertical)).
7. RF tracking frequency in GHz and LNB LO Frequency.
8. TX: <TX mute> <Modem TX> <ODU TX> <TX pol>
• <TX mute> = [U,u] (Muted by external signal on User I/O connector: U (unmuted) or
u (muted).
• <Modem TX> = [m,M], M (valid TX signal on modem) or m (no valid TX signal on
modem)
• <ODU TX> = [a,A] A (valid TX signal on antenna) or a (no valid TX signal on antenna)

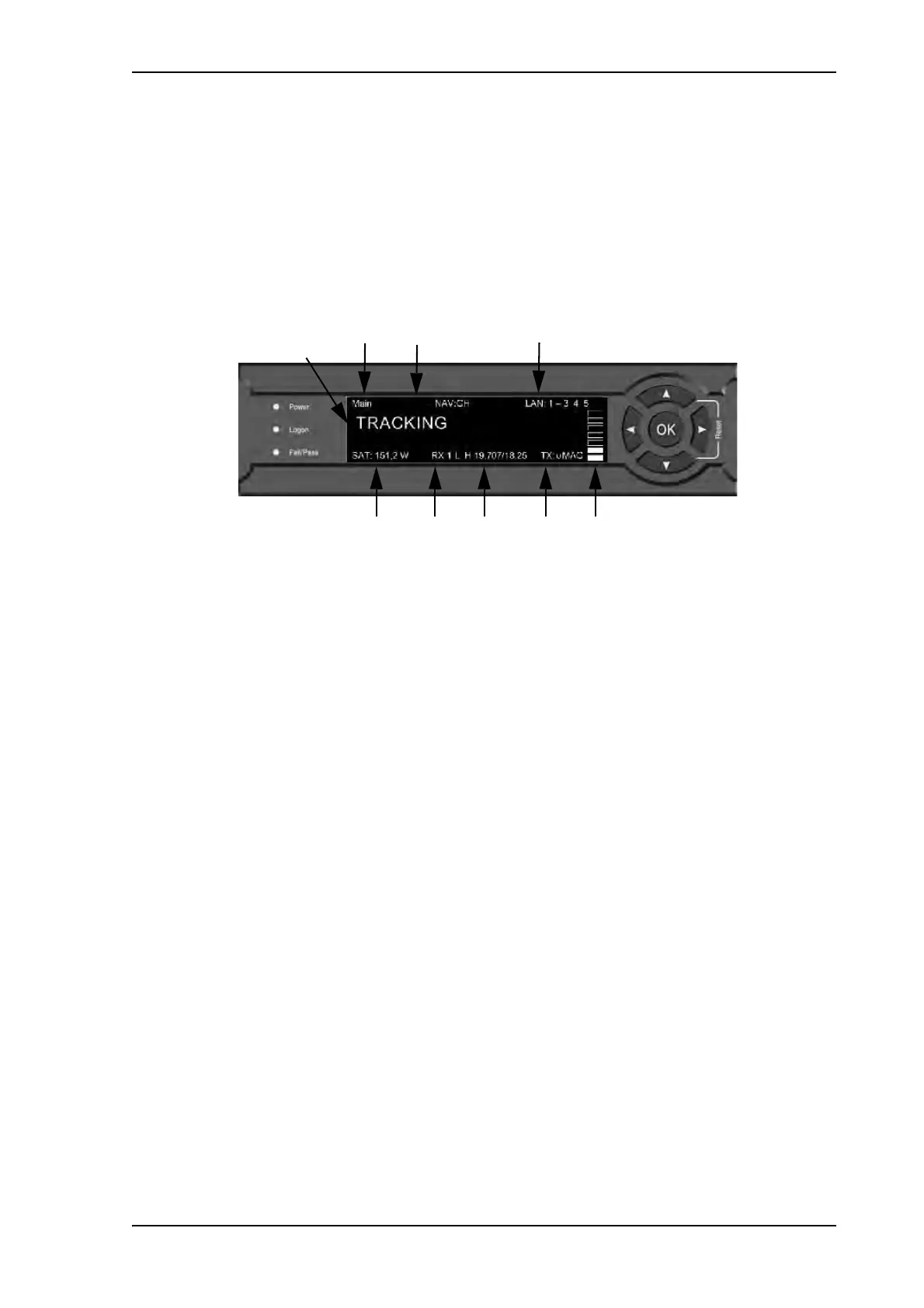

Figure 16: Display and keypad of the ACU (example)
5 6 7 8 Signal strength
1 2 3 4
