COBHAM SAILOR XTR GX-R2 User Manual

SAILOR XTR GX-R2 system
98-175666-C Chapter 1: Introduction 1-4

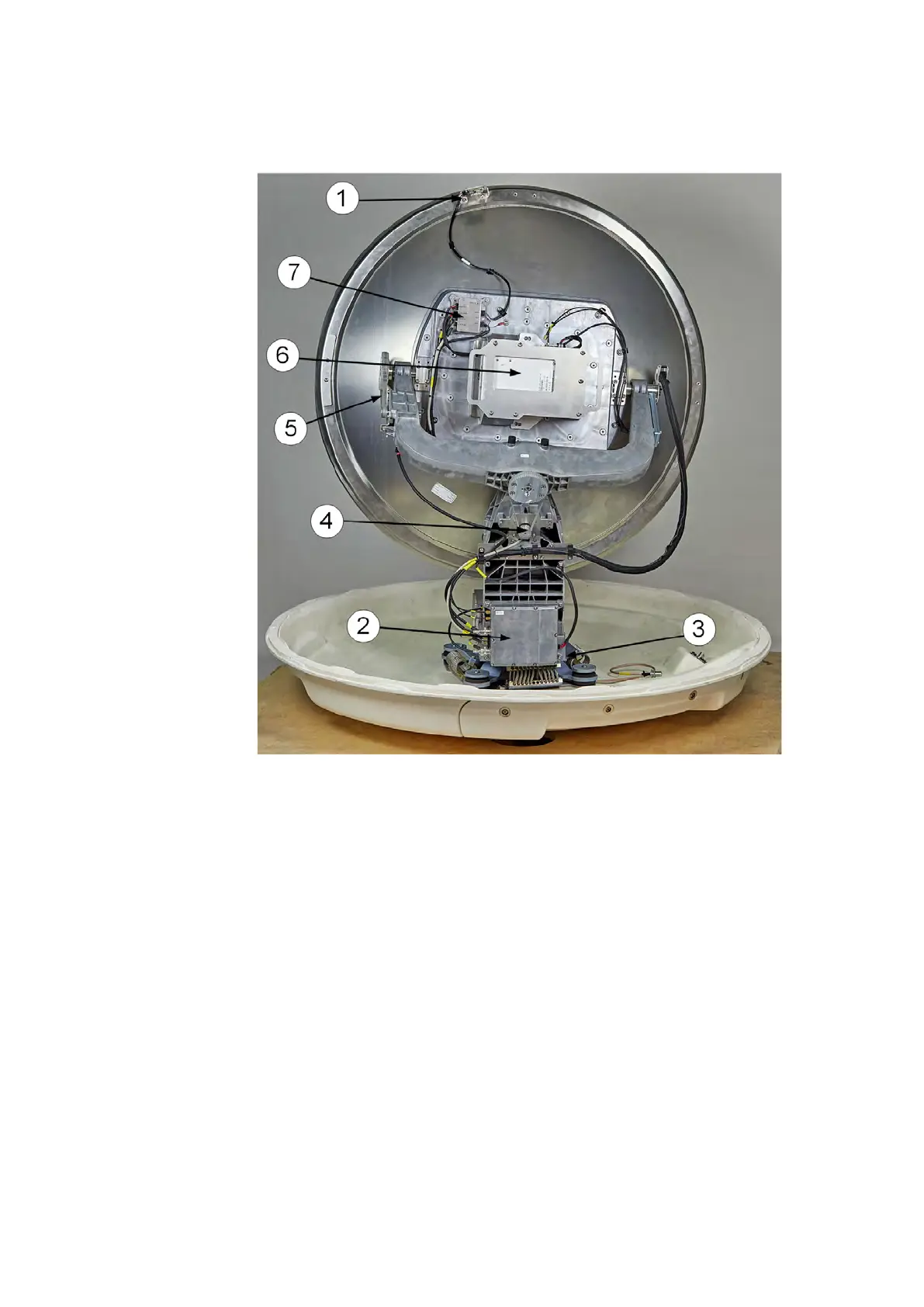

Modules in the ADU (SAILOR 1000 XTR GX-R2)
1. GNSS module (GPS, GLONASS, BEIDOU).
2. XTR Antenna Control Module (ACM).
3. ADU power on/off.
4. Cross elevation motor.
5. Elevation motor.
6. GX-R2 Ka-band transceiver
7. Inertial Sensor Module (ISM).
Figure 1-3: SAILOR 1000 XTR GX-R2 ADU modules 1/2
