SAILOR XTR GX-R2 system
98-175666-C Chapter 1: Introduction 1-5
8. Azimuth motor.
9. Azimuth zero reference module.
10. Rotary joint.
11. Feed horn.

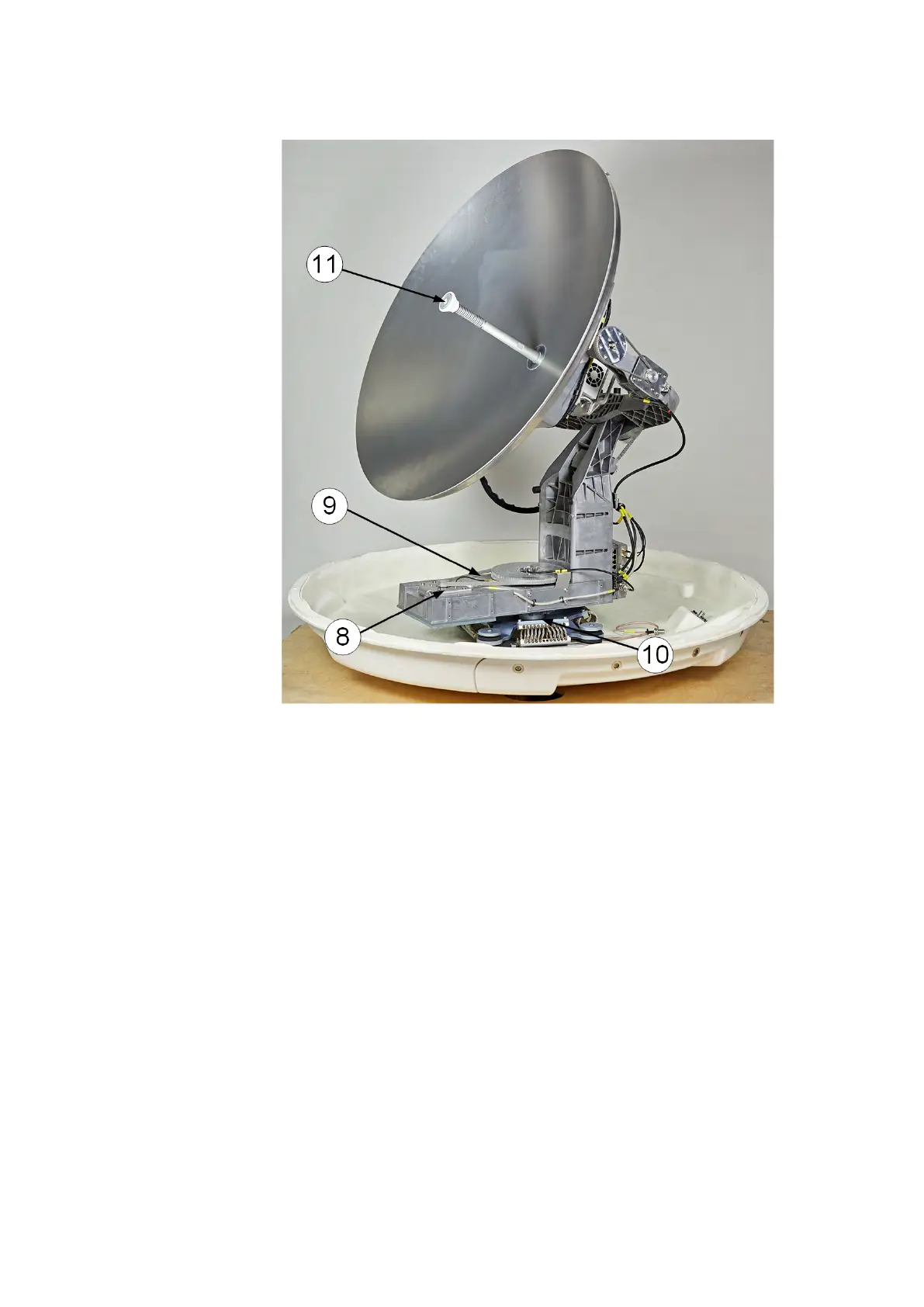

Figure 1-4: SAILOR 1000 XTR GX-R2: ADU modules 2/2
